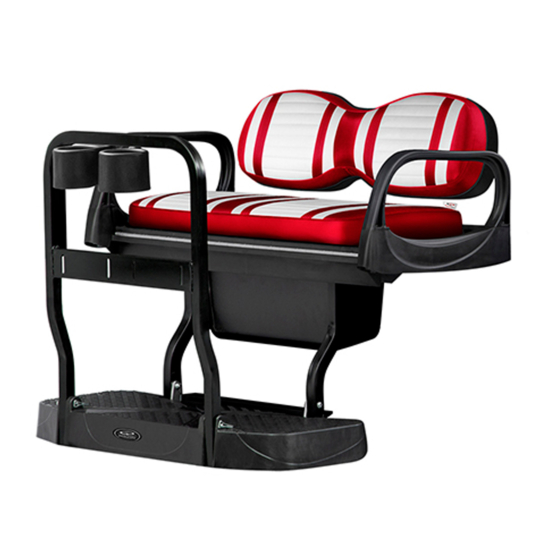

Multi-function rear seat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Chair Holder
Easy Access Steps
1:1

CAR PREPARATION

Remove the following items to prepare the car for Rear Seat Kit Installation:
• Top
• Top Supports/Drain Tubes
• Bench Back Cushion
• Bag Rack Assembly
NOTE: Save and separate factory hardware for later use.
CAT-4: Max5 Rear Seat Kit / May 18, 2018

OPTIONAL MAX 5 ACCESSORIES

Sold Separately
Drop-in Cargo Bed
DO NOT PUSH OR FORCE THE LID PAST 90° BEFORE SEAT BASE & SEAT BACK CUSHION ARE INSTALLED ON THE CAR
• If you are installing a Storage Bin and decide to release the Storage Lid from the Seat Base before installing the
Seat Base and Seat Back Cushion onto the Car, do not try to open the Lid past 90°. Doing so may place too much
stress on the Lid Hinge possibly causing failure.
• Once the Seat Base and Seat Back Cushion are installed on the Car, the Seat Back Cushion acts as a stop for the
Lid protecting the Lid Hinge from hyper-extension.
• As a precaution, we recommend installing the Storage Lid Latch only after the Seat is fully installed on the Car.
SECTION 1
P R E PA R E C A R F O R I N S TA L L AT I O N
TM
MULTI–FUNCTION REAR SEAT

MAX 5 SEAT INSTALLATION

TABLE OF CONTENTS:

Section 1 - Prepare Car for Installation
Section 2 - Seat Back Support Installation
Section 3 - Armrest Installation
Section 4 - Footrest Supports and Bumper Angle Installation
Section 5 - Rear Seat Mounting
Section 6 - Cushion Installation
Section 7 - Footrest, Safety Bar and Cup Holders Installation
IMPORTANT: Do not fully tighten hardware until instructed.
Read through all instructions before beginning installation.
Soft Cargo Carrier
SCALE HARDWARE GUIDE
Supplied hardware has been illustrated at a 1:1 scale for the
ability to verify required lengths quickly and easily. Simply place
the hardware on top of the illustration to ensure you are using
the correct item and measurement.
www.DoubleTakeGolfCar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DoubleTake MAX 5

Summary of Contents for DoubleTake MAX 5

  • Page 1 MULTI–FUNCTION REAR SEAT MAX 5 SEAT INSTALLATION TABLE OF CONTENTS: Section 1 - Prepare Car for Installation Section 2 - Seat Back Support Installation Section 3 - Armrest Installation Section 4 - Footrest Supports and Bumper Angle Installation Section 5 - Rear Seat Mounting...
  • Page 2 SECTION 2 S E AT B A C K S U P P O R T I N S TA L L AT I O N POSITION AND INSTALL SEAT BACK SUPPORTS NOTE: Fully tighten Bolts. Front of Car Front of Car CLUB CAR DS CLUB CAR PRECEDENT HW BAG: RSK SBS HW DS...
  • Page 3 Square Nut 1/4” X 1-3/4” Threaded Stud 1/4” X 2-1/2” Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer HW BAG: MAX5 ARMREST HW 1/4” Flat Washer - 1/4” Nylock Nut CAT-4: Max 5 Rear Seat Kit - 3...
  • Page 4 SECTION 4 F O O T R E S T S U P P O R T S A N D B U M P E R A N G L E I N S TA L L AT I O N POSITION SEAT BASE Place bottom side up for assembly.
  • Page 5 1/4” X 2” Hex Bolt - 1/4” Flat Washer YAMAHA DRIVE HW BAG: MAX5 BKT HW DRV HW BAG (DRIVE 2): MAX5 BKT HW D17 1/4” X 1-1/4” Hex Bolt - 1/4” Flat Washer (x2) - 1/4” Nyloc Nut CAT-4: Max 5 Rear Seat Kit - 5...
  • Page 6 SECTION 5 R E A R S E AT M O U N T I N G ATTACH REAR SEAT KIT TO SEAT BACK SUPPORTS Flip Rear Seat Base over and attach to Seat Back Supports. NOTE: Do not fully tighten until Bumper Angle is attached in next step. CLUB CAR DS CLUB CAR PRECEDENT HW BAG: MAX5 BKT HW DS...
  • Page 7 3/8” X 1-1/4” Hex Bolt - 3/8” Flat Washer 1/4” X 2-1/2” Hex Bolt - 1/4” Flat Washer (x2) - Spacer Square - 1/4” Nylock Nut M6 x 30mm Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer CAT-4: Max 5 Rear Seat Kit - 7...
  • Page 8 SECTION 6 C U S H I O N I N S TA L L AT I O N SEAT BOTTOM CUSHION INSTALLATION Insert Temporary Stud (S) into the 2/1 Seat Bottom Cushion then slip the Angle Seat Bottom Plastic upright to 90° and insert 2/1 Seat Bottom 2/1 Strap (T) over the Temporary Stud as shown below.
  • Page 9 5/16” X 3” Hex Bolt - 5/16” Flat Washer (x2) - 5/16” Nyloc Nut ONLY INSTALL TO LOCK FOLDING SAFETY BAR FUNCTION (CC) (CC) OPTIONAL 1/4” X 1-1/4” Hex Bolt - 1/4” Lock Washer - 1/4” Flat Washer FOOTREST BOTTOM CAT-4: Max 5 Rear Seat Kit - 9...
  • Page 10 GOLF BAG HOLDER O P T I O N A L A C C E S S O R Y ( S o l d S e p a r a t e l y ) CUP HOLDER INSTALLATION NOTE: Fully tighten Hardware. Club Car Precedent Only (DD)
  • Page 11 NOTE: Fully tighten Hardware. self-tapping Screws thru all holes in Bin into the Seat Base. (II) (II) Drain Hole (HH) Screw Bin Ridge SEAT HINGE SEAT BASE Screw Hole TOP VIEW – SEAT HINGE CAT-4: Max 5 Rear Seat Kit - 11...
  • Page 12 TRAILER HITCH O P T I O N A L A C C E S S O R Y ( S o l d S e p a r a t e l y ) INSTALL HITCH RECEIVER ATTACH HITCH TO RECEIVER Remove Nuts and Washers from the Bolts in the center of the Footrest.
