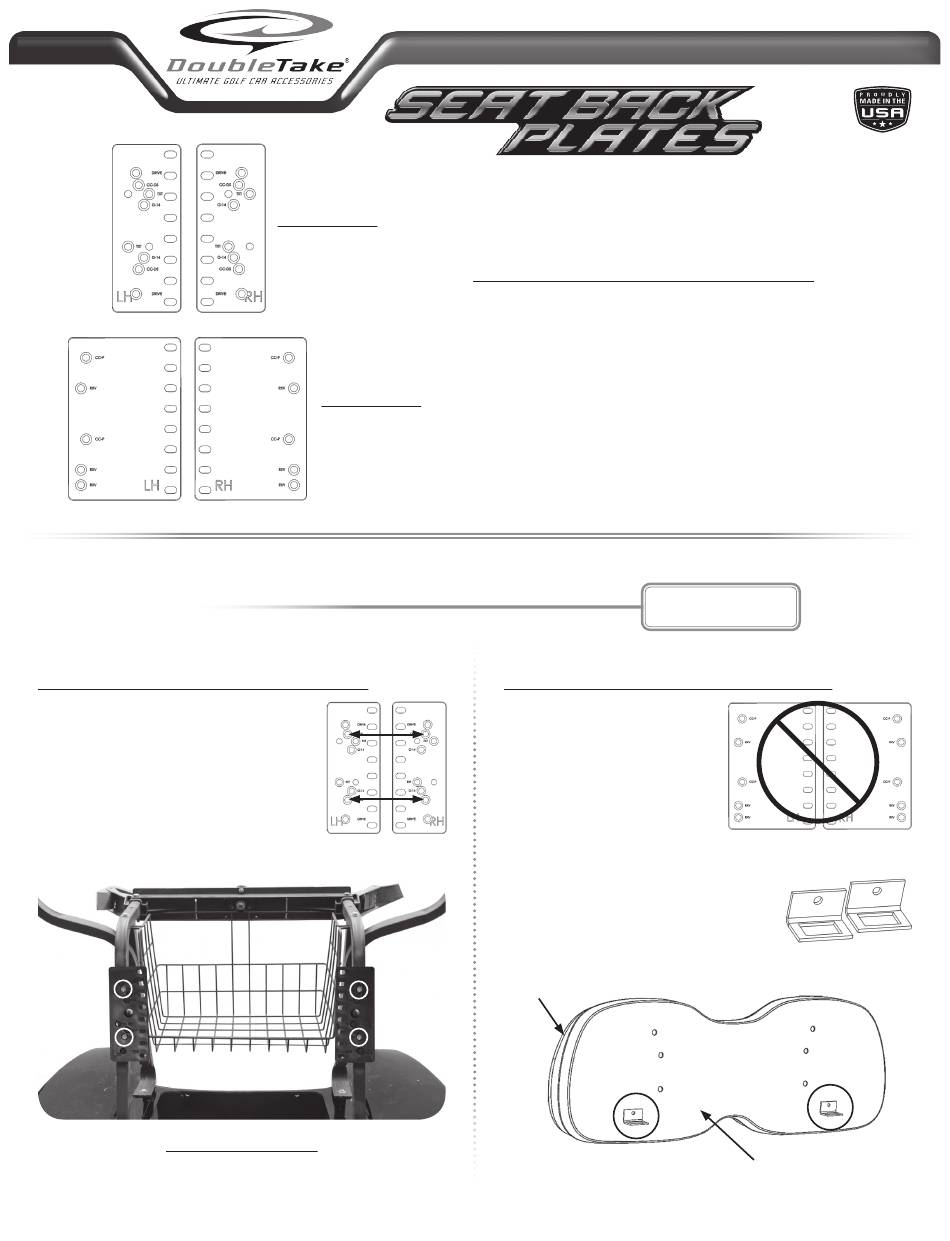

DoubleTake SeatBack Plates Installation Instructions

Advertisement

Quick Links

Club Car DS 2000+: 2-Passenger Factory Supports

Attach the Seat Back Plates to the Seat Back
Supports using a 1/4" x 1-3/4" FHP Bolt, a 1/4" Flat
Washer (back), and a 1/4" Nyloc Nut (2x both sides
– through holes marked CC-DS).
NOTE: Fully tighten Bolts.
PROCEED TO SECTION 3
CAT-3: Universal Seat Back Plates / December 18, 2014 / Manufactured By Custom Golf Car Supply, Inc.
PROVIDES HEIGHT ADJUSTMENT FOR SEAT BACK CUSHIONS
IMPORTANT: Do not fully tighten hardware until instructed.
UNIV SPL-1 KIT
Club Car DS 2000+ (C2)
EZGO TXT (TX)
Yamaha Drive
UNIV SPL-2 KIT
Club Car Precedent (PD)
EZGO RXV (RX)
NOTE: For Star
mounting, see pg 4.
SECTION 1
2 - P A S S E N G E R P L A T E I N S T A L L A T I O N
Club Car DS
Read through all instructions before beginning installation.
SEAT BACK PLATES INSTALLATION
TABLE OF CONTENTS:

Section 1 - 2-Passenger Plate Installation (For Star see pg 4)

PREPARE CAR FOR INSTALLATION:

• 2P: Remove Factory Cushions
• 4P: Remove Top, Rear Frames and Seat Back Support/Sweater Basket
Assembly. Install DoubleTake
NOTE: Save original Hardware for later use.
For 4-Passenger installation,

Club Car Precedent: 2-Passenger Factory Supports

NOTE: The Seat Back Plates DO NOT
WORK with Precedent Factory Seat
Back Supports.
DoubleTake
(Factory Seat Back Supports)
Install Mounting Clips to the cushion back
where indicated (A). Mount Seat Back Cushion
to factory seat back supports the same way
the factory cushion mounts.
NOTE: Fully tighten Bolts.
Cushion
Rear Seat Kit.
®
skip to Section 2
Seat Back Cushion Install
®
Precedent Mounting Clips
(A)
(A)
Seat Back
Plastic
