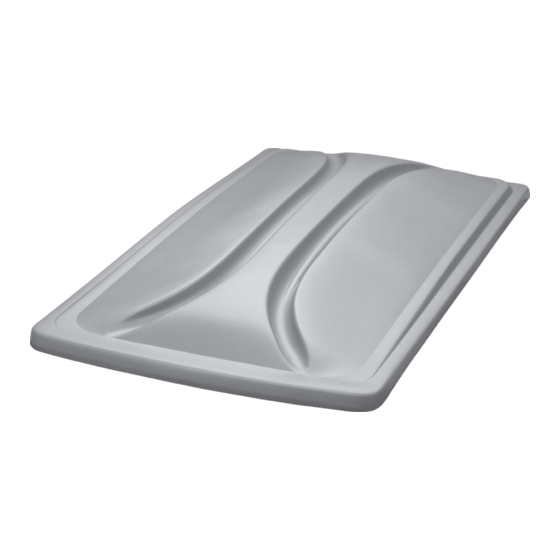

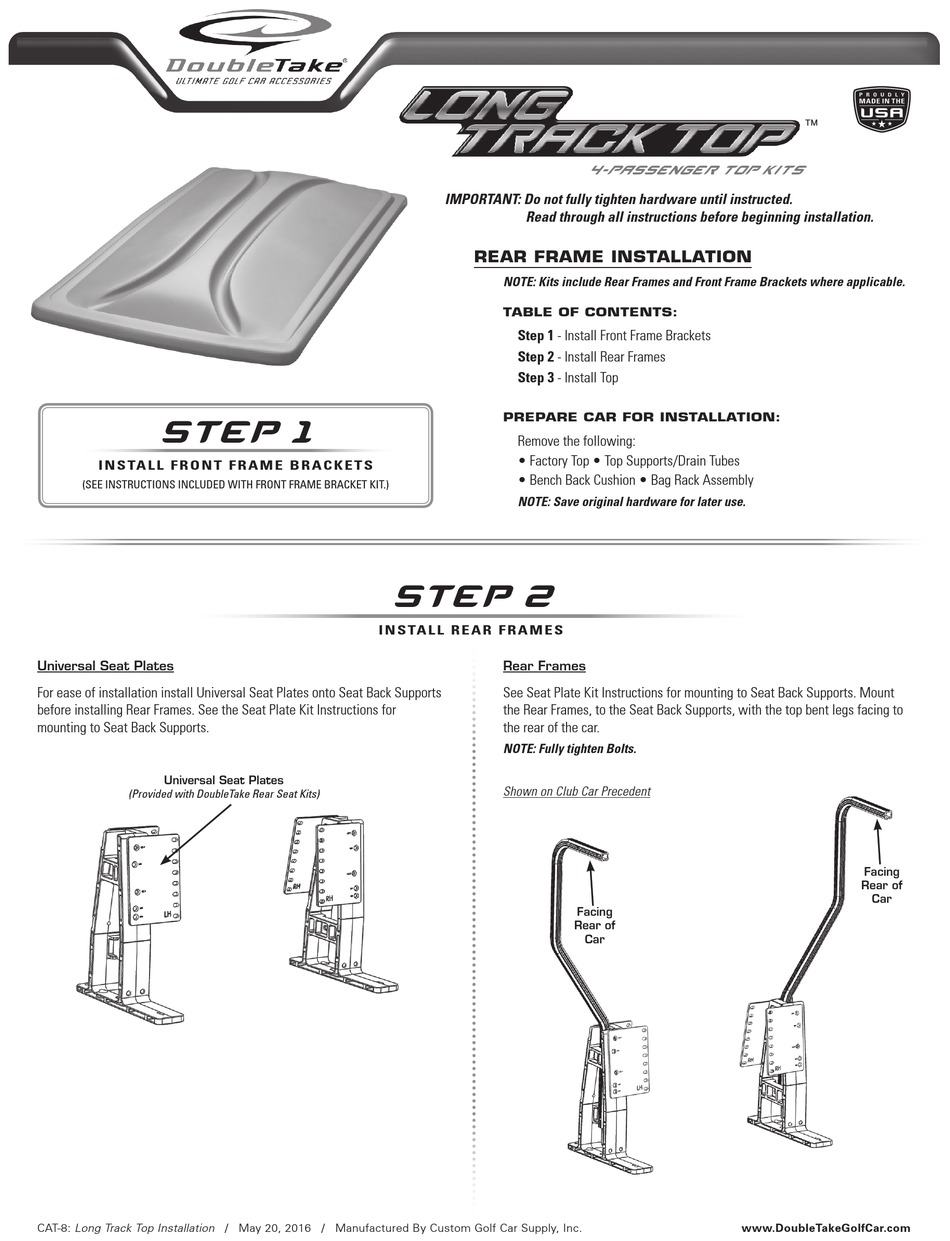

DoubleTake LONG TRACK TOP Installation

STEP 1
I N S TA L L F R O N T F R A M E B R A C K E T S
(SEE INSTRUCTIONS INCLUDED WITH FRONT FRAME BRACKET KIT.)
Universal Seat Plates
For ease of installation install Universal Seat Plates onto Seat Back Supports
before installing Rear Frames. See the Seat Plate Kit Instructions for
mounting to Seat Back Supports.
Universal Seat Plates
(Provided with DoubleTake Rear Seat Kits)
CAT-8: Long Track Top Installation / May 20, 2016 / Manufactured By Custom Golf Car Supply, Inc.
IMPORTANT: Do not fully tighten hardware until instructed.
Read through all instructions before beginning installation.
REAR FRAME INSTALLATION
NOTE: Kits include Rear Frames and Front Frame Brackets where applicable.
TABLE OF CONTENTS:
Step 1 - Install Front Frame Brackets
Step 2 - Install Rear Frames
Step 3 - Install Top
PREPARE CAR FOR INSTALLATION:
Remove the following:
• Factory Top • Top Supports/Drain Tubes
• Bench Back Cushion • Bag Rack Assembly
NOTE: Save original hardware for later use.
STEP 2
I N S TA L L R E A R F R A M E S
Rear Frames
See Seat Plate Kit Instructions for mounting to Seat Back Supports. Mount
the Rear Frames, to the Seat Back Supports, with the top bent legs facing to
the rear of the car.
NOTE: Fully tighten Bolts.
Shown on Club Car Precedent
4–PASSENGER TOP KITS
Facing
Rear of
Car
www.DoubleTakeGolfCar.com
TM
Facing
Rear of
Car
