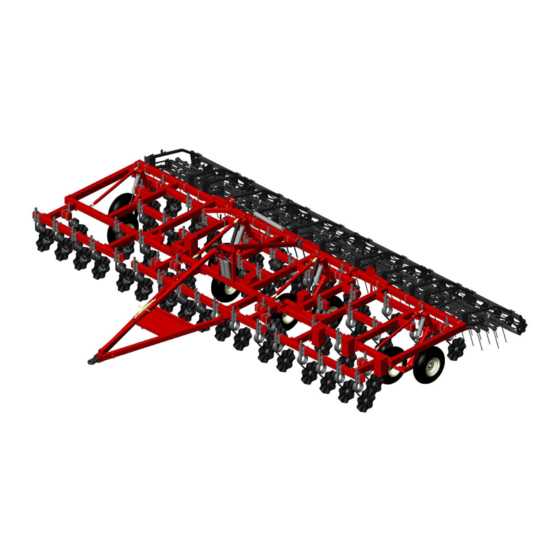

  • Page 1 TILLAGE ALFOR SPECIALISTS 570 SERIES ASSEMBLY MANUAL 13, 24, 27, 30, 41ft.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Torque Recommendations & U-bolt Instructions.......... 1 General Safety Precautions ................. 2 Safety Decal Locations................4 Frame Frame Assembly ..................6 Wing Fold Cylinder Installation..............8 Fifth Bar Installation.................. 10 Self leveling & Depth Control Installation ........... 12 Tongue installation ..................
  • Page 4 Return To Contents...
  • Page 5 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 08-2007 Salford Farm Machinery Ltd. Page 1...

  • Page 6: General Safety Precautions

    NOTE: Indicates points of particular interest for more efficient and convenient repair or operation. A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST AN ACCIDENT ! Page 2 Salford Farm Machinery Ltd. 08-2007...
  • Page 7 • Maintain proper hydraulic fluid levels. • Keep all connectors clean for positive connections. • Ensure all fittings and hoses are in good condition. • Do not stand under wings. General O 08-2007 Salford Farm Machinery Ltd. Page 3...
  • Page 8 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 4 Salford Farm Machinery Ltd. 08-2007...
  • Page 9 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SAFETY DECAL INSTALLATION (1) “SALFORD” large – GD100 Place on frame tubes as shown Quantity – 12 (5) “WARNING” GD110 Main front beam at corner Quantity – 2 (2) “www.salfordmachine.com” GD102 Place on tongue Quantity –...
  • Page 10 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 6 Salford Farm Machinery Ltd. 08-2007...
  • Page 11 MAKE SURE GREASE NIPPLE IS IN PLACE AND WILL ACCEPT GREASE. 1-SECURE FRAMES AT LEAST 39 inches OFF THE GROUND 2-ALIGN PIN HOLES, INSERT PIN #1 (1 1/2 X 7 1/2" WITH PLATE) 3- FASTEN WITH 5/8X1-1/2" BOLT AND LOCKWASHER. 08-2007 Salford Farm Machinery Ltd. Page 7...
  • Page 12 WASHERS OUTSIDE OF PLATE TO KEEP PIN FROM SLIDING ELBOW FITTING ON ROD END MUST OUT OF SLOT FACE TOWARD THE BUTT. DO NOT PIN THE RODS UNTIL THE SYSTEM HAS BEEN PURGED OF AIR Page 8 Salford Farm Machinery Ltd. 08-2007...
  • Page 13 !!!DO NOT PIN THE RODS UNTIL YOU HAVE PURGED AIR FROM THE FOLDING SYSTEM. SEE THE HYDRAULIC SECTION FOR INSTRUCTION ON THIS. WHEN TIME TO PIN THE RODS, DO NOT FORGET THE WASHERS. THE PINS CAN SLIDE OUT OF THE SLOTTED HOLES OTHERWISE!!! 08-2007 Salford Farm Machinery Ltd. Page 9...
  • Page 14 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 5TH BAR ONLY FOR 41' MODELS Page 10 Salford Farm Machinery Ltd. 08-2007...
  • Page 15 19" 37" 150" 150" 150" 16" 51 3/4" 19" 19" 19" 18" 16" 18" 18" 45 3/4" 46 3/4" 45 3/4" 39" 18" 18" 17" 60" 24" 135" 80" 52" 51" 65" 100" 08-2007 Salford Farm Machinery Ltd. Page 11...
  • Page 16 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL THE WASHER OF THE DEPTH CONTROL ROD (#21) SHARES THE CYLINDER ROD PIN POPPET OUTLET OUTLET INLET Page 12 Salford Farm Machinery Ltd. 08-2007...
  • Page 17 7. Bolt on (#17) the stroke control valve as shown with the inlet port down, and the "poppet" up. Leave the plastic plugs in the valve for now to keep out dirt. 8. Pin (#13) the tripod brace as shown, with 2 bolts down and 1 up. 08-2007 Salford Farm Machinery Ltd. Page 13...

  • Page 18: Tongue Installation

    Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL TONGUE INSTALLATION Page 14 Salford Farm Machinery Ltd. 08-2007...
  • Page 19 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL TONGUE INSTALLATION 08-2007 Salford Farm Machinery Ltd. Page 15...
  • Page 20 *11L X 15FL TIRES 'HIGHWAY SERVICE' LOAD RANGE 'F' HUB TERMINOLOGY PIVOT WHEEL WING AXLE *HSR3208 CYLINDER *5000LB PIVOT HUB IMPORTANT: *4000LB WHEEL HUBS THREAD-LOCK ON *11L X 15SL TIRES LUGNUTS LOAD RANGE 'D' Page 16 Salford Farm Machinery Ltd. 08-2007...
  • Page 21 'HIGHWAY SERVICE' LOAD RANGE 'F' HUB TERMINOLOGY WHEEL HUB PIVOT HUB WING AXLE IMPORTANT: *HSR3708 CYLINDER THREAD-LOCK ON *5000LB PIVOT HUB LUGNUTS *4000LB WHEEL HUBS *11L X 15SL TIRES 6-BOLT LOAD RANGE 'D' 08-2007 Salford Farm Machinery Ltd. Page 17...
  • Page 22 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 18 Salford Farm Machinery Ltd. 08-2007...

  • Page 23: Lb Hub & Spindle Assembly

    (25). It locks with a #9 hairpin. 5. Install Hub and Spindle assemblies (28) into axles and retain with 5/8" x 3" hexbolts and 5/8" locknuts. Components are greased when shipped. 08-2007 Salford Farm Machinery Ltd. Page 19...
  • Page 24 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 20 Salford Farm Machinery Ltd. 08-2007...
  • Page 25 1" x 4 1/4" with a ring handle (28). It locks with a #9 hairpin. 5. Install Hub and Spindle assemblies (3) into axles and retain with 5/8" x 4" hex bolts and 5/8" locknuts. Components are greased when shipped. 08-2007 Salford Farm Machinery Ltd. Page 21...
  • Page 26 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 8000 LB TANDEM AXLE ASSEMBLY USED ON 24, 27 & 30ft MACHINE MAINFRAME Page 22 Salford Farm Machinery Ltd. 08-2007...
  • Page 27 GBB125100075 1 1/4" x 1" x 3/4" LG. HARD BUSHING GBB175150200 1 3/4" x 1 1/2" x 2" LG. HARD BUSHING GW8111 8000LB BEARING KIT FOR TANDEM *see Hub&Spindle pages for further breakdown. FRONT RH AXLE LH AXLE ASSEMBLY ASSEMBLY 08-2007 Salford Farm Machinery Ltd. Page 23...
  • Page 28 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 24 Salford Farm Machinery Ltd. 08-2007...
  • Page 29 GBB125100075 1 1/4" x 1" x 3/4" LG. HARD BUSHING GBB175150200 1 3/4" x 1 1/2" x 2" LG. HARD BUSHING GW9111 10000 LB BEARING KIT FOR TANDEM FRONT RH AXLE LH AXLE ASSEMBLY ASSEMBLY 08-2007 Salford Farm Machinery Ltd. Page 25...
  • Page 30 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL WING TANDEM AXLE INSTALLATION INITIAL SETTING OF 54" FROM PIN TO PIN. LH SHOWN IMPORTANT: USE THREAD-LOCK ON WHEEL BOLTS SINGLE AXLE APPLICATIONS Page 26 Salford Farm Machinery Ltd. 08-2007...
  • Page 31 4. Insert removeable 4000 lb hub and spindle assemblies into axles and retain with 1/2" x 3 1/2" hex bolts and 1/2" locknuts. Salford uses hard press-in bushings to reduce permanent wear. At a time that the bushings are to be replaced, hammer out old bushings taking care not to scar the frame.
  • Page 32 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 5000 LB TANDEM AXLE ASSEMBLY Page 28 Salford Farm Machinery Ltd. 08-2007...
  • Page 33 GBB125100075 1 1/4" x 1" x 3/4" LG. HARD BUSHING GW5110V 5000 LB V-SEAL KIT GW5111V 5000 LB BEARING WITH V-SEAL KIT *SEE HUB & SPINDLE PAGES FOR FURTHER BREAKDOWN FRONT LH AXLE RH AXLE ASSEMBLY ASSEMBLY 08-2007 Salford Farm Machinery Ltd. Page 29...
  • Page 34 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 30 Salford Farm Machinery Ltd. 08-2007...
  • Page 35 GW5000B 5000 LB HUB WITH BEARINGS, SEAL, & DUST CAP GW5000B 5000 LB HUB WITH BEARINGS, SEAL, & DUST CAP Complete assembly available as part number GW5000A (includes hub, spindle, bearings, seals, dust cap, and hardware). 08-2007 Salford Farm Machinery Ltd. Page 31...
  • Page 36 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 32 Salford Farm Machinery Ltd. 08-2007...
  • Page 37 GW4110V 4000 LB V-SEAL KIT GW4111V 4000 LB BEARING WITH V-SEAL KIT GW4111V 4000 LB BEARING WITH V-SEAL KIT Complete assembly available as part number GW4000A (includes hub, spindle, bearings, seals, dust cap, and hardware). 08-2007 Salford Farm Machinery Ltd. Page 33...
  • Page 38 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 34 Salford Farm Machinery Ltd. 08-2007...
  • Page 39 Entire assembly available as part number GW8000A (includes hub, spindle, bearings, seal, dust cap, and hardware). 8000 lb hub with 14" spindle is used on all machines EXCEPT 9700. For 9700 use 8000 lb hub with 15" spindle (part number GW8000A15). 08-2007 Salford Farm Machinery Ltd. Page 35...
  • Page 40 (crimp type) Nylon locknuts are too long and will not engage. When substituting optional drop mount (#2), be sure to follow coulter layout with regard to where non-swivel coulters are located. Page 36 Salford Farm Machinery Ltd. 08-2007...
  • Page 41 1/2" x 3" HEX BOLT BN08S 1/2"-13NC STOVER LOCK NUT B0825 1/2" x 2 1/2" HEX BOLT B0840 1/2" x 4" HEX BOLT BN08L 1/2" NYLOCK NUT NC See follow page for hub break-down. 08-2007 Salford Farm Machinery Ltd. Page 37...
  • Page 42 570 RTS PARTS AND ASSEMBLY MANUAL Return To Contents COIL-TECH C90101 EXPLODED VIEW Page 38 Salford Farm Machinery Ltd. 08-2007...
  • Page 43 COIL-TECH COULTER BEARING, V-SEAL AND SPACER KIT C9111VA - V-SEAL KIT TIGHTEN SPINDLE NUT TO 70ft-Lbs DO NOT BACK OFF AFTER TIGHTENING C90020 - COIL-TECH BEARINGS, V-SEAL AND SPACER KIT. C91115 - BEARING KIT (COIL TECH) Page 39 Salford Farm Machinery Ltd. 08-2007...
  • Page 44 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL HARROW SETUP Page 40 Salford Farm Machinery Ltd. 08-2007...

  • Page 45: Tine Performance Settings

    Here the rake angle is varied This set of holes is the 'standard' setting. 1" 1" 5/8" 3/4" FRONT Using this set of holes will vary the rake angle as shown above. 08-2007 Salford Farm Machinery Ltd. Page 41...
  • Page 46 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 42 Salford Farm Machinery Ltd. 08-2007...

  • Page 47: Arm Assembly

    R30006 PARALLEL LINKAGE ARM PARALLEL LINKAGE ARM R80099 R80099 HEAD,SALFORD HARROW FOR 5/8" UPPER PIVOT BOLT HEAD,SALFORD HARROW FOR 5/8" UPPER PIVOT BOLT R80100 R80100 62" HARROW ARM FOR 5/8" PIVOT AND U-BOLTS 62" HARROW ARM FOR 5/8" PIVOT AND U-BOLTS...
  • Page 48 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 44 Salford Farm Machinery Ltd. 08-2007...
  • Page 49 3/8"-16NC STOVER LOCK NUT B0635 3/8"NC x 3 1/2" LG. HEX BOLT R30015 LIGHT SAVER BRACKET B0630 3/8"NC x 3" HEX BOLT B0815 1/2" x 1 1/2" HEX BOLT GHP11 #11 HAIR PIN 08-2007 Salford Farm Machinery Ltd. Page 45...
  • Page 50 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 46 Salford Farm Machinery Ltd. 08-2007...
  • Page 51 5+5   52//(5 21/< 5+ 63,5$/ )25  5   75,3/( 6($/ %($5,1*  %2/7 )/$1*( 5 6&5$3(5 %5$&.(7 %)6  1& )/$7 62&.(7 +(; &$3 6&5(: %1/  1</2&. 187 1& 08-2007 Salford Farm Machinery Ltd. Page 47...
  • Page 52 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 13FT 570 RTS COULTER LAYOUT Page 48 Salford Farm Machinery Ltd. 08-2007...
  • Page 53 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 13FT 570 RTS HARROW LAYOUT 08-2007 Salford Farm Machinery Ltd. Page 49...
  • Page 54 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 24FT 570 RTS COULTER SPACING Page 50 Salford Farm Machinery Ltd. 08-2007...
  • Page 55 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 24ft 570 RTS HARROW LAYOUT 08-2007 Salford Farm Machinery Ltd. Page 51...
  • Page 56 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 27FT 570 RTS COULTER SPACING Page 52 Salford Farm Machinery Ltd. 08-2007...
  • Page 57 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 27ft 570 RTS HARROW LAYOUT 08-2007 Salford Farm Machinery Ltd. Page 53...
  • Page 58 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 30FT 570 RTS COULTER SPACING Page 54 Salford Farm Machinery Ltd. 08-2007...
  • Page 59 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 30ft 570 RTS HARROW LAYOUT 08-2007 Salford Farm Machinery Ltd. Page 55...
  • Page 60 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 41FT COULTER LAYOUT Page 56 Salford Farm Machinery Ltd. 08-2007...
  • Page 61 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL SALFORD 41ft 570 RTS HARROW LAYOUT 08-2007 Salford Farm Machinery Ltd. Page 57...
  • Page 62 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 58 Salford Farm Machinery Ltd. 08-2007...
  • Page 63 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 08-2007 Salford Farm Machinery Ltd. Page 59...
  • Page 64 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 60 Salford Farm Machinery Ltd. 08-2007...
  • Page 65 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 08-2007 Salford Farm Machinery Ltd. Page 61...
  • Page 66 NOTE: Red must face rear of machine Mounting bracket shares Harrow head U-bolt. RTS MODELS: 13' - 24' NOTE: Red must face rear of machine Mounting bracket shares Harrow Amber light head U-bolt. always outside Page 62 Salford Farm Machinery Ltd. 08-2007...
  • Page 67 A: 27' - 41' (3 SECTION) ONLY NOTE: HAVE SOMEONE WATCHING FOR COLLISIONS WHEN FOLDING FOR THE FIRST TIME NOTE: LINE UP END OF BRACKET WITH OUTSIDE OF AMBER LIGHT THIS WILL PREVENT COLLISION WHILE FOLDING. 08-2007 Salford Farm Machinery Ltd. Page 63...
  • Page 68 3/8" X 1" LG. GRADE 5 1 C5507 REAR PARKING STAND MOUNT FOR 6" BEAM 1 C5508 550 PARKING STAND 1 GP10004L03 L-PIN 5/8" DIA. x 4" LG. 1 GHP11 #11 HAIR PIN Page 64 Salford Farm Machinery Ltd. 08-2007...
  • Page 69 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL 550-570 WING FRAME WING LOCK BRACKET 08-2007 Salford Farm Machinery Ltd. Page 65...

  • Page 70: Grease Bank

    Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL GREASE BANK Page 66 Salford Farm Machinery Ltd. 08-2007...
  • Page 71 L00734 BRACKET FOR SINGLE FOLD A60072 BRACKET FOR DOUBLE FOLD BU1061 5/8 x 4 x 6" U-CLAMP 5000-2 Coupling 5502-2 1/8" Elbow - 90 5503-2 1/8" Elbow - 45 Single-fold machine shown here. 08-2007 Salford Farm Machinery Ltd. Page 67...
  • Page 72 Return To Contents 570 RTS PARTS AND ASSEMBLY MANUAL Page 68 Salford Farm Machinery Ltd. 08-2007...
