Next-Generation Banknote Acceptor Unit

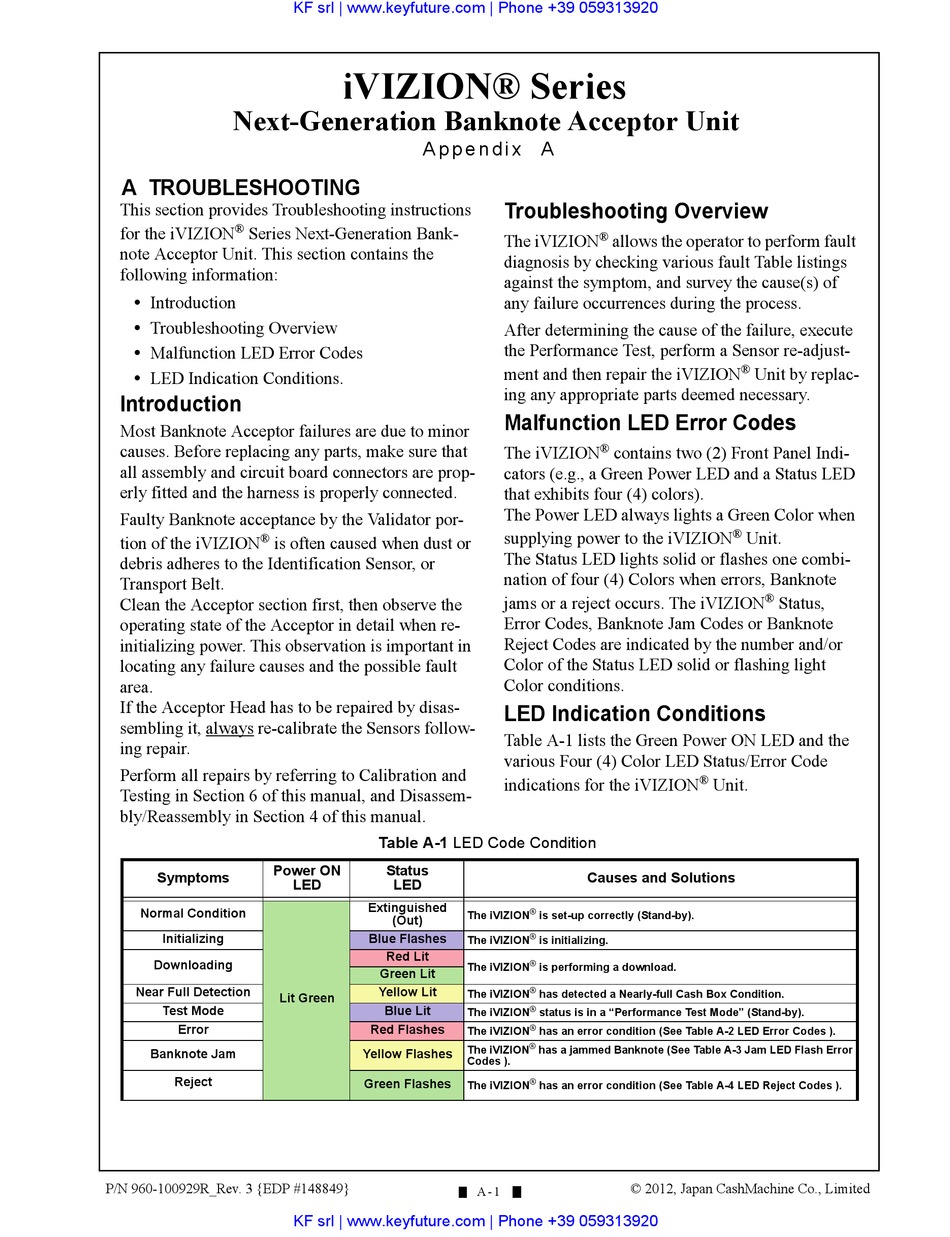

A TROUBLESHOOTING

This section provides Troubleshooting instructions
®
for the iVIZION Series Next-Generation Bank-
note Acceptor Unit. This section contains the 
following information:
•

Introduction

•

Troubleshooting Overview

•

Malfunction LED Error Codes

•

LED Indication Conditions.

Introduction
Most Banknote Acceptor failures are due to minor
causes. Before replacing any parts, make sure that
all assembly and circuit board connectors are prop-
erly fitted and the harness is properly connected.
Faulty Banknote acceptance by the Validator por-
®
tion of the iVIZION is often caused when dust or
debris adheres to the Identification Sensor, or
Transport Belt. 
Clean the Acceptor section first, then observe the
operating state of the Acceptor in detail when re-
initializing power. This observation is important in
locating any failure causes and the possible fault
area. 
If the Acceptor Head has to be repaired by disas-
sembling it, always re-calibrate the Sensors follow-
ing repair.
Perform all repairs by referring to Calibration and
Testing in Section 6 of this manual, and Disassem-
bly/Reassembly in Section 4 of this manual.
Power ON
Symptoms
Normal Condition
Initializing
Downloading
Near Full Detection
Lit Green
Test Mode
Error
Banknote Jam
Reject
P/N 960-100929R_Rev. 3 {EDP #148849}
KF srl | www.keyfuture.com | Phone +39 059313920
iVIZION® Series
A p p e n d i x A

Table A-1 LED Code Condition

Status
LED LED
Extinguished
The iVIZION
(Out)
Blue Flashes
The iVIZION
Red Lit
The iVIZION
Green Lit
Yellow Lit
The iVIZION
Blue Lit
The iVIZION
Red Flashes
The iVIZION
The iVIZION
Yellow Flashes
Codes ).
Green Flashes
The iVIZION
KF srl | www.keyfuture.com | Phone +39 059313920
Troubleshooting Overview
®
The iVIZION allows the operator to perform fault
diagnosis by checking various fault Table listings
against the symptom, and survey the cause(s) of
any failure occurrences during the process.
After determining the cause of the failure, execute
the Performance Test, perform a Sensor re-adjust-
ment and then repair the iVIZION
ing any appropriate parts deemed necessary.
Malfunction LED Error Codes
®
The iVIZION contains two (2) Front Panel Indi-
cators (e.g., a Green Power LED and a Status LED
that exhibits four (4) colors). 
The Power LED always lights a Green Color when
supplying power to the iVIZION
The Status LED lights solid or flashes one combi-
nation of four (4) Colors when errors, Banknote
jams or a reject occurs. The iVIZION
Error Codes, Banknote Jam Codes or Banknote
Reject Codes are indicated by the number and/or
Color of the Status LED solid or flashing light
Color conditions.
LED Indication Conditions
Table A-1 lists the Green Power ON LED and the
various Four (4) Color LED Status/Error Code 
indications for the iVIZION
Causes and Solutions
®
is set-up correctly (Stand-by).
®
is initializing.
®
is performing a download.
®
has detected a Nearly-full Cash Box Condition.
®
status is in a "Performance Test Mode" (Stand-by).
®
has an error condition (See Table A-2 LED Error Codes ).
®
has a jammed Banknote (See Table A-3 Jam LED Flash Error
®
has an error condition (See Table A-4 LED Reject Codes ).
© 2012, Japan CashMachine Co., Limited
A - 1
®
Unit by replac-
® Unit. 
®
Status,
®
Unit.
