Control and Power Connections

1. Locate the removable green connector on the rear of the modified CC-8A labeled "G A B C D".
The green connector is a two part connector as shown and the top part can be removed by
pulling it straight off. This will allow easier wire replacement or servicing as needed. When
pushing the removable connector back in place, ensure you press straight inward to fully seat
the connection.
2. Insert the five wire cable on the green connector as shown in Figure 4.
3. The same five wires are connected to the RCA8C-1 removable green connector (G A B C D) as
shown in Figure 5. ("D" is required only for voltage on the element feedlines and should not be
connected for passive vertical arrays.)
4. The modified CC-8A Control Console requires a nominal +12 Vdc fused input (+12 to +14
Vdc, 2 Amps and well filtered) through the 2.1 mm connector on the rear of the unit.
A 2.1 mm power cord is supplied with unit. The wire with the white stripes is the +12 Vdc.
Outer Connection is GROUND
"D" is required only for voltage on the element feedlines and should not be connected for passive
vertical arrays.
Center Pin is +12 VDC.

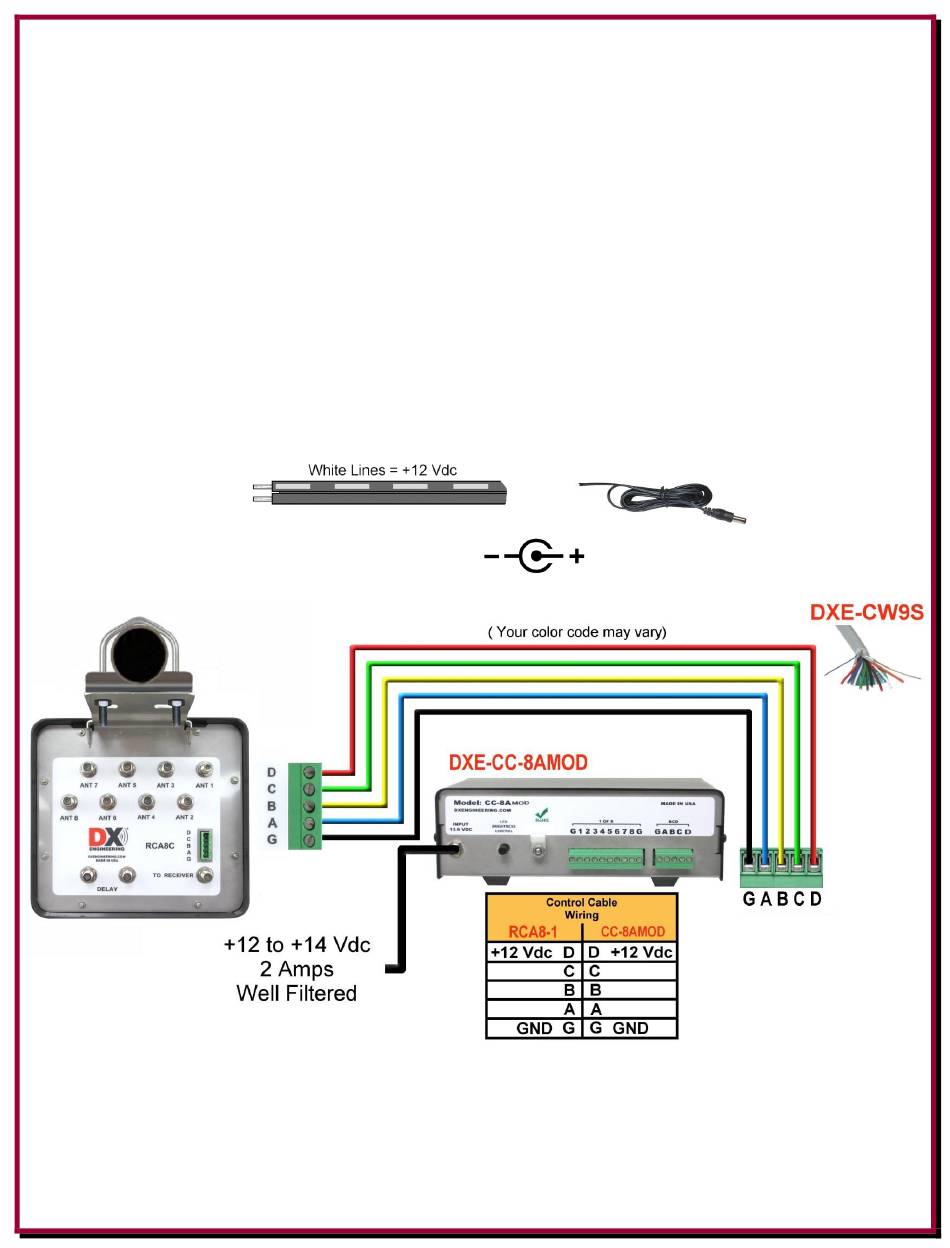

Figure 4
