System Overview - DX Engineering DXE-RCA8C-SYS-2P Manual

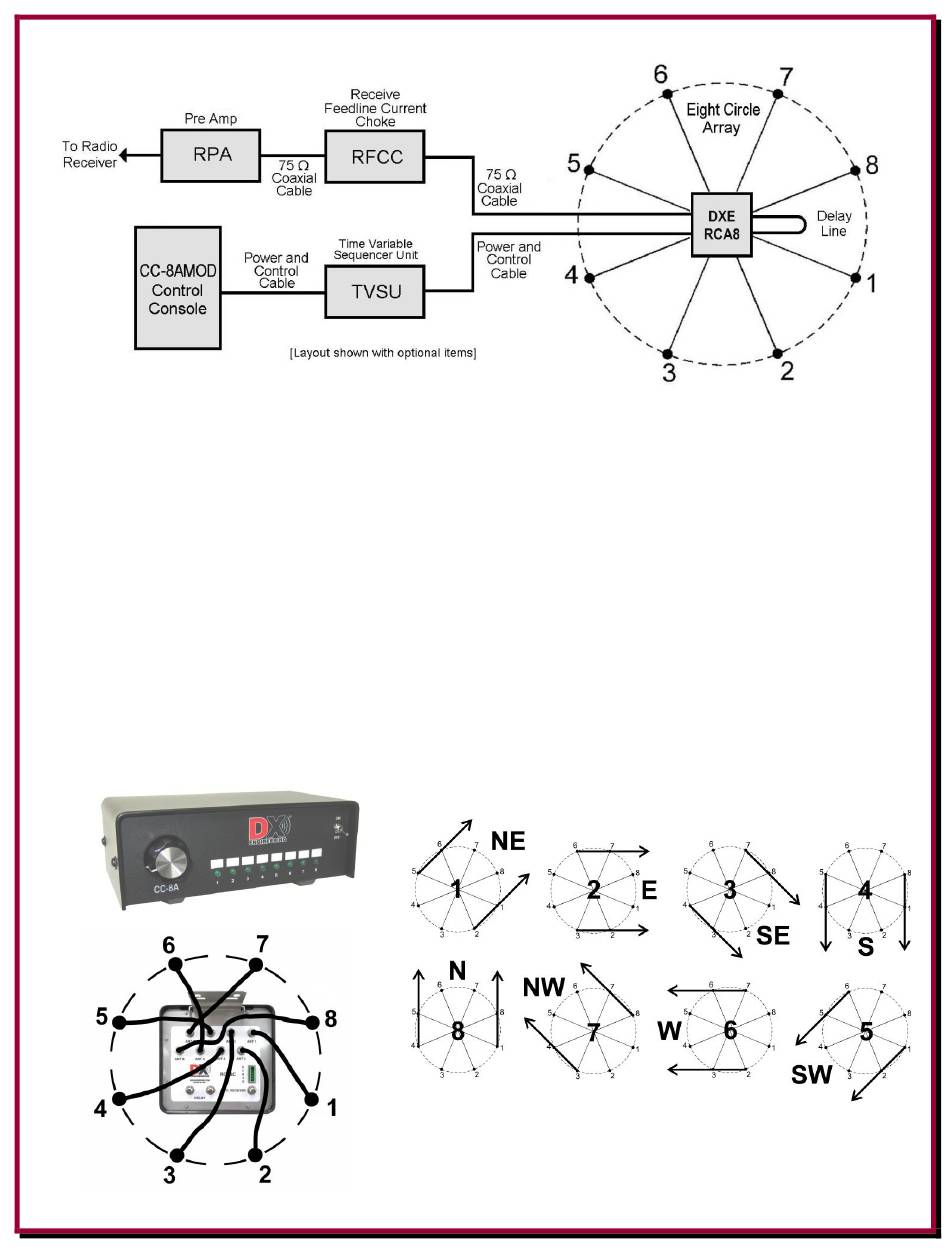

Figure 1 - Typical Diagram of the DXE-RCA8C-SYS-2P Receive Eight Circle Array System

System Overview

The heart of the DXE-RCA8C-SYS-2P system is comprised of the modified DXE-CC-8A Eight
Position Control Console and the RCA8C-1 Receive Eight Circle Array Controller. These units
interconnect and work together using factory default settings to control the Receive Eight Circle
Array. The modified CC-8A control console uses BCD switching voltages for the RCA8C-1 to
change the receiving direction of the array.
When the modified CC-8A Eight Circle Control Console and the RCA8C-1 Receive Eight Circle
Array Controller are connected as shown in the installation section below and the layout is as
described for North America in Figure 1, the switch positions on the modified CC-8A will switch
the array in the eight directions as shown in Figure 2.
Figure 2
