Anthos A6 PLUS Series Operator's Manual

Hide thumbs Also See for A6 PLUS Series:
Table of Contents

Advertisement

Quick Links

97055066
Rev. 00
2019-03
EN
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A6 PLUS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anthos A6 PLUS Series

Summary of Contents for Anthos A6 PLUS Series

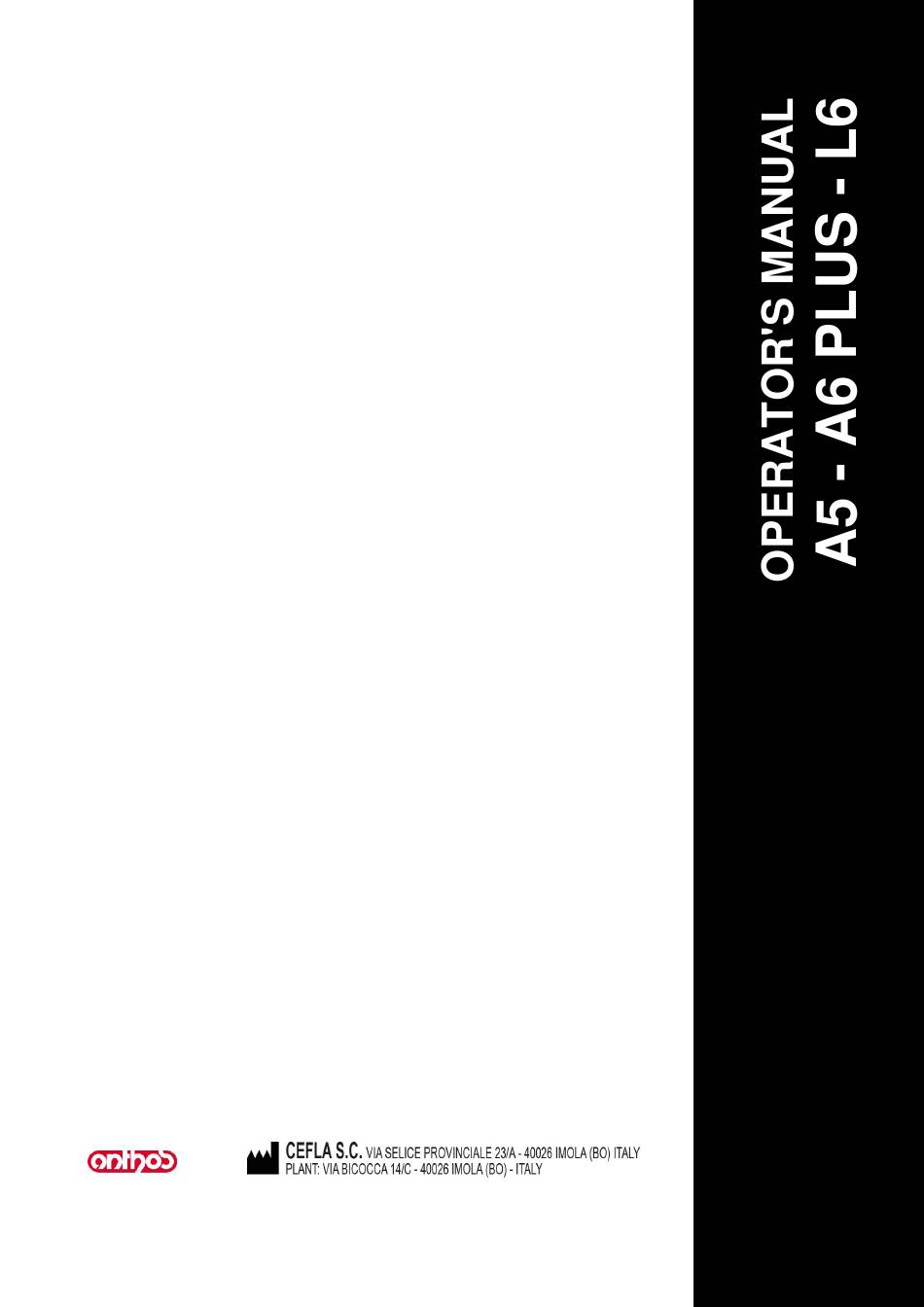

  • Page 1 97055066 Rev. 00 2019-03...

  • Page 2: Table Of Contents

    A5 - A6 PLUS - L6 INDEX GENERAL WARNINGS ....................................4 1.1. SYMBOLS ........................................4 1.2. INTENDED USE ......................................5 1.2.1. CLASSIFICATION AND REFERENCE STANDARDS ........................6 1.2.2. ENVIRONMENTAL CONDITIONS..............................6 1.2.2.1. STORAGE CONDITIONS ...................................6 1.2.3. WARRANTY .......................................6 1.2.4. DISPOSING THE EQUIPMENT WHEN NO LONGER USED ......................6 1.3.
  • Page 3 A5 - A6 PLUS - L6 ACCESSORIES ......................................72 8.1. OPERATING LAMP ....................................72 8.2. MONITOR ON LAMP POLE ..................................72 8.3. NEGATOSCOPE FOR PANORAMIC X-RAYS ............................73 8.4. AIR/WATER/230V QUICK-COUPLINGS ..............................73 8.5. AUXILIARY TRAY HOLDER ..................................74 MAINTENANCE ......................................75 9.1.

  • Page 4: General Warnings

    A5 - A6 PLUS - L6 GENERAL WARNINGS • These instructions explain how to correctly use the following dental unit: A6 PLUS A5 CONTINENTAL A6 PLUS CONTINENTAL L6 CONTINENTAL A5 INTERNATIONAL A6 PLUS INTERNATIONAL L6 SIDE DELIVERY A5 CART A5 SINGLE CART A5 SINGLE WATER UNIT Please carefully read this manual before using the device.

  • Page 5: Intended Use

    A5 - A6 PLUS - L6 Equipment OFF. Ukrainian national symbol of conformity. Tipping hazard. C(MET)us Quality Mark (USA and CANADA) Equipment in compliance with essential requirements of "Refer to the Technical Manual" directive 93/42/EU and subsequent changes It means that for reasons of safety you need to consult (Class IIa Medical Device).

  • Page 6: Classification And Reference Standards

    A5 - A6 PLUS - L6 1.2.1. CLASSIFICATION AND REFERENCE STANDARDS • Classification of MEDICAL DEVICES: Classification of the dental unit in accordance with the indications given in annex IX of directive 93/42/EC as amended and supplemented: Class IIa. • Classification of ELECTRICAL MEDICAL EQUIPMENT: Classification of the dental unit in accordance with standard EN 60601-1 on safety of medical equipment: Class I - Type B.

  • Page 7: Safety Warnings

    A5 - A6 PLUS - L6 1.3. SAFETY WARNINGS • All equipment is permanently installed. Depending on the type of dental chair the dental unit comes with, refer to the installation SCHEMATICS in paragraph TECHNICAL SPECIFICATIONS. The CEFLA s.c. shall not be held liable for any personal injury or property damage arising from failure to heed the following clause. •...

  • Page 8: Electromagnetic Safety

    A5 - A6 PLUS - L6 • Dental chair movement. Make sure that the patient is ready to collaborate: ask him/her to keep his/her hands and feet close, avoiding incorrect postures. Check that the patient is sitting properly when moving the chair (see figure). 1.4.

  • Page 9: Cleaning And Disinfection

    A5 - A6 PLUS - L6 1.5. CLEANING AND DISINFECTION Cleaning is the first step required for any disinfection process. Physically scrubbing with detergents and surface-active substances and rinsing with water removes a considerable amount of micro-organisms. If the surface is not first cleaned, the disinfection process cannot be successful. If a surface cannot be adequately cleaned, it should be protected with barriers.

  • Page 10: Sterilisation

    A5 - A6 PLUS - L6 1.6. STERILISATION Every instrument supplied is NOT STERILE and must be sterilised in steam autoclave (max. 135°C) before use, without performing any type of chemical sterilization. Sterilization must be performed using appropriate packaging materials, verified during the sterilization process validation. It is recommended to sterilize in steam autoclave (moist heat) through a cycle with pre-vacuum (forced air removal).

  • Page 11: Dental Units

    Height-adjustable column Tray holder table on assistant's board (optional). Negatoscope for panoramic X-rays (optional). "PROFESSIONAL" auxiliary board (optional). Overturning protection plate (optional). ANTHOS A2.5 dental chair. ANTHOS A2.7 dental chair. ANTHOS A1.3 dental chair. Model A5: Model A5 CONTINENTAL (SN. 71HAxxxx)
  • Page 12 A5 - A6 PLUS - L6 Model A5 INTERNATIONAL (SN. 71HBxxxx) Model A5 CART (SN. 71HCxxxx) Model A5 SINGLE CART (SN. 71HDxxxx)
  • Page 13 A5 - A6 PLUS - L6 Model A5 SINGLE WATER UNIT (SN. 71HExxxx) Model A6 PLUS: Model A6 PLUS CONTINENTAL Model A6 PLUS INTERNATIONAL (SN. 71HGxxxx)
  • Page 14 A5 - A6 PLUS - L6 Model L6: Model L6 CONTINENTAL (SN. 71HJxxxx) Model L6 CONTINENTAL, HYBRID version (SN. 71HNxxxx) Model L6 SIDE DELIVERY (SN. 71HKxxxx)

  • Page 15: Dental Chair

    Backrest. Fixed armrest. Removable armrest (optional). Stop foot board. Dental chair of ANTHOS A2.5 and ANTHOS A2.7 model Dental chair of ANTHOS A1.3 L model Operating time. The operating and rest times are as follows: work 25 sec. - rest 10 min.

  • Page 16: Special Warnings

    Models L6 SIDE DELIVERY with fixed height board During installation, the cart board can be adjusted in height to 7 predefined working positions: min. height 735 mm, max. height 885 mm. Board height adjustment must be carried out by a ANTHOS authorised technician, only.

  • Page 17: Starting

    A5 - A6 PLUS - L6 STARTING Press the main switch (f1) Switch (f1) on: - equipment ON; - electric system powered; - water and air system connected; - DISPLAY (G) on. Switch (f1) off: - equipment OFF; - electric system not powered; - water and air system not connected;...

  • Page 18: Conversion Of The Dental Unit Configuration For Left-Handed Operators (Hybrid Version Only)

    A5 - A6 PLUS - L6 3.1. CONVERSION OF THE DENTAL UNIT CONFIGURATION FOR LEFT-HANDED OPERATORS (HYBRID version only) To reverse dental unit configuration, proceed as follows: • Lower the dental chair and the backrest until the headrest is lower than the water unit.

  • Page 19: Dental Chair Operation

    A5 - A6 PLUS - L6 DENTAL CHAIR OPERATION Dental chair movements. The dental chair can be operated from the following units: • Dentist's board (a) (see par. 5.). • Multifunction foot control (b) (see par. 5.2.). • Assistant’s board (c) (see par. 6.). Dental chair movements: •...

  • Page 20: Movement Lock Devices

    A5 - A6 PLUS - L6 Dental units model: L6 SIDE DELIVERY Dental units model: L6 CONTINENTAL, HYBRID version Dental chair movements: - with the instrument extracted NOT working: manual movements allowed, automatic movements inhibited, but if they are already in progress at the moment of extraction they are not interrupted;...

  • Page 21: Adjustable Headrest

    A5 - A6 PLUS - L6 4.3. ADJUSTABLE HEADREST Warnings for use. • Maximum permitted load on headrest: 30 kg. • Do not attempt to move headrest while patient is resting against it. • Do not attempt to modify the position of the cushion without first releasing the lock mechanism. •...

  • Page 22: Dentist's Board Operation

    A5 - A6 PLUS - L6 DENTIST'S BOARD OPERATION Layout of instruments. The positions of the instruments on the board are determined by the customer at the time of order. Enabling the instruments. • Syringe is always on (see paragraph 5.3.). •...
  • Page 23 A5 - A6 PLUS - L6 Instrument recall arm lock device (only version with upper recovery of hoses). The arm can be locked in the instrument extracted position, by taking it at 2/3 from the limit stop (1). To go back to the original condition, move the arm to the end of its travel (2).
  • Page 24 A5 - A6 PLUS - L6 Cleaning the dentist's board. Clean the dentist's board using a suitable product (see paragraph 1.4). Removable instrument holder; just slide it out of its seat to remove. Board handle that can be removed and sterilized in an autoclave at up to 121°C.

  • Page 25: Dentist's Control Console

    A5 - A6 PLUS - L6 5.1. DENTIST’S CONTROL CONSOLE The console consists of a control panel and a DISPLAY of the LCD Touch type (A). Upon turning on, the dental unit runs a short self-diagnosis cycle ending when the MAIN SCREEN appears on the DISPLAY showing the machine model, the name of the last set operator and the active warning icons.
  • Page 26 A5 - A6 PLUS - L6 Description of CONSOLE buttons: Button lock Button pressed shortly: recall stored Decreases settable values. position “A”. (pressed and held for at least 5 sec. for Clean function). Button pressed and held: seat up. Stopwatch Button pressed shortly: recall stored Increases settable values.

  • Page 27: Main Settings

    A5 - A6 PLUS - L6 5.1.1. MAIN SETTINGS 5.1.1.1. HYGIENE CYCLE SETTING • Press button (H1) on the assistant's board to open the HYGIENE CYCLE SETTING menu: Hygiene cycle setting menu. Button pressed shortly: FLUSHING cycles. Button pressed and held: BIOSTER S cycle. 5.1.1.1.1.

  • Page 28: Bioster Disinfection Cycle Setting

    A5 - A6 PLUS - L6 5.1.1.1.3. BIOSTER DISINFECTION CYCLE SETTING We recommend carrying out this operation at the end of each working day. Performing the cycle. • Press and hold the button (H1) on the assistant's board to select the BIOSTER S cycle.

  • Page 29: Operator Selection

    A5 - A6 PLUS - L6 5.1.2. OPERATOR SELECTION • Press button (A) repeatedly to set the desired operator. There are 4 selectable operators. 5.1.3. DENTAL CHAIR "RINSING POSITION" AND "RESET POSITION" PROGRAMMING This setting is specific for each single operator. Proceed as follows: •...

  • Page 30: Emergency Button

    A5 - A6 PLUS - L6 5.1.5. EMERGENCY BUTTON The button (P) can be used in the event of an emergency to move the patient into the Trendelenburg position. • The Trendelenburg position is already set and cannot be changed •...

  • Page 31: Foot Control

    A5 - A6 PLUS - L6 5.2. FOOT CONTROL Three types of foot controls are available: Multifunction (see paragraph 5.2.1.). Pressure operated (see paragraph 5.2.2). Power pedal (see paragraph 5.2.3). The "Multifunction" and "Pressure-operated" foot controls can also be supplied in WIRELESS version (see paragraph 5.2.5). "MULTIFUNCTION”...
  • Page 32 A5 - A6 PLUS - L6 Left-hand button operation (4). With instrument removed • Short press: enables/disables the spray function. • Long press (at least 2 seconds): sends a jet of air to the instruments (Chip air); the jet stops when the button is released. With instruments at rest •...

  • Page 33: Push-Pedal" Foot Control

    A5 - A6 PLUS - L6 "PUSH-PEDAL” FOOT CONTROL 5.2.2. Description of the parts. Handle. Control lever. Dental chair movements. Chip-air/Patient rinse position recall control. Water Clean System/Automatic dental chair return control. Spray operation LED. Battery charge LED (wireless version only). Control lever (2).
  • Page 34 A5 - A6 PLUS - L6 Left-hand button (4). With instrument removed • Short press: enables/disables the spray function. • Long press (at least 2 seconds): sends a jet of air to the instruments (chip air); the jet stops when the button is released. The control works only when the Turbine and Micromotor are in working position.

  • Page 35: Power Pedal" Foot Control

    A5 - A6 PLUS - L6 5.2.3. "POWER PEDAL" FOOT CONTROL Description of the parts. Handle. Foot control. Dental chair movement control. Chip-air control or activation/deactivation of instrument spray function. Water Clean System control or activation/deactivation of instrument spray function. Automatic dental chair return or programme "B”...
  • Page 36 A5 - A6 PLUS - L6 Right-hand button (5). With instrument removed • Long press (at least 2 seconds): sends a jet of water to the instruments (Turbine, Micromotor and Scaler) (Water Clean System function); the jet stops when the button is released. •...

  • Page 37: Wireless Foot Control

    A5 - A6 PLUS - L6 5.2.4. WIRELESS FOOT CONTROL The "Multifunction" and "Push-pedal" foot controls can also be supplied in WIRELESS version. Warnings for use. • Avoid keeping the WIRELESS foot control in proximity of other RF sources, such as wireless LAN cards, other radio devices, home RF devices, microwave ovens.
  • Page 38 A5 - A6 PLUS - L6 Limited battery warranty. The battery in the foot control is covered by a 6-month warranty from the date of installation. Recharging the battery. When the batteries in the WIRELESS foot control need to be recharged. Proceed as follows: •...

  • Page 39: Syringe

    A5 - A6 PLUS - L6 5.3. SYRINGE Description of the instrument. Spout. Handle. Syringe release button. Air button. Water button. Hot/cold selector (only for 6-function syringes). Hot/cold indicator LED (only for 6-function syringes). The instrument is supplied non-sterile. It is recommended to use disposable infection control sheaths and spouts.

  • Page 40: Turbine

    A5 - A6 PLUS - L6 5.4. TURBINE Connecting the handpiece and changing the drill. Refer to the specific instructions provided with the handpiece. Use. The instrument is supplied NON-sterile. Carefully read the operating instructions supplied with the instrument before attempting to sterilize. Operating times: work 5 min., rest 5 min.

  • Page 41: Electric Micromotor

    A5 - A6 PLUS - L6 Removable hose. The instrument features a removable hose to make cleaning operations easier (see paragraph 5.). Cleaning and maintenance. Refer to the specific instructions provided with the instrument. It is recommended to use Daily Oil Plus (CEFLA s.c.) for lubrication. Sterilization.
  • Page 42 A5 - A6 PLUS - L6 Adjusting the drill’s rotation speed. Set the percentage of drill’s maximum rotation speed using buttons (A). The data set are automatically saved. Turning on the fiber optics. Press the button to turn Fiber Optics on/off (F). The Fiber Optics switch off when the turbine is not used for 30 seconds (rheostat lever disabled).

  • Page 43: Restorative Operating Mode

    A5 - A6 PLUS - L6 Removable hose. The micromotor features a removable hose to make cleaning operations easier (see paragraph 5.). Cleaning and maintenance. Refer to the specific instructions provided with the instrument. It is recommended to use Daily Oil Plus (CEFLA s.c.) for lubrication. •...
  • Page 44 A5 - A6 PLUS - L6 Torque value adjustment. • Set the maximum torque value using buttons (B). The torque value is expressed in % or Ncm for certified reducers. The appearance of the symbol (Z) highlights a value reading tolerance of ±20%.

  • Page 45: Scaler

    A5 - A6 PLUS - L6 5.6. SCALER Connecting the handpiece and insert. Refer to the specific instructions provided with the handpiece. • Before attempting to connect the handpiece, make sure the contacts are perfectly dry. Blow air from the syringe, if necessary, to dry.
  • Page 46 A5 - A6 PLUS - L6 Removable hose. Scaler features a removable hose to make cleaning operations easier (see paragraph 5). Cleaning and maintenance. Refer to the specific instructions provided with the instrument. Do not soak the handpiece in disinfectant liquids or detergents. Sterilization.

  • Page 47: T Led Curing Light

    A5 - A6 PLUS - L6 5.7. T LED CURING LIGHT Technical specifications. Supply voltage: 24-36 Vdc Max. power absorbed: 6 VA Light source: 1 5W LED Wavelength: 430÷490 nm Acoustic signals: at cycle start, every 5 seconds, and at cycle end Type of operation: intermittent (work 3 consecutive cycles - rest 60 sec.) Programs: 6 (preset).
  • Page 48 A5 - A6 PLUS - L6 Operation. • The instrument is supplied non-sterile. • Before use, disinfect the lamp handle. The fiber optic and the eye protection can be sterilized in a steam autoclave up to 135°C. • Put the fiber optic (c) in its housing until it clicks. •...
  • Page 49 A5 - A6 PLUS - L6 Indicators. The following indicators are provided on the control panel to signal curing light fault: • LED 5 and LED 1, green, steady on. Lamp does not emit any light. Contact technical service department. •...
  • Page 50 A5 - A6 PLUS - L6 The handpiece cannot be put in autoclave; disinfect it on the outside with suitable products and cover it with disposable plastic wrap. Use soft disposable paper towels to disinfect the handpiece. Do not use harsh products or soak in liquids. •...

  • Page 51: C-U2 Dental Camera

    A5 - A6 PLUS - L6 5.8. C-U2 DENTAL CAMERA The C-U2 dental camera system, complete with an extremely lightweight ergonomic handpiece, is specially designed for simple and well-conceived usability in examining the oral cavity. Auto-exposure and fixed focus features provide easy operation. It is designed to allow the dentist to more efficiently show and explain to patients all oral conditions and reasons for planned treatment.
  • Page 52 A5 - A6 PLUS - L6 Use of the camera. • Place the instrument in its work position. Now camera is activated and is in LIVE mode (monitor shows "moving" images) or FREEZE mode (monitor shows a snapshot). Buttons on the camera Image acquisition.
  • Page 53 A5 - A6 PLUS - L6 Setting operation in single image or multiple image mode (LCD Touch DISPLAY only). • With the camera set to LIVE mode, briefly press the button (A) to change from viewing a single image to multiple images (and vice versa). A dedicated icon, found in the top right-hand corner, signals on the monitor when single-image mode is active.
  • Page 54 A5 - A6 PLUS - L6 Handpiece status An optical guide, illuminated by a multicolour LED indicator, found in the area near the control button (g), shows handpiece status as per the table given below: Colour Situation Blue light flashes, very slowly Handpiece in standby Handpiece activated, live images Light blue steady light...

  • Page 55: Electronic Apex Locator

    A5 - A6 PLUS - L6 5.9. ELECTRONIC APEX LOCATOR This locator, through the analysis of the variations of special electric signals, makes root apex location easier. If used together with a "file" (not supplied) for manual treatment, it proves useful also to measure canal length.

  • Page 56: Zen-Xi Integrated Sensor

    A5 - A6 PLUS - L6 Root canal length detection. • The use of manual file is of the utmost importance for canal detection. The correct procedure entails file insertion inside canal until reaching indication 0.5. • Insert the file with a slow clockwise rotation until the APEX indication appears on the instrument. •...

  • Page 57: Assistant's Board Operation

    A5 - A6 PLUS - L6 ASSISTANT’S BOARD OPERATION Description of the parts. Assistant’s board: it can hold 2 suction tubes and 3 instruments, of which 1 is dynamic. Control panel used to operate the dental chair and water unit. Guides with sliding rollers that hold up the hoses of the suction tubes.
  • Page 58 A5 - A6 PLUS - L6 Dental units model: A6 PLUS CONTINENTAL, A6 PLUS INTERNATIONAL Dental units model: L6 CONTINENTAL L6 SIDE DELIVERY Dental units model: L6 CONTINENTAL, HYBRID version Cleaning the sliding rollers. Push down and take off the sliding rollers (c). Clean the sliding rollers with a suitable product: refer to paragraph 1.5.

  • Page 59: Assistant's Board Console

    A5 - A6 PLUS - L6 6.1. ASSISTANT’S BOARD CONSOLE Standard version. SINGLE WATER UNIT model version. Description of the buttons: Dental unit POWER SAVING button (with relevant warning LED) Operating light on/off button Water-to-cup button Water-to-bowl button Seat up and programmed position A recall button Backrest up and programmed position B recall button Seat down and programmed position C recall button Backrest down and emergency position D recall button...

  • Page 60: Suction Tubes

    A5 - A6 PLUS - L6 6.3. SUCTION TUBES Suction starts when lifting the suction tube holder off its support. To adjust suction power, use the lever (a) located on the suction tube holder handle. The dental unit is equipped with the V.D.S. system that allows the drying of the suction line using an automatic stop delay (about 2 seconds).

  • Page 61: Tray Holder

    A5 - A6 PLUS - L6 6.4. TRAY HOLDER The tray holder (a) is made of stainless steel and can easily be removed from its support. Tray holder support can rotate both clockwise and counter-clockwise, so as to be positioned in the most convenient position for the operator. To lock/unlock the tray holder support, simply turn the clutch knob (b).

  • Page 62: Water Unit Operation

    A5 - A6 PLUS - L6 WATER UNIT OPERATION 7.1. FILL CUP AND BOWL The bowl can be turned 305° on the water unit by hand or using a motor drive (optional). The bowl and the water-to-cup spout can be removed to make cleaning operations easier.
  • Page 63 A5 - A6 PLUS - L6 Adjusting the amount of water used to fill the cup. • Turn on the dental unit holding down the button (B1) on the assistant’s board. 1 intermittent BEEP signals saving is in progress. • Press the button (B1) once to start filling the cup. •...

  • Page 64: S.h.s/S System (Simplified Hygienization System)

    A5 - A6 PLUS - L6 Spout, bowl and bowl filter removal. • Pull up the spout (l) and take it off. • Pull up the filter (q) and its cover (p) from the bowl to remove them. • Release bowl (m) by turning it counter-clockwise, then pull it up to remove it.

  • Page 65: Manual S.h.s. System (Applied On A5 Single Cart Model Only)

    A5 - A6 PLUS - L6 • Fit the tank back in place by turning it counter-clockwise. Make sure that tank is duly fastened. • Touch the button (T) to re-enable the S.H.S. system. Check that icon (A) on DISPLAY turns on. If you are going to be absent from the surgery for long periods of time (holidays), completely empty the tank (a) before leaving.

  • Page 66: System (Water Hygienization Equipment)

    A5 - A6 PLUS - L6 BY-PASS button. The system can be disabled in case you want to supply instruments with mains water. This function is carried out by switching toggle (b) to "LINE" position. Switch toggle (b) back to "TANK" position to go back to distilled water operation. Cleaning and disinfection of the tank.
  • Page 67 A5 - A6 PLUS - L6 Disinfectant fluid tank filling To fill up, use pure PEROXY Ag+ or 3% oxygenated water (10 volumes) only, without diluting them. Dental units of A5 and A6 PLUS model • Open the water unit side cover. •...

  • Page 68: Bioster S Automatic Disinfection System (Only Dental Units With Lcd Touch Display)

    A5 - A6 PLUS - L6 7.4. BIOSTER S AUTOMATIC DISINFECTION SYSTEM (only dental units with LCD Touch DISPLAY) Description of the system. This system allows carrying out an automatic disinfection cycle of the water circuits of the following instruments: •...
  • Page 69 A5 - A6 PLUS - L6 Performing the disinfection cycle. • Start the automatic disinfection cycle by touching “PLAY” icon button (A) on the LCD Touch DISPLAY or by pressing the “BIO” button on the assistant's board. • Now the system automatically performs the following operations: - Emptying water ducts of instruments with air.

  • Page 70: Automatic Instrument Flushing Cycle

    A5 - A6 PLUS - L6 7.5. AUTOMATIC INSTRUMENT FLUSHING CYCLE Description of the system. This system allows carrying out an automatic FLUSHING cycle to renew water present in the water ducts of the instruments on the dentist’s and the assistant’s boards and the water-to-cup duct. The flushing cycle can be carried out with mains water, with W.H.E.

  • Page 71: System (Automatic Cleaning Vacuum System)

    A5 - A6 PLUS - L6 7.6. A.C.V.S. SYSTEM (AUTOMATIC CLEANING VACUUM SYSTEM) Description of the system. This system allows cleaning the suction lines. System features a tank (a) with detergent fluid and two couplings (d) used for suction tube flushing. Detergent fluid tank has a total capacity of approx.

  • Page 72: Opening/Closing The Water Unit Side Cover

    The instructions for use and maintenance of the lamps are available in PDF format and can be downloaded from the download area of the www.anthos.com. During the automatic movements of the dental chair, the lamp automatically turns off to prevent blinding the patient.

  • Page 73: Negatoscope For Panoramic X-Rays

    A5 - A6 PLUS - L6 8.3. NEGATOSCOPE FOR PANORAMIC X-RAYS A negatoscope for panoramic x-rays can be mounted on all INTERNATIONAL version dentist's boards. The screen dimensions are as follows: H = 210mm, L = 300mm. To turn on negatoscope, simply turn special switch (a): Negatoscope on.

  • Page 74: Auxiliary Tray Holder

    A5 - A6 PLUS - L6 8.5. AUXILIARY TRAY HOLDER Applied only on models L6 SIDE DELIVERY and A5 CART. Tray holder can contain two standard size trays. Turn knob (b) to adjust vertical movement based on load: • Turn clockwise to increase resistance (heavy loads). •...

  • Page 75: Maintenance

    A5 - A6 PLUS - L6 MAINTENANCE Preventive maintenance CEFLA s.c., the manufacturer of the medical devices, in accordance with applicable standards IEC 60601-1 3rd Ed. - 2007, IEC 62353 and Directive MDD 93/42, as amended and supplemented, for medical devices underlines that the following scheduled maintenance checks specified in the Technical Service Manual are to be carried out by authorised personnel at least once every 12 months: •...

  • Page 76: Suction Filter Cleaning

    A5 - A6 PLUS - L6 9.3. SUCTION FILTER CLEANING This operation should be done daily at the end of work. BIOLOGICAL HAZARD Always wear goggles and gloves to prevent contact with infected material when cleaning the suction filters. Dental units of A5 and A6 PLUS model •...

  • Page 77: Suction Lines

    A5 - A6 PLUS - L6 9.4. SUCTION LINES The suction lines must be disinfected using a product suitable for this purpose. For cleaning of the suction system, it is recommended to use STER 3 PLUS (CEFLA s.c.) diluted in a 6% solution (equivalent to 60 ml of product in 1 litre of water).

  • Page 78: Air-Liquid Separator Canister By Cattani

    A5 - A6 PLUS - L6 9.5. AIR-LIQUID SEPARATOR CANISTER BY CATTANI At the beginning of each working day. Insert inside filter (d) a defoaming tablet (v). BIOLOGICAL HAZARD Always wear gloves and goggles to prevent contact with infected material when carrying out this operation. At the end of each surgical procedure.

  • Page 79: Cleaning The Turbine Return Air Filter

    A5 - A6 PLUS - L6 Dental units of L6 model • Open the water unit side cover and turn the electric box (b) after releasing the corresponding retainer. • Completely empty the separator container, pressing the proper timed button (c) located on the cover. •...

  • Page 80: Metasys Amalgam Separator

    A5 - A6 PLUS - L6 9.7. METASYS AMALGAM SEPARATOR The maintenance instructions for the METASYS amalgam separator are enclosed with the equipment, if the equipment comes with this type of separator. The separator control device is located in the water unit. •...

  • Page 81: Warning/Error Messages

    A5 - A6 PLUS - L6 10. WARNING/ERROR MESSAGES Two types of notices can be displayed on the console display: warning messages (Wxxx) and error messages (Exxx). Warning messages (Wxxx) indicate situations that require user intervention. Error messages (Exxx) indicate situations that cannot be fixed by the user and require the intervention of the Technical Service. When contacting the Technical Service, please communicate the error number displayed.
  • Page 82 A5 - A6 PLUS - L6 Warning Cause Solution A movement has been interrupted or a movement request cannot Remove the obstacle; if the problem persists, contact the W200 be implemented since the safety device of the assistant's board technical service department. arm has been triggered.
  • Page 83 A5 - A6 PLUS - L6 Warning Cause Solution A movement has been interrupted or a movement request cannot W430 be implemented since the thermal cut-out of the dental chair Wait for the motor to cool down. lifting motor has been triggered. W431 Filesystem error.

  • Page 84: Technical Data

    A5 - A6 PLUS - L6 11. TECHNICAL DATA 97042163 Drain duct inclination: 10 mm/m. A6 PLUS Installation plan: A6 PLUS 97042164 Suction connection: ø40 mm. Suction vacuum Technical manual: 97071265 65 mbar. (minimum): Spare parts catalogue: 97023177 Suction flow rate: 450 l/min.
  • Page 85 A5 - A6 PLUS - L6 Guidance and Manufacturer's declaration - Electromagnetic emissions The dental unit is designed to operate in the specified electromagnetic environment. The customer or the user of the dental unit must ensure its use in an electromagnetic environment with the following features: Emission test Conformity Electromagnetic Environment...
  • Page 86 A5 - A6 PLUS - L6 Guidance and Manufacturer's declaration - Electromagnetic immunity The dental unit is designed to operate in the specified electromagnetic environment. The customer or user of the dental unit must ensure that it is used in such environment. IEC 60601-1-2 Level of Immunity test...

  • Page 87: A5 Continental Dimensional Characteristics

    A5 - A6 PLUS - L6 11.1. A5 CONTINENTAL DIMENSIONAL CHARACTERISTICS...

  • Page 88: A5 International Dimensional Characteristics

    A5 - A6 PLUS - L6 11.2. A5 INTERNATIONAL DIMENSIONAL CHARACTERISTICS...

  • Page 89: Dimensional Characteristics Of A5 Cart Model

    A5 - A6 PLUS - L6 11.3. DIMENSIONAL CHARACTERISTICS OF A5 CART MODEL...

  • Page 90: Dimensional Characteristics Of A5 Single Cart Model

    A5 - A6 PLUS - L6 11.4. DIMENSIONAL CHARACTERISTICS OF A5 SINGLE CART MODEL...

  • Page 91: Dimensional Characteristics Of A5 Single Water Unit Model

    A5 - A6 PLUS - L6 11.5. DIMENSIONAL CHARACTERISTICS OF A5 SINGLE WATER UNIT MODEL...

  • Page 92: A6 Plus Continental Model Dimensional Characteristics

    A5 - A6 PLUS - L6 11.6. A6 PLUS CONTINENTAL MODEL DIMENSIONAL CHARACTERISTICS...

  • Page 93: A6 Plus International Model Dimensional Characteristics

    A5 - A6 PLUS - L6 11.7. A6 PLUS INTERNATIONAL MODEL DIMENSIONAL CHARACTERISTICS...

  • Page 94: Dimensional Characteristics Of L6 Continental Model

    A5 - A6 PLUS - L6 11.8. DIMENSIONAL CHARACTERISTICS OF L6 CONTINENTAL MODEL...

  • Page 95: Dimensional Characteristics Of L6 Continental Model In Hybrid Version

    A5 - A6 PLUS - L6 11.9. DIMENSIONAL CHARACTERISTICS OF L6 CONTINENTAL MODEL in HYBRID version...

  • Page 96: Dimensional Characteristics Of L6 Side Delivery Model

    A5 - A6 PLUS - L6 11.10. DIMENSIONAL CHARACTERISTICS OF L6 SIDE DELIVERY MODEL...

  • Page 97: Dental Unit Maintenance Schedule

    A5 - A6 PLUS - L6 12. DENTAL UNIT MAINTENANCE SCHEDULE REFERENCE WHEN PART ACTION PARAGRAPH Condensate drain cock. Eliminate condensate from air ducts. See paragraph 9.2. Duct 2-minute flushing Spray ducts Manual: activate each instrument with no load See paragraph 7.5 Automatic: activate the LONG FLUSHING cycle Air-liquid separator canister by Daily activity...
  • Page 98 A5 - A6 PLUS - L6 REFERENCE WHEN PART ACTION PARAGRAPH Clean with suitable disinfectant in compliance with manufacturer's recommendations. Removable instrument hoses. See paragraph 5. Spray product on disposable soft paper. Do not use acids or abrasive products. Disinfection of spray water ducts with manual cycle (if See paragraph 7.2.1.
