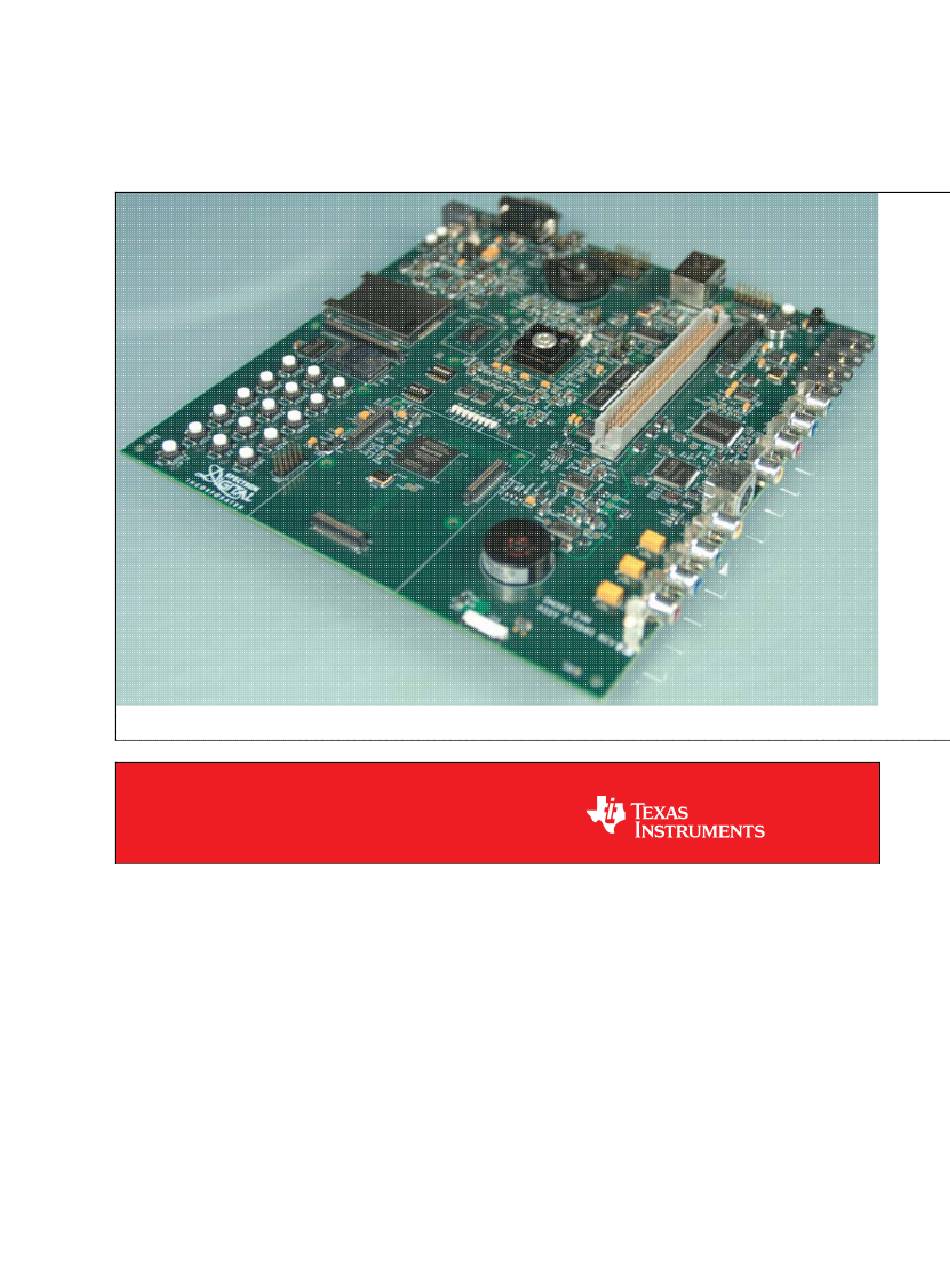

- Page 1 TMS320DM365 EVM Quick Start Guide TMS320DM365 EVM Quick Start Guide Translate this page to Translate Show original TMS320DM365 Digital Video Evaluation Module TMS320DM365 Digital Video Evaluation Module...
- Page 2 TMS320DM365 EVM Quick Start Guide Introduction This Quick Start Guide (QSG) explains how to set up the TMS320DM365 EVM to show the Out Of Box demo, and how to install the Linux Digital Video Software Development Kit (DVSDK). The TMS320DM365 Digital Video Evaluation Module (DVEVM) contains the following: •...
- Page 3 TMS320DM365 EVM Quick Start Guide • Code Sourcery Toolchain, 1 CD-ROM • Spectrum Digital, Inc. board support software, 1 CD-ROM Secure Digital (SD) Media card • Out of Box Linux demo image TI Digital Video Software Development Kit (DVSDK) installer for Linux development To view the Out Of Box demo provided with the EVM, you will need this in addition: •...
- Page 4 TMS320DM365 EVM Quick Start Guide Setting up the EVM for the Out Of Box demo The steps below have corresponding numbers in the EVM overview picture above. Verify DIP SW4 is configured to SD boot mode. Verify DIP SW5 is configured to 1.35-V core voltage mode and component video output mode.
- Page 5 TMS320DM365 EVM Quick Start Guide Make sure your video source outputs 720P 60Hz, and connect the video source to the component video in the RCA connector. Power on your video source. Connect your 720P capable HD video display to the component video out RCA connector. Power on the HD video display.
- Page 6 TMS320DM365 EVM Quick Start Guide Insert the SD card containing the Linux demo image into the SD/MMC slot Connect the power cable to the EVM power jack on the EVM. To be ESD safe, plug in the other end of the cable only after you have connected the power cord to the board.
-
Page 7: Software Updates
TMS320DM365 EVM Quick Start Guide Setting up the EVM for Linux Software Development In addition to the steps above, the following steps will set up your EVM for Linux software development. 11. Connect the provided Ethernet cable to the Ethernet port on the EVM board. The other end of the cable needs to be connected to a network accessible by your Linux development host. - Page 8 TMS320DM365 EVM Quick Start Guide TI Worldwide Technical Support...
