Summary of Contents for Vimar Elvox ESM2

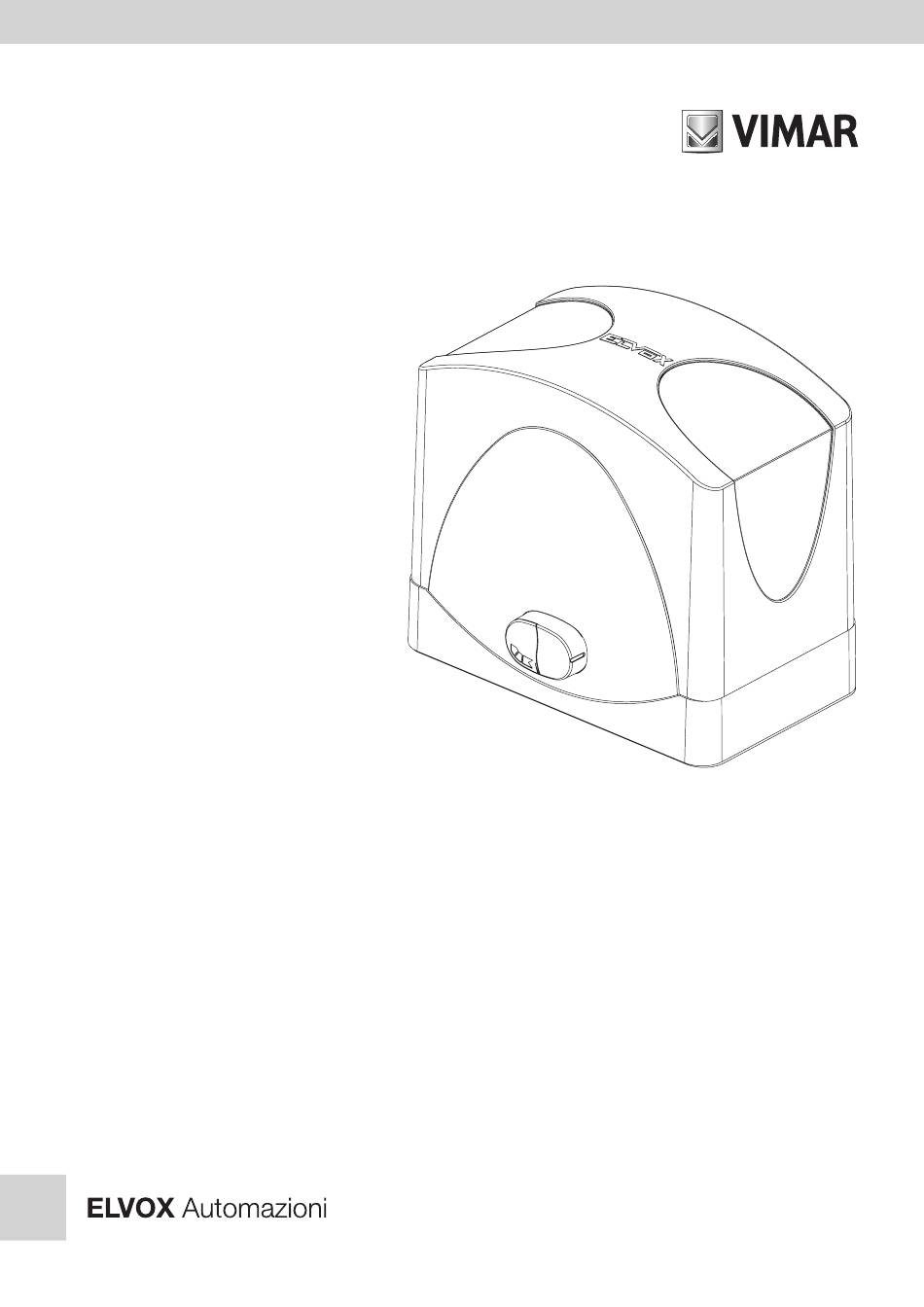

  • Page 1 Manuale installatore Installer Manual ESM2/ESM2.120 ESM2.D/ESM2.D.120 ESM2.W/ESM2.W.120 ESM2.W/ESM2.W.120 ESM2.1000.W/ESM2.1000.W120 Attuatore scorrevole 24 Vdc 24 Vdc Sliding actuator...
  • Page 2: Table Of Contents

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 Indice Pagina 1 - Caratteristiche generali .......................................1 2 - Impianto tipo ..........................................1 3 - Dimensioni e ingombri .........................................2 4 - Operazioni preliminari .........................................2 5 - Ancoraggio del motoriduttore ......................................3 6 - Regolazione in altezza e fissaggio del motoriduttore ..............................3 7 - Installazione della cremagliera ....................................4 8 - Installazione delle staffe di finecorsa ..................................5 9 - Collegamento alla rete elettrica....................................6...
  • Page 3: Caratteristiche Generali

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 1 - Caratteristiche di prodotto Automazione, ACTO 600D, per cancelli scorrevoli residenziali e condominiali ad uso intensivo. L’attuatore elettromeccanico irreversibile è dotato di un motore in bassa tensione, 24 Vdc, e uno sblocco meccanico che permette di aprire e chiudere il cancello manualmente. Il motore aziona un gruppo riduttorre, lubrificato con grasso permanente, racchiuso in una fusione d’alluminio di grosso spessore ma di ridottissimo ingombro.
  • Page 4: Dimensioni E Ingombri

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 3 - Dimensioni e ingombri Fig. 1 4 - Operazioni preliminari Fig. 2.1 Aprire lo sportellino di sblocco, inserire e ruotare la chiave di sblocco Fig. 2.4 Fig. 2.2 Fig. 2.3 Rimuovere il coperchio di sblocco, svitare la vite del pomello di sblocco, Reinserire il pomello di sblocco e rimuovere il pomello di sblocco e svi-...
  • Page 5: Ancoraggio Del Motoriduttore

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 5 - Ancoraggio del motoriduttore Individuato il luogo dove installare il motoriduttore (che può essere alla destra o alla sinistra del cancello), è possibile ancorare il motoriduttore al suolo in due modi: A) murando la piastra di fondazione in una piattaforma di calcestruzzo da realizzare B) ancorando la piastra a una piattaforma di calcestruzzo da realizzare o già...
  • Page 6: Installazione Della Cremagliera

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 7 - Installazione della cremagliera Prima di iniziare l’installazione della cremagliera controllare i fermi meccanici del cancello, nel caso non siano presenti o non robusti è necessario instal- larli (vedi figura 7) Fig.
  • Page 7: Installazione Delle Staffe Di Finecorsa

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 Iniziare il fissaggio del primo metro di cremagliera, spostando il cancello manualmente verso l’apertura verificando che appoggi correttamente con il pignone dell’attuatore. Accostare il secondo elemento della cremagliera al precedente, utilizzando un pezzo di cremagliera per allineare correttamente le dentature dei 2 ele- menti (vedi figura 10).
  • Page 8: Collegamento Alla Rete Elettrica

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 9 - Collegamento alla rete elettrica Svitare le quattro viti (A) e rimuovere il coperchio della sede del trasformatore. Forare il passacavo (B) situato nella base del motoriduttore e passare il cavo di alimentazione tripolare, sguainare fase e neutro per circa 30 cm e la terra per circa 5 cm.
  • Page 9 ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 SL24.W 21 22 0 1 1 2 10 11 0 A1 A2 99 31 32 Nero Bianco Marrone White Brown Marrone 24 Vdc Fig. 13.2 SL24.T Nero Bianco Marrone Marrone 24 Vdc Fig.
  • Page 10 ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 Contents: Page 1 - Product features ..........................................9 2 - System type..........................................9 3 - Dimensions and overall dimensions..................................10 4 - Preliminary procedures ......................................10 5 - Anchoring the gear motor......................................11 6 - Operator height adjustment and fixing ..................................11 7 - Mounting the rack ........................................12 8 - Mounting the limit switch brackets ....................................13 9 - Connecting to the power mains ....................................14...
  • Page 11: Product Features

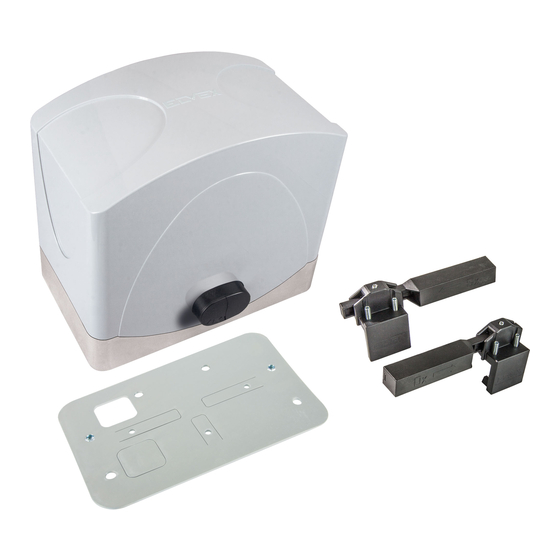

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 1 - Product features ACTO 600D automatic gate system for heavy-use residential and condominium sliding gates. The non-reversible, electromechanical actuator is equipped with a low-voltage 24 Vdc motor and a mechanical release which enables the gate to be opened and closed manually. The motor operates a gear unit, lubricated with permanent grease, which is enclosed in a thick but extremely compact die-cast aluminium housing.
  • Page 12: Dimensions And Overall Dimensions

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 3 - Dimensions and overall dimensions Fig. 1 4 - Preliminary procedures Fig. 2.1 Open the release flap, insert and turn the release key Fig. 2.4 Fig. 2.2 Fig. 2.3 Remove the release cover, loosen the screw on the release knob, remove the release knob and loosen Reposition the release knob and release...
  • Page 13: Anchoring The Gear Motor

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 5 - Anchoring the gear motor After identifying the position where you are going to install the gear motor (which can be to the right or left of the gate), you can anchor the gear motor to the ground in two ways: A) by bedding the base plate into a concrete plinth (to be constructed) B) by anchoring the plate to a concrete plinth (pre-existing or to be constructed) using 4 high-strength M10 metal anchor bolts (not supplied)
  • Page 14: Mounting The Rack

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 7 - Mounting the rack Before you start installing the rack, check the mechanical stops of the gate. If they are missing or not strong enough you need to install them. Fig. 7 If you are using the screw rack it is advisable to assemble the modules to verify that the fixing points do interfere with the movement of the wheels (see Figure 8).
  • Page 15: Mounting The Limit Switch Brackets

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 Start securing the first metre of rack, moving the gate manually towards the opening, checking that it rests properly with the pinion of the actuator. Move the second element of the rack near to the previous one, using a piece of rack to align the teeth of the 2 elements correctly (see figure 10). Fig.
  • Page 16: Connecting To The Power Mains

    ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 9 - Connecting to the power mains Loosen the four screws (A) and remove the cover from the transformer seat. Drill the cable outlet (B) situated in the gear motor base and thread the three-pole power supply cable through, stripping the phase and neutral for approxi- mately 30 cm and the earth for approximately 5 cm.
  • Page 17 ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120 SL24.W 21 22 0 1 1 2 10 11 0 A1 A2 99 31 32 Black Blue White Brown White Brown Brown 24 Vdc Fig. 13.2 SL24.T Black Blue White Brown Brown 24 Vdc Fig.
  • Page 18 ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120...
  • Page 19 ESM2, ESM2.120, ESM2.D, ESM2.D.120, ESM2.W, ESM2.W.120, ESM2.1000.W, ESM2.1000.W120...
  • Page 20 Viale Vicenza, 14 36063 Marostica VI - Italy 49401098A0 04 1901 www.vimar.com...
