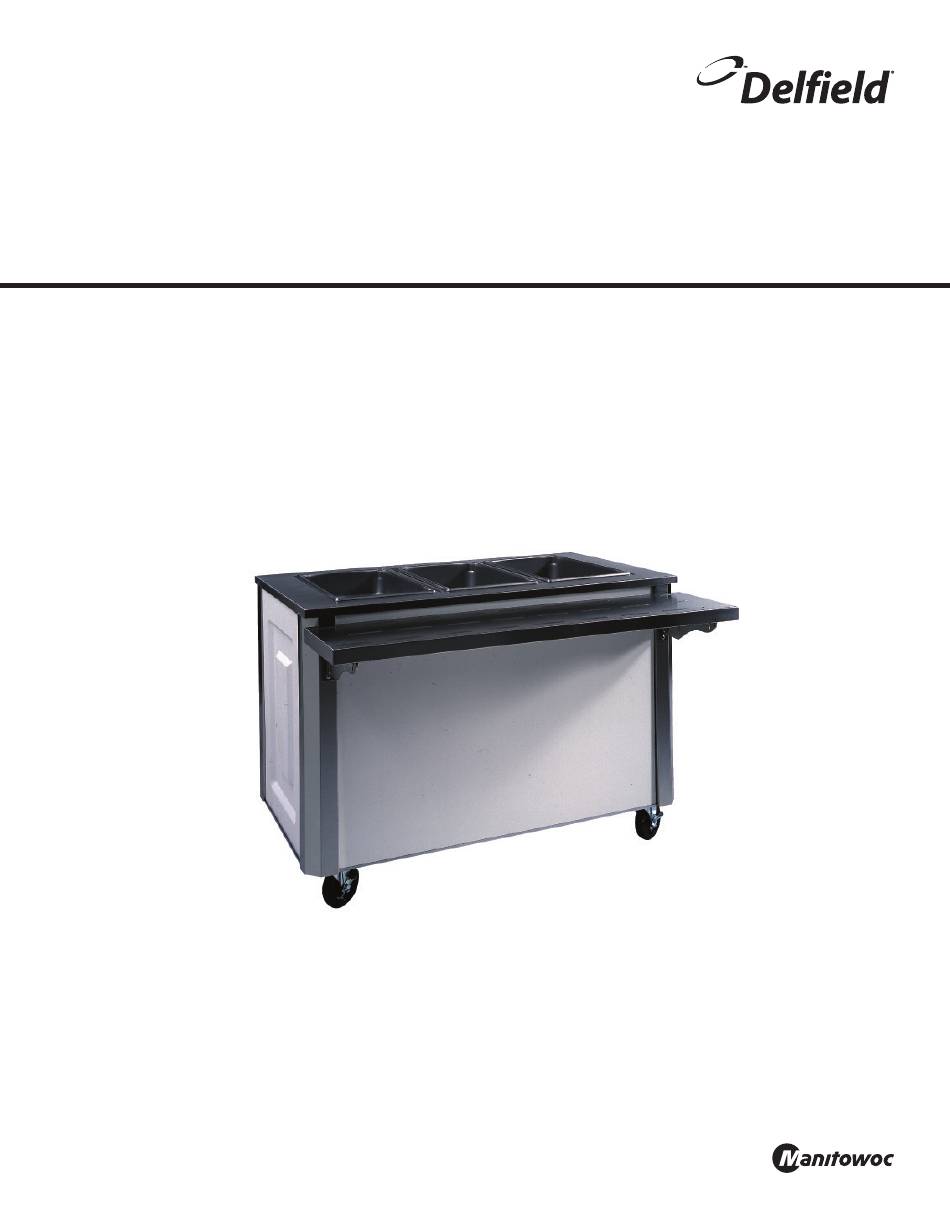

- Page 1 Shelleybasic™ Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9291494 4/15...
- Page 2 Shelleybasic by Delfield Service & Installation Manual Important Warning And Safety Information WARNING WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing Maintenance On The Equipment. WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage, Injury Or Death.
-
Page 3: Table Of Contents
Shelleybasic by Delfield Service & Installation Manual Contents Receiving And Inspecting The Equipment ......3 Serial Number Information............. 4 Warranty Information ............. 4 Regulatory Certifications ............4 Specifications ..............5-6 Installation ................7 Operation ................8-9 Reversing And Replacing Panels ........... 9 Maintenance .................10... -
Page 4: Serial Number Information
Always have the serial number of your unit available when calling for parts or service. A complete list of authorized Delfield parts depots is available at www.delfield.com. ©2014 The Delfield Company. All rights reserved. Reproduction without written permission is prohibited. -
Page 5: Specifications
Shelleybasic by Delfield Service & Installation Manual Specifications Heated Counters Food Model Ship Wt Wells Volts Plug SE-H2 39” 29” 36” 215lbs (98kg) 120/208-230 14-20P 10.0/11.0 SE-H3 50” 29” 36” 265lbs (120kg) 120/208-230 14-20P 15.0/16.0 SE-H4 64” 29” 36” 320lbs (145kg) - Page 6 Shelleybasic by Delfield Service & Installation Manual Specifications continued Frost Top Counters Sys. Evap BTU/ Model Ship Wt Volts Plug H.P. Ref Chrg. Load Cap. TD/Temp SE-F2 39” 29” 36” 370lbs (168kg) 5-15P 16.0 oz 1112 26/42°/-7° SE-F3 50” 29”...
-
Page 7: Installation
Shelleybasic by Delfield Service & Installation Manual Installation Location Moisture collecting from improper drainage can create a slippery surface on the floor Units represented in this manual are for indoor use only. Be and a hazard to employees. It is the owner’s... -
Page 8: Operation
Shelleybasic by Delfield Service & Installation Manual Operation SE-C And SES-C There is a switch on the right side of the compressor stand used These units are not designed to cool warm food products. Items to turn the unit on and off. -
Page 9: Operation
Shelleybasic by Delfield Service & Installation Manual Operation SE-F And SES-F Frost tops are designed to maintain an even layer of frost to Since it takes time for frost to accumulate initially, the unit should pleasantly display desserts and pies. Once turned on, the be turned on approximately an hour before it is actually required. -
Page 10: Maintenance
Shelleybasic by Delfield Service & Installation Manual Maintenance Never hose down interior or exterior of units with Common items include, tomatoes, peppers and water. This will void the warranty. Wipe interior dry other vegetables. of any water accumulation. CAUTION Cleaning the Condenser Coil... -
Page 11: Noes
Shelleybasic by Delfield Service & Installation Manual Notes... - Page 12 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
