Summary of Contents for BraunAbility RBC
Page 1
BUTTERFLY CLIPS User Manual Instructions for fitting and use...
Page 2
If you have any questions about your equipment, please contact us. Once again, thank you for placing your confidence in our products! Safe vehicle adaptation solutions For your safety BraunAbility products are designed and tested according to current directives and standards.
Page 3
RBC, RBCL Safety information Limitation of use Fit and use Fitting the Butterfly Clips onto the seat frame Space parts & ancillary items After care Equipment storage and maintenance Warranty “Declaration of conformity” at the end of the manual.
Page 5

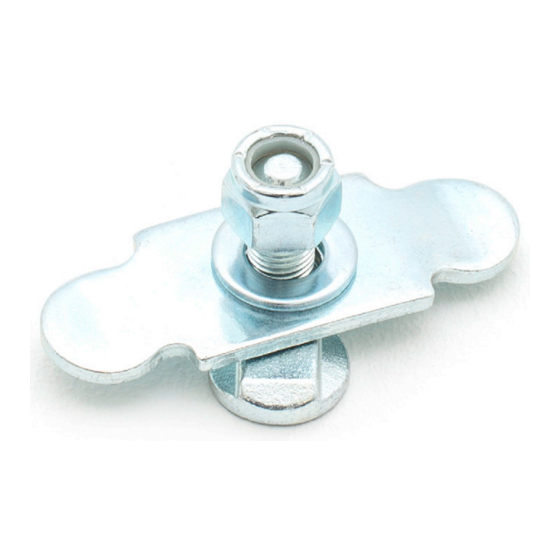

RBC, RBCL Butterfly Clip with M8 bolt - RBC Butterfly Clip with M10 bolt - RBCL...
Page 6
M2 Application Only Two pairs of Butterfly Clips are normally required for each seat. If it is intended that the seat should face the rear please contact BraunAbility. Place the fixings in the rails where the seat is to be positioned.
Page 7
RBC, RBCL Fit and use Space parts & ancillary items NC-U3/8-Z 3/8” UNF Binx Nut WA-M10-Z Washer RBCL NC-M10-Z M10, Nyloc Zinc Plate Nut WA-M10-Z Washer Additional washers and binx nuts can be purchased. Please contact sales office for details.
Page 8
BraunAbility have also participated in test programs with other manufacturers anchorage products and will support warranty on the BraunAbility products when used in conjunction with such jointly tested systems. For further details on specific applications please contact the Sales Office. In other situations, using BraunAbility products, for which BraunAbility has not participated in a joint test program, a limited BraunAbility warranty will apply.
Declaration of conformity Manufacturer / Conforms to following directives standards and regulations / BraunAbility UK Ltd Unwin House 2001/85/EC Annexe VII Paragraphs 3.8.2.8 & 3.8.2.9 The Horseshoe Coat Road 76/115/EEC Martock, Somerset, TA12 6EY R.14.07 R.107.06 BS EN 1789:2007+A2:2014 Phone: +44 1935 827740 E-mail: info@braunability.eu...
