Summary of Contents for Beko GN1306211ZDX

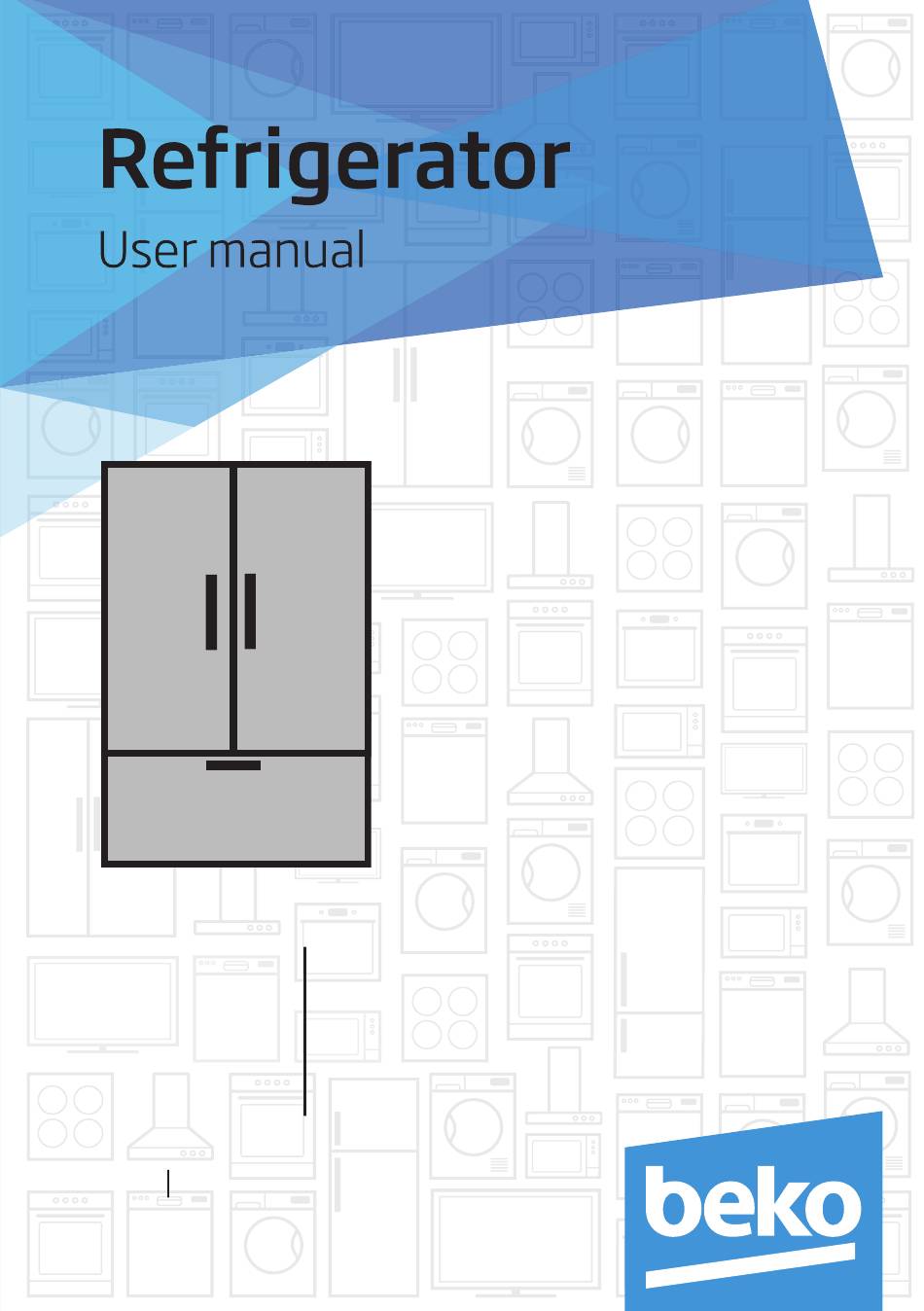

- Page 1 GN1306211ZDX...
- Page 2 Please read these instructions first before using your appliance Thank you for choosing a Beko appliance. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions.
-
Page 3: Table Of Contents
1. Safety and environment instructions 3 5 Operating the product 5.1 Indicator panel.....20 2 Your Refrigerator 5.2 Dual cooling system....21 5.3 Freezing fresh food . -
Page 4: Safety And Environment Instructions
Safety and environment instructions 1.1. General safety This section provides the safety instructions necessary to prevent the risk This product should not be used by • of injury and material damage. Failure to persons with physical, sensory and observe these instructions will invalidate mental disabilities, without sufficient all types of product warranty. -
Page 5: Important Instructions For Safety And Environment
Important instructions for safety and environment contact the electrified areas and cause Do not step or lean on the door, • short circuit or electric shock! drawers and similar parts of the Do not wash the product by spraying or •... -
Page 6: Intended Use
Important instructions for safety and environment This product has been manufactured Do not install on the hot water inlet. • with high quality parts and materials Take precautions against of the which can be reused and are suitable risk of freezing of the hoses. Water for recycling. -
Page 7: Your Refrigerator
Your Refrigerator Congratulations on your choice a Beko quality Appliance which has been designed to give you service for many years. 9- Crispers 1- Fridge compartment 10- İnner water dispenser 2- ButFreezer compartment 11- Adjustable glass shelf 3- Display/indicator panel 12- Blower 4- Butter &... -
Page 8: Installation
Installation Refer to the nearest Authorised Service Agent for • Do not place the product on the materials such installation of the product. To make the product as rugs or carpets. ready for use, make sure that the electricity • Place the product on an even floor surface to installation is appropriate before calling the prevent jolts. Authorised Service Agent. -
Page 9: Adjusting The Feet
Installation 3.6 Door open warning WARNING: Damaged power cable must (This feature may vary depending on the door be replaced by the Authorised Service of the product and may not exist in some Agents. models.) WARNING: If the product has a failure, it An audio warning signal will be given when the should not be operated unless it is repaired door of your product is left open for 1 minute. -
Page 10: Water Connection
Installation 3.7 Water connection -Upper hinge group is fixed with 3 screws. -The hinge cover is attached after the sockets are Depending on the model of the refrigerator, you installed. can connect it either to a demijohn or water mains. - Then the hinge cover is fixed with two screws. -
Page 11: Before Installation
Installation 3.7.1 Before Installation Make sure that you have everything necessary 3.10.1 Attaching the internal to ensure proper installation before proceeding, filter into the refrigerator including: Your product comes with an internal water filter for use inside the fridge. Part number of the filter is 4918450200 and you can use this part number when ordering replacement filters. - Page 12 Installation WARNING: WARNING: Ensure that the Ice Off mode Ensure that the Ice Off mode is enabled before removing the by-pass is enabled before removing the by-pass cover. cover. It is normal that a few drops of water drip It is normal that a few drops of water drip after the cover has been removed.
-
Page 13: Connecting The Water Hose To Demijohn
Installation 3.11 Connecting the water hose to demijohn (in some models) To make the water supply connection between the refrigerator and the demijohn, you must use a water pump. Follow the instructions below after connecting one end of the water hose coming out of the pump to the refrigerator. -
Page 14: Before Starting To Use The Water/Ice
Installation 3.12 Before starting to use the • First several glasses of water may be turbid water/ice dispenser when the filter is used for the first time. Therefore, do not consume the first several glasses of water. • If the water pressure is below 1 bar or a • If the water dispenser is not used for a long demijohn will be used, than a separate must be period of time, first 1-2 glasses of water can... -
Page 15: Transportation Of The Product
Installation • When taking water from the water dispenser, remove the glass from the opening 1 second after releasing the trigger. Thus, water in the system will not drip into the drip tray. 3.13 Transportation of the product 1. Unplug the product before transporting it. 2. -
Page 16: Preparation
Preparation 4.1 Things to be done for 4.2 Recommendations for the energy saving fresh food compartment • Do not allow the food to touch the temperature Connecting the product to electric energy sensor in fresh food compartment. To allow the saving systems is risky as it may cause fresh food compartment keep its ideal storage damage on the product. -
Page 17: Initial Use
Preparation 4.3 Initial use Before starting to use the product, check that all preparations are made in accordance with the instructions in sections "Important instructions for safety and environment" and "Installation". • Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning”... - Page 18 Preparation [36” F RENCH R EFRIGERATOR] DIMENSIONS PRODUCT D IMENSIONS Refrigerator / User Manual 17 / 33 EN...
- Page 19 Preparation [36” F RENCH R EFRIGERATOR] DIMENSIONS Freezer D oor O pen M ax ( Drawer) Height-‐Overall Height-‐TopOfCabinet ...
- Page 20 Preparation [36” F RENCH R EFRIGERATOR] DIMENSIONS Fresh F ood D oor O pen 9 0° Fresh F ood D oor O pen 1 30° ( Max) ...
-
Page 21: Operating The Product
Operating the product 5.1 Indicator panel Touch-control indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the refrigerator. Just press the relevant buttons for function settings. 1-On/Off function When vacation mode is activated, tempature of Press the On/Off button for 3 seconds to turn off or fresh food is hotter than 50 Fahrenheit degree(... -
Page 22: Dual Cooling System
Operating the product 5.2 Dual cooling system 11-Eco-Extra Indicator Your refrigerator is equipped with two separate Eco-Extra Indicator lits when the Eco Extra functi- cooling systems to cool the fresh food on is active. compartment and freezer compartment.Thus, 12-Quick Freeze Indicator air and odour in the fresh food compartment and This indicator lits when the Quick Freezer functi- frozen food compartment do not get mixed. -
Page 23: Recommendations For Preserving The Frozen
Operating the product Freezer Fridge Compartment Compartment Explanations Setting Setting -18°C / 0°F 4°C / 39°F This is the normal recommended setting. These settings are recommended when the ambient temperature -20°C / -4°F 3°C / 37°F exceeds 30°C/86°F. Use when you wish to freeze your food in a short time. Your Quick Freeze 4°C / 39°F refrigerator will return to its previous mode when the process is... -
Page 24: Placing The Food
Operating the product 5.5 Placing the food Foods to be frozen should not be allowed to come Freezer Various frozen food such in contact with the previously frozen items to compartment as meat, fish, ice cream, prevent them from getting thawed partially. shelves vegetables and etc. -
Page 25: Removing Door Shelves
Operating the product 5.7 Removing door shelves 5.9 Glass shelves You can remove the door shelves to clean them. You can remove the glass shelves to clean them. Push the desired shelf up to remove it. Be careful when removing the shelves since they Do not remove the door shelf when there is food are heavy. -
Page 26: Crisper
Operating the product 5.11 Crisper 5.13 Ice container Crisper of the refrigerator is designed specially The ice container is used for ice collection poured ice to keep the vegetables fresh without loosing their machine. Do not put water in it to make ice as it may humidity. -
Page 27: Butter & Cheese Section
Operating the product 5.14 Butter & Cheese section (in some models) Store food such as butter, cheese and margarine in this section. 5.15 Egg holder You can install the egg holder to the desired door or body shelf. Never keep the egg holder in the freezer compartment. -
Page 28: Odour Filter
Operating the product 5.19 Odour filter Take out the glass a little while after you pull the trigger. (in some models) Odour filter in the air duct of the fridge compartment prevents build-up of unpleasant odours in the refrigerator. 5.20 Using internal water dispenser (in some models) After connecting the refrigerator to a water source or replacing the water filter, flush the water... -
Page 29: Icematic
Operating the product 5.23 Icematic 5.24 Icematic and ice storage container (in some models) (in some models) To get ice from the icematic, fill the water tank in the fridge compartment with water up to the Using the Icematic maximum level. Fill the Icematic with water and place it into its Ice cubes in the ice drawer may stick to each ot- seat. -
Page 30: Refrigerator Shelf Weight Limitations
Operating the product 5.25 Refrigerator Shelf Weight Limitations Freshfood compartment centilever shelves, those that only have rear supports, are tested for max 25kg (55pounds) per each part. Crispers will hold up to 15kg (33pounds) per each one. Chiller zone will hold up to 20kg (44pounds). These are dynamic loads for crispers and chiller zone. -
Page 31: Maintenance And Cleaning
Maintenance and cleaning 6.1 Avoiding bad odours Service life of the product extends and frequently faced problems decrease if cleaned at regular Materials that may cause odour are not used in intervals. the production of our refrigerators. However, due to inappropriate food preserving conditions and WARNING: Unplug the product before not cleaning the inner surface of the refrigerator as... -
Page 32: Troubleshooting
Troubleshooting Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working. - Page 33 Troubleshooting • The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The cooler temperature is very low, but the freezer temperature is adequate. • The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.
- Page 34 Troubleshooting • The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product. The door is not closing. • Food packages may be blocking the door.
- Page 35 • Repairs necessary as a direct or indirect result of: - Accidental damage, misuse or abuse of a product. - An attempted repair of a product by anyone other than a Beko Approved Engineer (the “Engineer”). - Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet.
-
Page 36: Important Notes
11. Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Beko offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model but when this is not possible, a model of similar specification will be provided. - Page 37 If you are resident in the Republic of Ireland, this guarantee will be governed by Irish law and the Irish courts will have jurisdiction. This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8QU.
- Page 38 Beko Free standing appliances come with a 12 month parts and labour guarantee as standard, Beko Built-in appliances come with a 12 month parts and labour guarantee as standard. This is extended to 24 months, free of charge, upon registration of the appliance. When you register your appliance for additional guarantee, you will automatically activate the ProSmart Motor 10 year guarantee.
- Page 39 (GDPR). You can opt into this service during the registration process. Further details are available at http://www.beko.co.uk/cookie-and-privacy. 13. These Terms and Conditions are governed by the laws of England and Wales; manufacturer: Beko plc, Beko House, 1 Greenhill Crescent, Watford WD18 8QU. Company Registration Number: 02415578. HOW TO OBTAIN SERVICE FOR YOUR APPLIANCE Please keep your purchase receipt or other proof of purchase details in a safe place;...
- Page 40 Send us a secure message through our online contact us form. Please visit our website, click Contact Us and choose a product support topic from the list of options. Complete the required details and click send message. Product registrations For UK registrations please visit beko.co.uk/register and for the Republic of Ireland visit beko.ie/ register.
- Page 41 57 7863 0000/AF...
