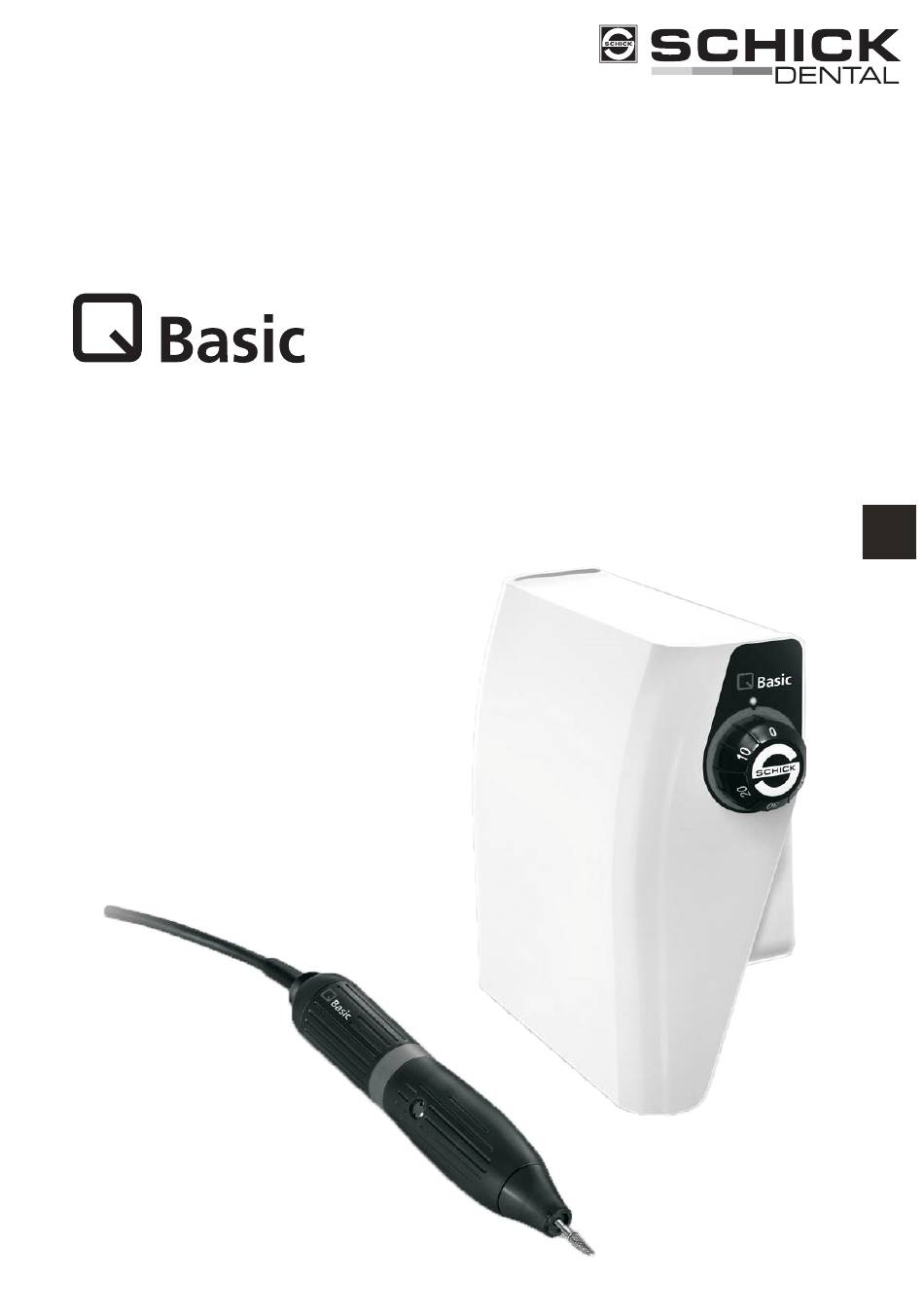

- Page 1 Original Operating Instructions...
-
Page 2: Table Of Contents
We are pleased that you decided to buy a highly developed piece of equipment from SCHICK and would like to wish you every success when working with your We wrote these operating instructions to enable you to get accustomed to your new piece of equipment and to provide you with the correct operating and maintenance instructions. -
Page 3: Safety Instructions
1. Safety Instructions 1.1 Ascertain that your mains supply coincides with the data on the rating plate. 1.2 - units are not suitable for the following applications: - in areas where there is a risk of explosion - for medical applications - for working on moist materials 1.3 Ensure that all regulatory requirements are observed during use - always wear protective glasses... -
Page 4: Summary - List Of Contents
3. Summary - List of contents art.no. kneeversion: foot control: art.no.: 9405 SK complete SF complete 9408 knee controller 9416 foot controller 9417 9400 motorhandpiece with cable motorhandpiece with cable 9400 handpiece rack 9127 handpiece rack 9127 with two keys for changing the chuck with two keys for changing the chuck 9415 mains cable... -
Page 5: Equipment/Optionals
4. Equipment/Optionals foot pedal switch (on/off) for dynamic foot control for connection to the table top model connection to the table top model art.no. 6370/2 art.no. 9440 chuck Ø 2,35mm 6642 chuck key 4115 counterstay wrench 6223 motorcable complete 9225 riveting hammer twin riveting hammer riveting hammer with chisel... -
Page 6: Switching On/Off
Initial start up and installation Connect the motorhandpiece to the ‚motorhandpiece‘ socket. Plug the power supply to the power supply socket on the control unit. . To switch on the device, the mains switch must be set to ‚ON‘ foot switch (table top model) motorhandpiece mains switch power supply... -
Page 7: Tool Change On Motorhandpiece
6. Tool change on motorhandpiece Hold firmly here close open By turning the gripsleeve on the hand piece, the chuck can be opened or closed Only carry out a tool change when the motor is switched off! To optimise the precision and durability of the chuck, the tool or the factory-supplied protective pin must always be in a fixed position, even when not in use. -
Page 8: Removing The Chuck
8. Cleaning and maintenance / Removing the chuck motor handpiece is designed for maximum durability and therefore, the chuck and the tip should be removed and cleaned from time to time. 8.1 Removal of chuck on the handpiece 9323 4320 9338 9225 6642 (2,35mm) -
Page 9: Errors
9. Errors If the handpiece is overloaded or blocked, the control unit switches off automatically to prevent further damage. Make sure the tool can rotate freely in the handpiece and after releasing foot lever or kne lever back to neutral position the unit can continue operation. If an error cannot be removed following the above description, please contact an authorised service partner or Schick directly. -
Page 10: Declaration Of Conformity
11. Declaration of Conformity We, the SCHICK GmbH Lehenkreuzweg 12 D-88433 Schemmerhofen declare herewith, that the products - consisting of - handpiece 9400 in combination with - control unit 9416, 9417 or 9418 are in conformity with the following provisions of Directive: 2001/95/EG (general product safety) 2006/42/EG...
