English
Operating Instructions
C1-Master
E
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1-Master and is the answer not in the manual?

Questions and answers

Summary of Contents for Schick Dental C1-Master

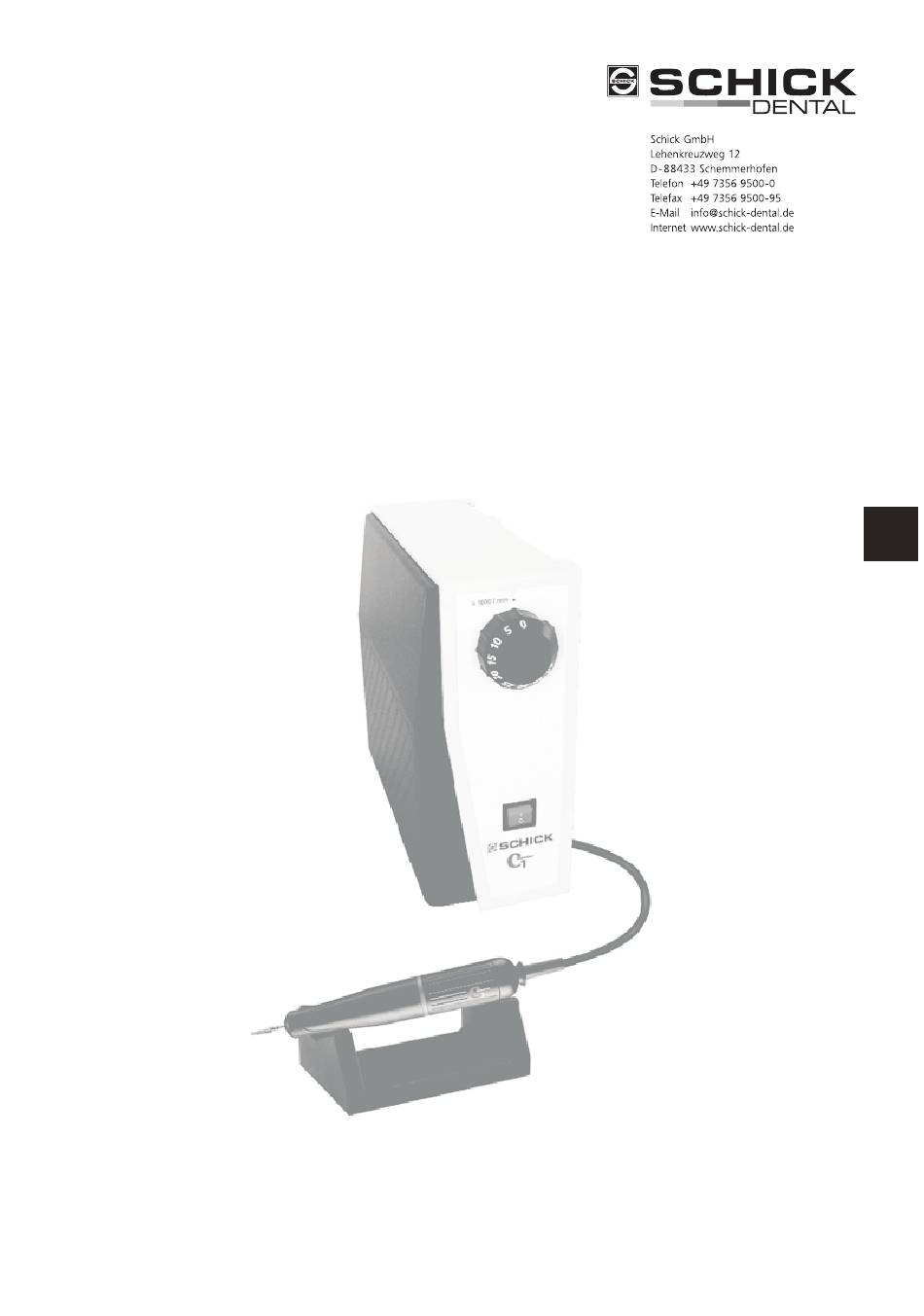

  • Page 1 English Operating Instructions C1-Master...
  • Page 2: Safety Information Caution

    The C1 Master unit is designed for universal use in 1.1 Ascertain that your mains supply coincides dental laboratories when trimming crowns and with the data on the rating plate. 1.2 C1-Master - units are not suitable for the bridges, respectively acrylic and light chrome cobalt dentures. following applications: - in areas where there is a risk of explosion With its speed range from 1.000 - 40.000 rpm the...
  • Page 3 3. Summary C1-Master units C1/SK complete article no. 3505 C1/SF complete article no. 3510 C1/ST complete article no. 3515 Accessories: digital indicator article no. 6380 NH / DNH riveting hammer(1) article no.1850 twin riveting hammer(2) article no. 1860 C1/MA C1-Master Motor with INTRAmatic-coupling...
  • Page 4 4. List of contents - accessories/spare parts article-no. 3505 C1/SK complete 3535 knee controller 1 C1/SK 3500 motorhandpiece and cable 2 C1/MH 9127 handpiece rack - with two keys for changing chuck 3 2160 mains cable 4 5614 suspension strip 5 3170 screws - 2 pieces - 6 3505/1...
  • Page 5 5. Setting up Operating the different versions operating with digital indicator see discription on page 6 all versions 5.1 Ascertain, that your mains supply coincides with the data on the rating system. 5.2 Plug the mains cable 9 into the unit 1 and into a mains socket.
  • Page 6 6. Operating the unit with a digital display knee and foot models only Insert the plug on the digital display 19 into the socket 18 in the rear of the unit. When the unit is switched on, the digital speed indicator shows the pre-selected maximum speed.
  • Page 7 8. Replacing the chuck 8.5 Clean the chuck, grease it lightly and place it in the spindle. Use the tools to screw the chuck 8.1 Remove the motor cable 15. T o do so unscrew the in - clockwise and as far as possible - as described cap 16 from the motor and loosen the cable by in section 8.4 - and tighten it slightly.
  • Page 8 11. T echnical Data C1/SK C1/SF C1/ST Dimensions: Width 107mm 225mm 225mm Height 243mm 110mm 110mm Dept 253mm 170mm 170mm Weight 3,7 kg 3,0 kg 2,9 kg C1/MH Length 158mm Weight 200g Power Supply: AC 220-240V 115V 100V Nominal frequency: 50/60Hz Power input: 175W This unit complies with the current VDE (German...
