Dacor MRES30 Planning Manual

Document # PG05-005
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
35"
(88.9 cm)
5/16" - 1 13/16"
8 mm - 46 mm)
Optional full size side panels
(ARSL30S, ARSR30S)
Removable (factory installed)
3" (7.6 cm) side panels

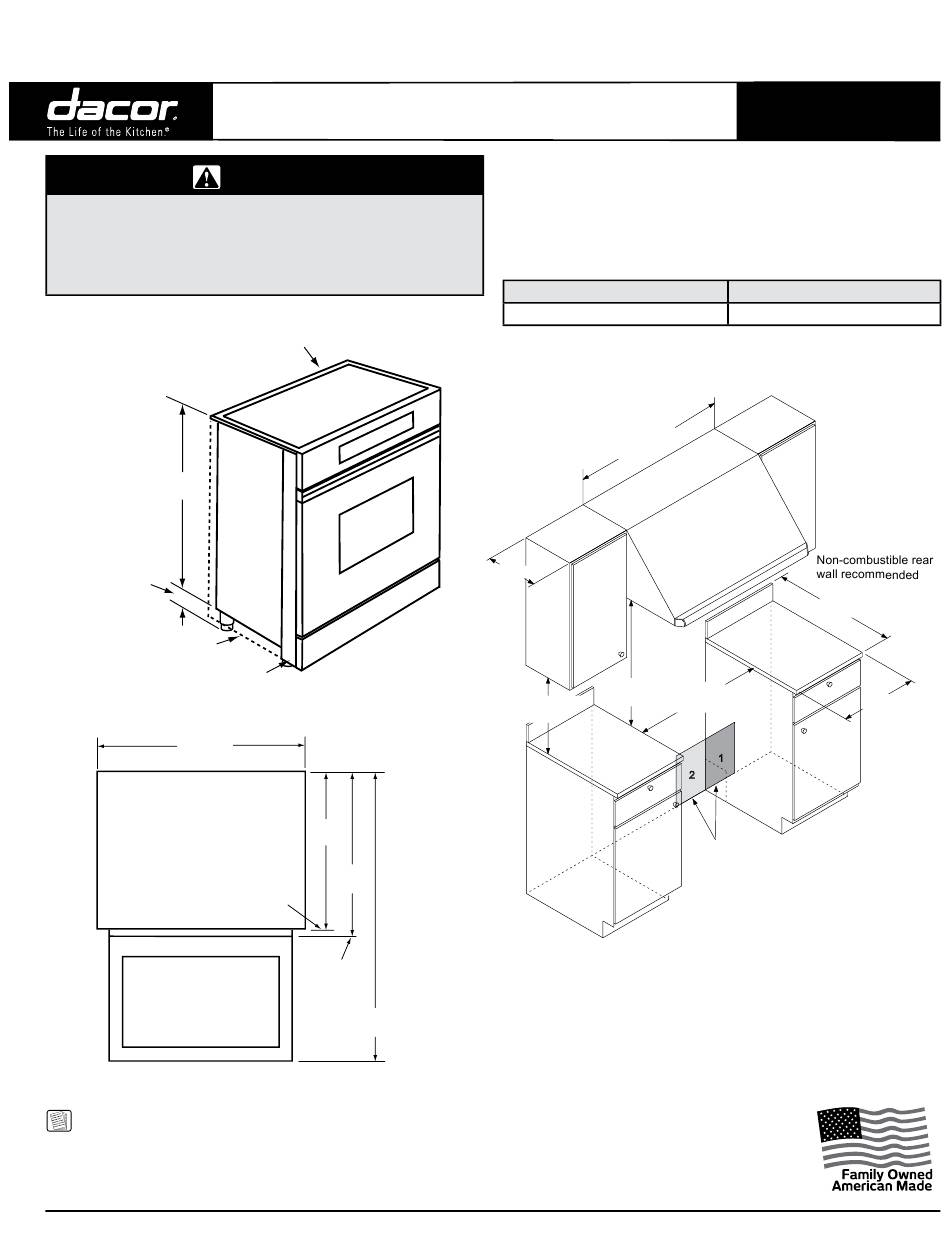

PRoDUct DIMENSIoNS - ISo VIEW

30"
(76.2 cm)
Range top
Door opened

PRoDUct DIMENSIoNS - toP VIEW

NOTES:
1. Electrical is located in the right rear corner of the unit.
2. Range is supplied with a 60" (1524 cm) long 240V 4-wire conduit.
Specifications subject to change without notice.
All manuals and user guides at all-guides.com
Renaissance
waRNiNg
60" (152.4 cm) long
240 Vac 4 wire
conduit location
23 1/2"
(59.7 cm)
25 5/16"
Rear of control (64.3 cm)
Panel/oven door
Max. depth
to oven door
handle with
door closed
45 1/4"
(114.9 cm)
MRES30
30 Inch Wide
® Electric Range
All tolerances: +1/16", -0, (+1.6mm, -0) unless otherwise stated
The optional full size side panels are for installation where the side of the
range will not be covered by the cabinet. For the right side panel, order
Dacor part number ARSR30S. Order part number ARSL30S for the left
side.
Dedicated Circuit Required
240 Vac, 60 Hz., 4-wire*, 50 Amp.
The above specifications are for reference only. See the product data label
for exact specifications.
36" (91.4 cm) recommended
30" (76.2 cm) min.
13" (33.0 cm)
max.
18" (45.7 cm)
min.*
For self-rimming cutout dimensions, see the following page.
www.dacor.com

ELEctRIcAL REqUIREMENtS

Hood
30" (76.2 cm)
30 1/16"
min.*
(76.4 cm)
1
2
Electrical locations**
1) Recommeded
2) Alternate
*
Vertical to combustible surface from cooktop surface
14"H (35.6 cm) X 10"W (25.4 cm)
**
Consult local code for exact location requirements

FREEStANDING cUtoUt DIMENSIoNS

Revised 10/01/10 Page 1/2
PLANNING
GUIDE
Total Connected Load
12.5 kW (48.2 Amp.)
25"
(63.5 cm)
Top of
finished
counter
10" (25.4 cm)
min. to
combustibles
side wall
(both sides)
5.12
Phone: (800) 793-0093
