MOUNTING JUNCTION BOX

The junction box can be mounted at the venter or remotely mounted away from the venter.
(See Figures 1 & 2)
1. Remove one of the knockouts from the side of the junction box. Install the fl exible conduit connector onto the
CK-20FV junction box and secure with fastening nut. If remote mounting the CK-20FV junction box, mount the
fl exible conduit connector onto a 2" x 4" installer supplied junction box.
2. Fasten the fl exible conduit from the SWG Venter into the conduit connector. Mount the CK-20FV junction box
or installer supplied junction box onto the wall or fl oor joist without straining the fl exible conduit. Fasten the
CK-20FV junction box through the four dimpled locations on the base of the box. (See Figure 1)
P/N 46285000 Rev K 01/18
page 2 of 8

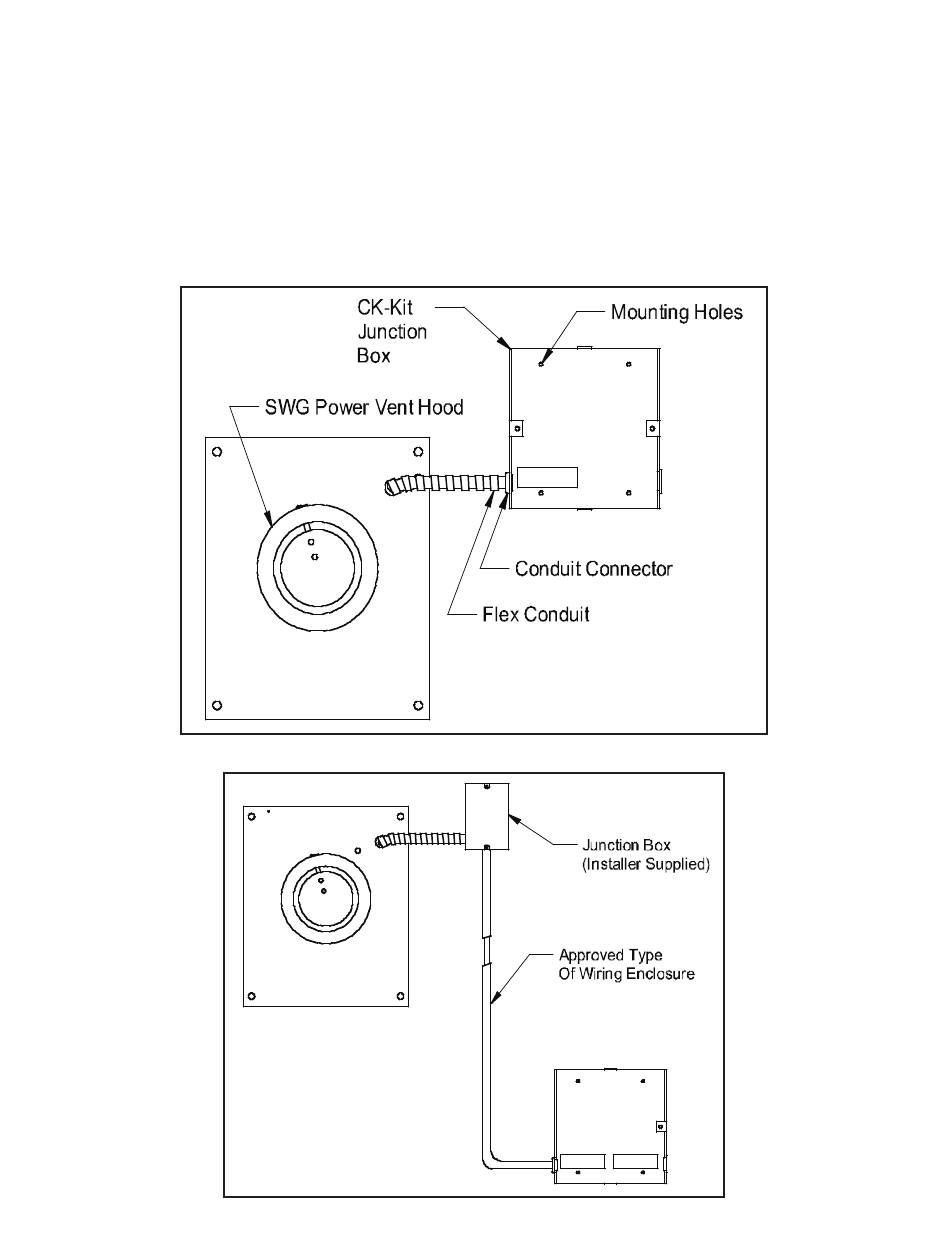

Figure 1
Figure 2
