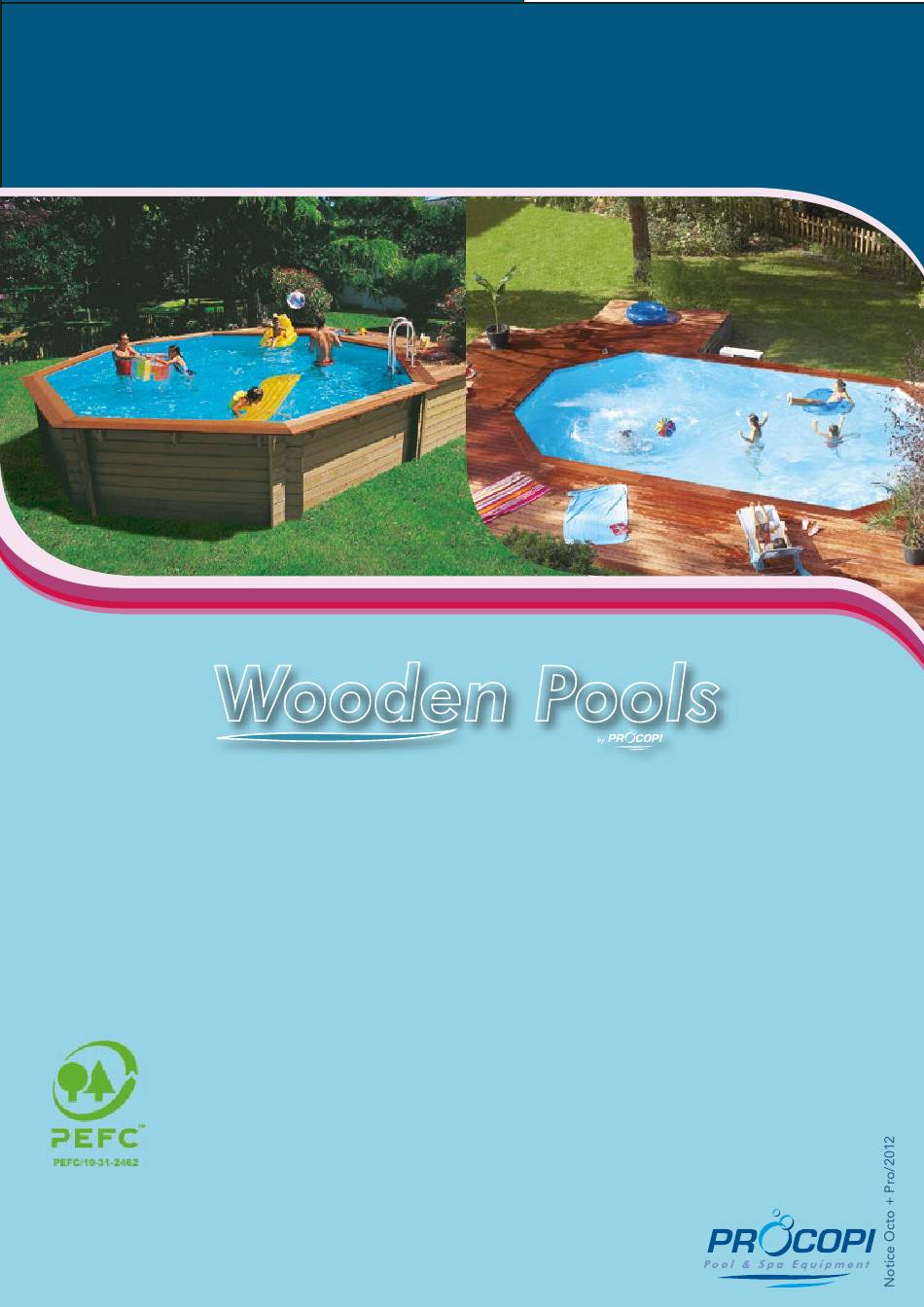

- Page 1 » NOTICE DE MONTAGE / OCTO + PRO PROFESSIONAL WOODEN POOLS OCTO+ PRO Wooden Pools Installation instructions To be read carefully and kept for future reference PROCOPI Les Landes d’Apigné B.P.45328 35650 Le RHeU Cedex FRANCe...
- Page 2 (knots, cracks, fl ashes) properties of the wood. For further information, please are entirely acceptable. refer to Procopi’s guarantees concerning the types of wood and their treatment. CAUTION storage. If you do not intend to assemble your pool immediately, you should store it without opening it in a well- ventilated room, or failing this, in an area protected from humidity and sunlight.
-
Page 3: Table Of Contents
» INSTALLATION INSTRUCTION / OCTO + PRO CONTENTS > > Foreword ................p.40 Storage & time required for assembly ....... p.40 Siting and preparation of the ground ......p.41 Assembly of the structure ..........p.42-46 Pool fitting ................p.47 Fitting the liner ..............p.48 Fitting the liner &... -
Page 4: Foreword
» INSTALLATION INSTRUCTIONS / OCTO + PRO FOREWORD > > Congratulations on acquiring your pool. We have taken great care with the design and manufacture of your pool to provide you with a top quality product. The wood used to make the various elements (interlocking walls, coping, ladder, etc.) was carefully selected. Outdoors, these wooden elements are subject to constant weathering: contact with the ground, temperature variations, exposure to sunlight, rain and frost, insect attack, etc. -
Page 5: Siting And Preparation Of The Ground
» INSTALLATION INSTRUCTION / OCTO + PRO SITING & PREPARATION OF THE GROUND > > This is the most important step in the procedure as the pool site will determine the service life of your pool. There are some rules that must be respected. Given the vast variation possible (slope, type and homogeneity of the ground, possible issues with drainage, etc) we cannot provide recommendations for every possible permutation here. - Page 6 » installation instructions / octo + Pro ASSEMBLY OF THE WOODEN STRUCTURE > > The pool structure is mounted in two stages: -Stage 1, excavation of the site and installation of the cradles designed to reinforce the lateral walls. A cradle comprises a cross beam, vertical posts and metallic plates to be bolted together.
- Page 7 » installation instruction / octo + Pro ASSEMBLY OF THE WOODEN STRUCTURE (CONT.) > > recommendations and advice: - Before beginning assembly, identify the various slat types with reference to the exploded view at the end of this document. - Establish the final orientation of your pool, the skimmer should be oriented facing into prevailing winds. The skimmer should be mounted on a side that starts with a type A slat.
-
Page 8: Assembly Of The Structure
» installation instructions / octo + Pro ASSEMBLY OF THE STRUCTURE (cont.) > > At this point, fit the skimmer into the machined slat (F). Slot the top skimmer slat (G) over slat F and continue around the pool, fitting 2 type h slats, 1 type l slat and 4 type J half-slats into position as shown. Attach a decorative trim (type K) to the end of each wall Working from the outside, screw the metallic posts (pre- using 4 3.1x75mm screws (bag L) inserted through holes... -
Page 9: Assembly Of The Structure
» installation instruction / octo + Pro ASSEMBLY OF THE STRUCTURE (cont.) > > Mount the support brackets along the long sides of the pools as illustrated in the images above. Mount an anchoring plate (coping support bracket kit) on On the wall holding the skimmer, position 1 coping each support bracket. - Page 10 » installation instructions / octo + Pro ASSEMBLY OF THE STRUCTURE (cont.) > > IMPORTANT! Before you begin to install the liner locking track, check that the structure was correctly assembled. - Using a spirit level, go around the entire structure checking that it is horizontal. - Check that the four diagonals are equal in length.
-
Page 11: Pool Fitting
» installation instruction / octo + Pro POOL FITTINGS > > Before fitting the liner, glue one of the 2 From the pool side, insert 2 throughwall flanges (pool fitting pack) rectangular self-adhesive gaskets (pool fitting common to the vacuum fitting and return fitting into the openings skin pack) around the mouth of the skimmer. -
Page 12: Fitting The Liner
» installation instructions / octo + Pro FITTING THE LINER > > IMPORTANT! The ideal temperature for laying liner is between 18° and 25°C. Outside this range, the liner will be either two rigid or too flexible and will be difficult to fit. On very hot days, lay the liner early in the morning. During cold weather (less than 18°C), store the liner somewhere warm for as long as possible to increase it’s suppleness and do not take it out until the last minute. - Page 13 » installation instruction / octo + Pro FITTING AND CUTTING OUT THE LINER > > Once the liner has been hung and is correctly 2 centimetres positioned, fill the pool with of water Push the crease from the centre towards the walls taking care to smooth out the liner as much as possible.
-
Page 14: Assembling The Filtration Group
» installation instructions / octo + Pro ASSEMBLY OF THE FILTRATION GROUP > > Before you continue to fill the pool, assemble the filter group. refer to the sand filter installation instructions and the pump operating instructions. Study these diagrams and the tables, they list the main components of the filtration system and the composition of the various packs. - Page 15 » installation instruction / octo + Pro Flowrate (in M/h) w/o directional Filter diameter Filtration surface Description Sand Volume filtered in 24 hours jet at the return fittings (in mm) area m FILTrATION pro GF5 13.52 m3/h 5x25kg 0.29 324.48m3 Description Description Union under the skimmer...
-
Page 16: Mounting The Rigid Descending Pipes
» installation instructions / octo + Pro MOUNTING RIGID DESCENDING PIPES > > Screw the unions onto the exterior outlets of the nozzles (return fitting and vacuum point), do not forget to correctly position the gaskets provided in the pool fitting skin pack. - Page 17 » installation instruction / octo + Pro INSTALLING THE FILTER > > Before installing the filter, and especially filling it with sand, make sure that it is in its final position and set properly into its base. Check that the drainage plug is in place. For details concerning filling of the filter and installation of the 6-way valve, refer to the installation instructions enclosed with the filter.
-
Page 18: Pump/Filter & Manifold Module
» installation instructions / octo + Pro PUMP FILTER & MANIFOLD MODULE > > Screw the 3 way manifold (F) onto the pump inlet. Do not forget the o-ring provided in the pump package. Cut a length of tube to size and then connect it, as illustrated, between the pump outlet and the 6-way valve. We recommend rigid PVC tubes for the descending sections of the pipework connected to pool... -
Page 19: Hydraulic Connections
» installation instruction / octo + Pro HYDRAULIC CONNECTIONS > > Connect tubes between the various pool fittings and the filtration group according to the diagram below. The filtration kit supplied with your pool is sized for installation of the filtration group at a distance of 3.5 m from the pool, hence the tube lengths are merely indicative. - Page 20 » installation instructions / octo + Pro LINER CUT OUTS > > Locate the holes in the throughwall flange and mark Stick the self-adhesive gaskets to the return fitting and them. vacuum fitting flanges. Screw the flange (fitted with its gasket) into place using Cut out the liner inside the vacuum fitting and return the countersunk SS screws M5x16 from the pool fitting fitting flanges.
-
Page 21: Liner Cut-Outs (Cont.) & Underwater Lights
» installation instruction / octo + Pro LINER CUT OUTS & UNDERWATER LIGHTS > > Cut away the liner inside the flange. Keep the off-cuts for future repairs. Clip the weir into place, smooth surface facing the pool. The weir should be able to swing freely. Mount the skimmer face plate. - Page 22 » installation instructions / octo + Pro COMMISSIONING & OPERATING THE FILTER SYSTEM > > COMMISSIONING AND OPErATING rECOMMENDATIONS WArNING: Carry out a back wash and rinse before using the filter for the first time to clean the filter and remove any excess sand and impurities (see the paragraph Filter and Valve operation).
- Page 23 » installation instruction / octo + Pro COMMISSIONING & OPERATING THE FILTER SYSTEM (contd) > > iMPORTAnT ! Your pool comes with a dechlorinator that removes chlorine from pool back wash water. By installing this product, you can recycle back wash water from your pool to water the garden, wash the car, etc. Refer to the installation and operating instructions enclosed with the dechlorinator.
- Page 24 » installation instructions / octo + Pro FITTING THE COPING > > Note the distribution of the various modules constituting the coping on the drawing. Arrange them on the coping support brackets taking care to orient them with the finely grooved surface facing upwards.
- Page 25 » installation instruction / octo + Pro FITTING THE COPING (cont.) > >...
-
Page 26: Assembly Of The Coping
» installation instructions / octo + Pro ASSEMBLING AND INSTALLING THE STAINLESS STEEL LADDER > > Assemble the various parts of the ladder referring to Position the ladder in the pool on the coping module the installation instructions provided. of your choice (except the wall holding the skimmer When mounting the hand rails, do not forget the or counter swim module), remember that it should be two rubber seals that will be used to hold the decorative... - Page 27 » installation instruction / octo + Pro ASSEMBLING AND POSITIONING THE WOODEN LADDER (cont.) > > The wooden ladder is fitted with two lever latches that lock it into position. The lever sections are fitted to the ladder supports and the hooks are mounted under the coping (these parts are enclosed in bag K). Observe how these 2 parts interact together to understand how the mechanism works and establish the travel necessary for the ladder to be locked correctly into position.
- Page 28 » installation instructions / octo + Pro IMPLEMENTATION FOR PARTIALLY IN-GROUND OR > > IN-GROUND POOLS CAUTION: This type of configuration must be protected by one of the four safety systems that comply with French safety standards concerning safety of in-ground pools; safety barrier, alarm, safety cover or a shelter. The decree no.
- Page 29 » installation instruction / octo + Pro Back fill around the pool, taking care not damage the Build your pool as described in the assembly instructions. structure. Apply an external protective film (special foundation grade insulating film, not provided) up to the height to which the pool will be buried.
- Page 30 » installation instructions / octo + Pro MAINTENANCE AND OPERATION > > Wood is a living material that responds to changes in temperature and humidity; cracks and splits may appear; this is natural and in no way impacts the service life of our products. The wooden components of this pool are subjected to an autoclave class IV treatment that complies with standards in effect, they present no danger to people or animals that may come into direct contact with the wood.
- Page 31 » installation instruction / octo + Pro MAINTENANCE & OPERATION (cont.) > > ACCeSSORIeS Electrical equipment such as underwater lights that require an electrical supply must be fitted and wired in according to the standards in effect. We recommend that you take great care in this matter and that you call on the services of qualified specialists.
-
Page 32: Safety
» installation instructions / octo + Pro SAFETY > > DO NOT PLAY WITH SAFETY ! ! ! In this fun environment you need to watch your children! You alone are responsible for their safety! Children should be closely supervised at all times. The risk is at its greatest when children are less than 5 years old. - Page 33 - Folds that remain upon fitting the liner despite following all the instructions regarding fitting of the liner should be reported immediately to your Procopi agent. The appearance of yellow stains or discolouration along the water line.
-
Page 34: Guarantee
» installation instructions / octo + Pro GUARANTEE (cont.) > > ARTICLE Subject and scope of the Term of the guarantee as of Conditions governing acceptance of a claim guarantee the date of purchase POOL Leaktightness and durability 10 years FITTINGS of the pool fittings ARTICLE... - Page 35 » installation instruction / octo + Pro EXPLODED VIEW > > Coping anhoring plate PVC liner locking track Counter swim slats Male/female slat Female slat Male slat...
- Page 36 » installation instructions / octo + Pro Notice Piscine Bois Octo+ Pro GF-5 01/2012 FR-GB - Indice de révision : B - Code : 97279999...
