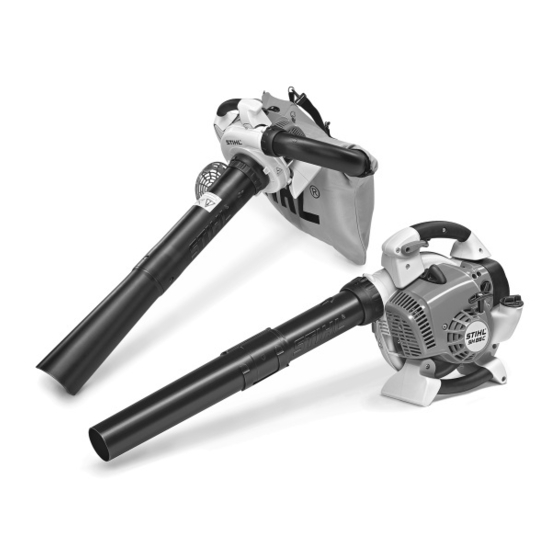

STIHL BG 56, 66, 86, SH 56, 86
Instruction Manual
Manual de instrucciones
WARNING
Read Instruction Manual thoroughly
before use and follow all safety
precautions – improper use can
cause serious or fatal injury.
ADVERTENCIA
Antes de usar la máquina lea y siga
todas las precauciones de
seguridad dadas en el manual de
instrucciones – el uso incorrecto
puede causar lesiones graves o
mortales.

Advertisement

Chapters

Table of Contents
loading

Related Manuals for Stihl SH 56

Summary of Contents for Stihl SH 56

  • Page 1 STIHL BG 56, 66, 86, SH 56, 86 Instruction Manual Manual de instrucciones WARNING Read Instruction Manual thoroughly before use and follow all safety precautions – improper use can cause serious or fatal injury. ADVERTENCIA Antes de usar la máquina lea y siga...
  • Page 2 Instruction Manual 1 - 32 Manual de instrucciones 33 - 69...

  • Page 3: Table Of Contents

    This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 4: Guide To Using This Manual

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 5 Keep your hands warm. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 6 To reduce the risk of injury, do not so it is above shoulder operate your blower unless it has a level. properly mounted blower tube. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 7 – risk of fire! Have the machine repaired by a servicing dealer before using it. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 8 For better footing, clear away fallen BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 9 Repeated and / or dust ("particulate matter"). When the substantial inhalation of airborne BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 10 The blower fan between the air intake and output openings rotates whenever the engine is running. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 11 Take particular care when vacuuming tube and catcher wet leaves since they may block the bag. blower wheel and elbow. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 12 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 13: Assembling The Blower

    ƒ is in line with the arrows – union nut snaps audibly into position. Shut down the engine. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 14: Assembling The Vacuum Shredder

    ‚ is in line with the arrows. Push the elbow into the recess in the fan housing stub (6) as far as stop. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 15 Remove the elbow. Removing the Suction Tube Shut down the engine. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 16: Fuel

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 17: Fueling

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 18: Starting / Stopping The Engine

    Do not pull out the starter rope all the been running but is still cold. way – it might otherwise break. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 19 Move the choke knob to < and continue cranking until the engine runs. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 20: Cleaning The Air Filter

    Wash the air filter in STIHL special cleaner (special accessory) or a clean, non-flammable solution (e.g. warm soapy water). Rinse the filter BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 21: Engine Management

    Engine stops while idling Turn the idle speed screw (LA) clockwise until the engine runs smoothly. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 22: Spark Plug

    This can result in serious injuries or Unscrew the spark plug. damage to property. Only use resistor type spark plugs with solid, non-threaded terminals BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 23: Engine Running Behavior

    Screw the spark plug (3) into the cylinder and fit the boot (2) (press it down firmly). BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 24: Spark Arresting Screen In Muffler

    STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 25: Maintenance And Care

    Replace STIHL recommends that this work be done by a STIHL servicing dealer. Not in all versions, country-specific BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 26: Main Parts

    23 Catcher Bag 24 Blower Tube Silencer (BG 66) Serial number * Depending on version – special accessory BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 27: Specifications

    Engine power to ISO 7293: BG 56: 0.7 kW (0.9 hp) BG 66: 0.6 kW (0.8 hp) BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 28 BG 66: 9.7 lbs (4.4 kg) BG 86: 9.7 lbs (4.4 kg) BG 86 C: 9.9 lbs (4.5 kg) BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 29: Maintenance And Repairs

    Contact your STIHL servicing dealer for the latest information on waste disposal. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 30: Stihl Incorporated Federal Emission Control Warranty Statement

    30 days. authorized dealer), parts, and labor. as required maintenance, or which is BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 31 Bring the product to any authorized caused by the failure of a warranted part STIHL servicing dealer. still under warranty. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 32: Stihl Incorporated California Exhaust And Evaporative Emissions Control Warranty Statement

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 33 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 34: Trademarks

    Micro ™ ® MasterWrench Service Pro Mark ™ ® MotoMix Quiet Line ™ ® OILOMATIC STIHL M-Tronic ™ BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 35 Este manual de instrucciones está protegido por derechos de propiedad intelectual. Todos los derechos reservados, especial - mente los derechos de reproducción, traducción y procesamiento con sistemas electrónicos. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 36: Acerca De Este Manual De Instrucciones

    STIHL para obtener la ramas pequeñas, pasto, papel, ayuda que requiera. desperdicios y polvo de patios, jardines, BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 37 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 38 (por ejemplo, impactos severos o una caída), siempre asegúrese que esté en buenas BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 39 Si BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 40 (únicamente para herramientas trabajo, aun durante el arranque. automáticamente a la posición BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 41 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 42 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 43 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 44 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 45 Siempre inserte el casquillo de la bujía bien apretado en el borne de la bujía del BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 46: Instalación Del Soplador

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 47 Empuje el tubo de soplado (2) en el tubo corto de la caja del soplador (3) hasta el tope. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 48: Armado De La Picadora Aspiradora

    (2) y abra la rejilla de flechas – la tuerca de unión emite admisión. un ruido al engancharse en su lugar. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 49 Siga girando la tuerca de unión hasta el tope siguiente en el sentido indicado por la flecha. Apague el motor. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 50: Combustible

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 51: Llenado De Combustible

    BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 52: Arranque / Parada Del Motor

    F en marcha hasta que se seque el combustible del carburador. Ajuste la perilla del estrangulador a < BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 53 Tire lentamente del mango de arranque hasta que sienta el enganche del mismo y en seguida dele un tirón fuerte y rápido. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 54: Limpieza Del Filtro De Aire

    Ahora arranque el motor. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 55: Gestión Del Motor

    Lave el filtro en un limpiador especial STIHL (accesorio especial) o una solución limpia y no inflamable (por ejemplo, agua BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 56: Ajuste Del Carburador

    – funcionamiento, por ejemplo, funcionando bajo carga parcial. Quite el casquillo de la bujía (1). Destornille la bujía. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 57: Funcionamiento Del Motor

    Use únicamente bujías de tipo resistor con bornes sólidos, sin roscas. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 58: Almacenamiento De La Máquina

    – fuera del alcance de los niños y de otras personas no autorizadas. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 59: Información Para Mantenimiento

    Cambiar después de cada 100 horas de funcionamiento Chispero en silenciador Revisar Solicitar al concesionario de servicio su sustitución BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 60 STIHL recomienda que un concesionario de servicio STIHL efectúe este trabajo. No se instala en todas las versiones, depende del país BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 61: Componentes Importantes

    24 Silenciador del tubo del soplador (BG 66) Número de serie * Depende de la versión – accesorio especial BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 62 Contiene la mezcla de combustible 23. Bolsa recolectora y aceite. Se instala en el codo para recoger la basura aspirada. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 63: Especificaciones

    (1,66 pulg cúb.) SH 86: 85 m/s (190 mph) Diámetro: 34 mm (1,34 pulg) Carrera: 30 mm (1,18 pulg) BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 64: Información De Reparación

    Comuníquese con un concesionario de servicio de STIHL para obtener la información más actualizada sobre la eliminación de desechos. BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 65: Garantía Limitada

    STIHL negligencia o cuidado inapropiado. Incorporated no puede negar garantía basado en el solo hecho de faltar los BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 66 BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 67 Tapa de tanque de combustible escrito por STIHL Incorporated, – Línea de combustible – Adaptadores de línea de – combustible BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 68: Declaración De Garantía De Stihl

    (para combustible líquido o en vapor), tapas de combustible, BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 69 Un componente de este tipo BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...

  • Page 70: Marcas Comerciales

    Incorporated demuestra el maltrato, ® MotoMix negligencia o mantenimiento incorrecto ® OILOMATIC del producto de STIHL, y que tal BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 71 FixCut ™ IntelliCarb ™ Master Control Lever ™ Micro ™ Pro Mark ™ Quiet Line ™ STIHL M-Tronic ™ BG 56, BG 56 C, BG 66, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C...
  • Page 72 California son considerados como causantes de of California to cause cancer, birth cáncer, defectos de nacimiento u otros efectos defects or other reproductive harm. nocivos para los órganos de la reproducción. 0458-296-8621-D englisch / spanisch USA englisch / spanisch USA www.stihl.com *04582968621D* 0458-296-8621-D...
