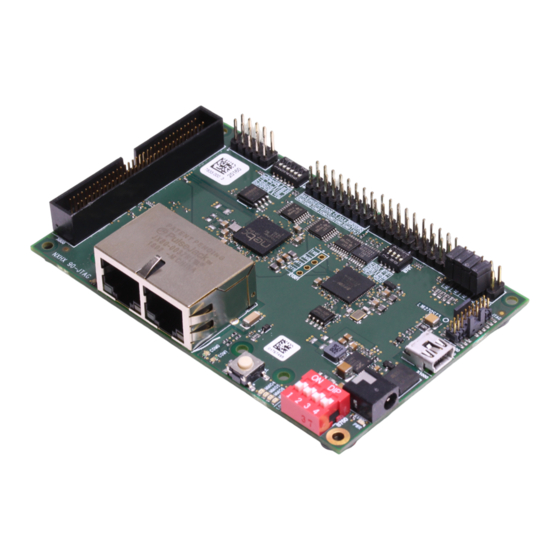

- Page 1 Device description NXHX 90-JTAG Development board Hilscher Gesellschaft für Systemautomation mbH www.hilscher.com DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public...
-
Page 2: Table Of Contents
3.2.3 NXHX-CO ....................... 43 3.2.4 NXHX-DN...................... 44 3.2.5 NXHX-CC...................... 44 NXHX-RS232 serial interface adapter ................ 45 NXHX-ENC module...................... 46 NXHX-IOL module ...................... 48 NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... - Page 3 Table of contents 3/82 NXAC-POWER voltage supply unit................ 51 Reference.......................... 52 Schematic diagrams....................... 52 4.1.1 Schematics NXHX 90-JTAG ................ 52 4.1.2 Schematics of the accessory devices ............. 63 Bills of materials ...................... 72 4.2.1 NXHX 90-JTAG.................... 72 4.2.2 NXHX-SDRSPM ..................... 75 4.2.3 NXHX-FTDI..................... 76 4.2.4...
-
Page 4: Introduction
Introduction 4/82 1 Introduction About this document 1.1.1 Description of the contents This document describes the hardware of the NXHX 90-JTAG development board. 1.1.2 List of revisions Index Date Revision 2017-06-22 Document created 2018-11-15 Document revised according to hardware revision 3 2019-01-08 Caption of table 30 on page 37 changed from “Pinning host... -
Page 5: Other Relevant Documentation
Introduction 5/82 Other relevant documentation Besides this device description, the following documents are also relevant to the user of the NXHX 90-JTAG development board: Title Contents Document ID Getting started: netX Studio CDT – netX 90 Getting started guide for netX 90 SoC... -
Page 6: Legal Notes
The manual delivered with the product shall apply. Under no circumstances shall Hilscher Gesellschaft für Systemautomation mbH be liable for direct, indirect, ancillary or subsequent damage, or for any loss of income, which may arise after use of the information contained herein. - Page 7 Introduction 7/82 Liability disclaimer The hardware and/or software was created and tested by Hilscher Gesellschaft für Systemautomation mbH with utmost care and is made available as is. No warranty can be assumed for the performance or flawlessness of the hardware and/or software under all application conditions and scenarios and the work results achieved by the user when using the hardware and/or software.
- Page 8 Additional guarantees Although the hardware and software was developed and tested in-depth with greatest care, Hilscher Gesellschaft für Systemautomation mbH shall not assume any guarantee for the suitability thereof for any purpose that was not confirmed in writing. No guarantee can be granted whereby the...
- Page 9 The customer hereby expressly acknowledges that this document contains trade secrets, information protected by copyright and other patent and ownership privileges as well as any related rights of Hilscher Gesellschaft für Systemautomation mbH. The customer agrees to treat as confidential all of the information made available to customer by Hilscher Gesellschaft für...
-
Page 10: Descriptions And Drawings
Descriptions and drawings 10/82 2 Descriptions and drawings Key features The NXHX 90-JTAG is a development board for the netX 90 SoC featuring: · Host interface connector by use case: – Companion chip with host interface: 8/16 bit parallel dual-port memory, 2 x SPI/SQI as serial dual-port memory –... -
Page 11: Overview
Descriptions and drawings 11/82 Overview 2.2.1 Block diagram Figure 1: NXHX 90-JTAG block diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 12: Positions Of Interfaces And Operating Elements
Descriptions and drawings 12/82 2.2.2 Positions of interfaces and operating elements Figure 2: Positions on NXHX 90-JTAG No. in Name Description For details see section figure X900 Connector for NXHX fieldbus adapter modules X900 – Connector for NXHX fieldbus adapter modules [} page 28]... -
Page 13: Table 4: Positions On Printed Circuit Board
X700 – ADC pin header [} page 27] (VREF_ADC) (24) P102 Matrix label Matrix label [} page 78] Table 4: Positions on printed circuit board NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 14: Operating Elements
90 development, DOC170504GSxxEN, (in chapter How to ... Use the Flasher tool). S400 settings for console mode: Switch 5 = ON Switch 6 = OFF or ON NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 15: Table 5: S400 For Configuring Console Mode And Alternative Boot Mode
GND via 1 kΩ Enables alternative boot mode (not yet supported) Table 5: S400 for configuring console mode and alternative boot mode NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 16: S401 - Reset Push Button
X902 for diagnosis/firmware download) Not connected User Enable ADCs (disables user LEDs) LEDs Enable user LEDs (disables ADCs) Table 8: S701 miscellaneous configuration NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 17: Interfaces
Not connected RESET# RESET# Not connected TRACE_CLK MLED0 TRACE_DATA_0 MLED1 TRACE_DATA_1 MLED2 TRACE_DATA_2 MLED3 TRACE_DATA_3 Table 9: Pin assignments MIPI-20 JTAG connector NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 18: X500 - Ethernet Connectors
* Bob Smith Termination Table 10: Ethernet RJ45 pin assignment For a description of the LEDs of the Ethernet connector, see section LEDs [} page 33]. NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 19: X600 - Host Interface
The pinning of the X600 host interface was especially designed to fit the different pinning layouts of the various host interface modules offered by Hilscher, therefore some of the pins share the same signals. Connect at this interface only modules that are listed in section Devices for host interface [} page 35]. -
Page 20: Table 11: Pin Assignment Of X600 According To Hif Mode
– – – – – – HIF_A15 DPM_A15 EXT_A15 SD_RAS# Table 11: Pin assignment of X600 according to HIF mode (1) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 21: Table 12: Pin Assignment Of X600 According To Hif Mode
– – – +3V3 – – PHY1_LED_LIN EXT_D4 SD_D4 K_IN Table 12: Pin assignment of X600 according to HIF mode (2) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 22: Table 13: Signal Options Of X600 Pins - Mmio And Internal Interfaces
– – – – – – – SPI0_APP_MISO Table 13: Signal options of X600 pins – MMIO and internal interfaces (1) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 23: Table 14: Signal Options Of X600 Pins - Mmio And Internal Interfaces (2)
– – – – – – – – Table 14: Signal options of X600 pins – MMIO and internal interfaces (2) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... - Page 24 – – – – – – – Table 15: Signal options of X600 pins – communication interfaces and digital I/O (1) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public...
-
Page 25: Table 15: Signal Options Of X600 Pins - Communication Interfaces And Digital I/O
– – – – PIO_APP6 CAN1_AP P_RX Table 16: Signal options of X600 pins – communication interfaces and digital I/O (2) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 26: X601 - Spm Host Interface Connector Via Sqi/Spi
SIRQ# SIRQ# +3V3 +3V3 DIRQ# DIRQ# SIO0 MOSI SIO1 MISO Not connected SIO2 Not connected SIO3 Table 18: Pin assignments X601 NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 27: X700 - Adc Pin Header
The reference voltage must not exceed 3.3 V; otherwise the netX 90 will be damaged! X700 Signal MMIO04/ADC0-0 VDDIO_AD MMIO05/ADC0-1 3V3_AD MMIO06/ADC1-0 +1V2 MMIO07/ADC1-1 +1V2 Table 19: Pin assignments X700 NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 28: X900 - Connector For Nxhx Fieldbus Adapter Modules
Table 20: Pin Assignment X900 For the technical details of the fieldbus adapter modules, see section Fieldbus interface adapter modules [} page 42]. NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 29: X901 - Connector For Nxhx-Enc, Nxhx-Iol And Standard Mmios
For technical details of the NXHX-RS232 module, see section NXHX- · RS232 serial interface adapter [} page 45]. For technical details of the NXHX-CO module, see section NXHX- · CO [} page 43]. NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 30: X902 - Connector For Nxhx-Rs232 Adapter Module (Uart)
Table 22: Pin assignments X902 For the technical details of the NXHX-RS232 adapter module, see section NXHX-RS232 serial interface adapter [} page 45]. NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 31: X1000 - Mini-B Usb Connector
Positions of interfaces and operating elements [} page 12]. X1001 Signal FTDI_U0_TXD FTDI_U0_RXD FTDI_U0_RTS FTDI_U0_CTS Table 24: Pin assignments X1001 NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 32: X1200 - Connector For +24 V Power Supply
[} page 12]. Socket Number Description 24 V ± 6 V DC GND Ground Table 25: Pin assignment power supply socket NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 33: Leds
The meaning of the COM0, COM1, LINK and ACTIVITY (RX/TX) LEDs depends on the communication protocol that is used on the NXHX 90-JTAG board. The meaning of the signaling of these LEDs is therefore not described in this document. NXHX 90-JTAG | Device description ©... -
Page 34: Table 27: System Status Led
(14) in section Positions of interfaces and operating elements [} page 12]] are intended for programming by the user of the NXHX 90-JTAG board. The meaning of the signaling of these LEDs is therefore not described in this document. Note: To enable the user defined LEDs, put switch 4 of S701 into ON... -
Page 35: Accessories
3.1.1 Overview This section describes the NXHX host interface devices that can be connected to the X600 host interface connector of the NXHX 90-JTAG board (for identifying the X600 connector on the board, see position (22) section Positions of interfaces and operating elements [} page 12]). -
Page 36: Table 29: Technical Data Nxhx- Sdrspm Device
68 pin, female (at bottom side) Dimensions 65 x 30 mm Order number 7703.080 Table 29: Technical data NXHX- SDRSPM device NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 37: Table 30: Pinning Host Interface Of Nxhx-Sdrspm Device
SD_D12 SD_DQM0 SD_D11 SD_D7 SD_D10 SD_D6 SD_D9 SD_D5 SD_D8 +3.3 V SD_RAS# SD_D4 Table 30: Pinning host interface of NXHX-SDRSPM device NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 38: Nxhx-Ftdi: Serial Dual-Port Memory Via Usb Device At Host Interface
Host interface, soldered side (connector is at bottom side) AOI manufacturing label X101 Reserved serial interface Matrix label (at bottom side) Table 32: Positions in figure NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 39: Table 33: Technical Data Nxhx-Ftdi Device
+3.3 V RSTIN# SPM_SIO3 SPM_SIO2 SPM_SIRQ# SPM_DIRQ# SPM_CLK SPM_CS# SPM_MOSI SPM_MISO +3.3 V Table 34: Pinning host interface X400 of NXHX-FTDI device NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 40: Nxpca-Pci: Parallel Dual-Port Memory At Host Interface
Table 35: Pinning of USB interface 3.1.4 NXPCA-PCI: Parallel Dual-Port Memory at host interface The NXHX 90-JTAG can be accessed from a PC via the NXPCA-PCI card (part number 7902.100), using the X600 host interface as parallel dual-port memory. Figure 5: NXHX 90-JTAG connected to NXPCA-PCI Board For further information about the NXPCA-PCI card, please refer to the user manual NXPCA-PCI –... -
Page 41: Accessory Cables And Connectors For Host Interface
3.1.5 Accessory cables and connectors for host interface 3.1.5.1 CAB-NXPCA-PCI The CAB-NXPCA-PCI cable can be used to connect the host interface X600 of the NXHX 90-JTAG with the Hilscher NXPCA-PCI Card or other host devices. CAB-NXPCA-PCI Value Part number 4400.000... -
Page 42: Fieldbus Interface Adapter Modules
3.2.1 Overview This section describes the NXHX fieldbus adapter modules that can be mounted on the X900 fieldbus connector of the NXHX 90-JTAG board (for identifying the X900 connector on the board, see position in section Positions of interfaces and operating elements [} page 12]). -
Page 43: Nxhx-Dp
CAN H CAN bus high 1, 4, 5, n. c. 6, 8, 9 9 pin, D-Sub, male Table 43: CANopen pin assignment NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 44: Nxhx-Dn
Field ground, internally connected to SLD and PE. Internally connected via 3.3 nF to DG. COMBICON socket, female Table 47: CC-Link pin assignment NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 45: Nxhx-Rs232 Serial Interface Adapter
NXHX-RS232 serial interface adapter This section describes the NXHX-RS232 adapter module that can be mounted on the serial interface connector X902 of the NXHX 90-JTAG board (for identifying the X902 connector on the board, see position section Positions of interfaces and operating elements [} page 12]). -
Page 46: Nxhx-Enc Module
Matrix label X102 Single-ended connector for encoder X103 Differential connector for encoder AOI manufacturing label Table 50: Positions on NXHX-ENC NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 47: Table 51: Pin Assignments X102
S700 to OFF position. For identifying S700 on the board, see position (13) in section Positions of interfaces and operating elements [} page 12]. NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 48: Nxhx-Iol Module
NXHX-IOL module This section describes the NXHX-IOL module, which is an IO Link interface adapter that can be mounted on the X901 connector of the NXHX 90-JTAG board. For identifying the X901 connector on the board, see position section Positions of interfaces and operating elements [} page 12]. -
Page 49: Figure 8: Nxhx-Iol
Table 55: Pin assignment IO Link connector Pin assignments of supply voltage: Mini Combicon Signal +24 V Table 56: Pin assignment supply voltage NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 50: Figure 9: Software Reset Enabled (Out_I/Q Signal Disabled)
To enable the OUT_I/Q signal of the driver (and thus disable the reset-by- software option), you must set the S1 switch to the lower position: Figure 10: OUT_I/Q signal enabled (Software reset disabled) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 51: Nxac-Power Voltage Supply Unit
NXAC-POWER voltage supply unit Hilscher recommends using the NXAC-POWER supply unit (CINCON TR15RA240) as voltage supply for the NXHX 90-JTAG board. The unit is included in the delivery of the NXHX 90-JTAG board. The power supply NXAC-POWER has the following technical data: NXAC-POWER... -
Page 52: Reference
Reference 52/82 4 Reference Schematic diagrams 4.1.1 Schematics NXHX 90-JTAG This section provides the schematics of the NXHX 90-JTAG board for the following items: · netX 90 CPU core · Power supply of netX 90 on NXHX 90-JTAG board System ·... -
Page 53: Figure 11: Netx 90 Cpu Core Schematic Diagram
Reference 53/82 4.1.1.1 netX 90 CPU Figure 11: netX 90 CPU core schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 54: Figure 12: Netx 90 Power Supply Schematic Diagram
Reference 54/82 4.1.1.2 Power supply netX 90 Figure 12: netX 90 power supply schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 55: Figure 13: System Schematic Diagram
Reference 55/82 4.1.1.3 System Figure 13: System schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 56: Figure 14: Ethernet Interface Schematic Diagram
Reference 56/82 4.1.1.4 Ethernet interface Figure 14: Ethernet interface schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 57: Figure 15: Host Interface Schematic Diagram
Reference 57/82 4.1.1.5 Host interface Figure 15: Host interface schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 58: Figure 16: Io/Adc Schematic Diagram
Reference 58/82 4.1.1.6 IO/ADC Figure 16: IO/ADC schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 59: Figure 17: Switching Matrix Schematic Diagram
Reference 59/82 4.1.1.7 Switching matrix Figure 17: Switching matrix schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 60: Figure 18: Extension Boards Schematic Diagram
Reference 60/82 4.1.1.8 Extension boards Figure 18: Extension boards schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 61: Figure 19: Ftdi To Usb Schematic Diagram
Reference 61/82 4.1.1.9 FTDI to USB Figure 19: FTDI to USB schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 62: Figure 20: +24V Power Supply Schematic Diagram
Reference 62/82 4.1.1.10 +24V Power supply Figure 20: +24V Power supply schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 63: Schematics Of The Accessory Devices
This section provides the schematics of the following accessory devices of the NXHX 90-JTAG board: NXHX-SDRSPM · · NXHX-FTDI · NXHX-ENC NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 64: Figure 21: Nxhx-Sdrspm Connector Schematic Diagram
Reference 64/82 4.1.2.1 NXHX-SDRSPM Figure 21: NXHX-SDRSPM connector schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 65: Figure 22: Nxhx-Sdrspm Sdram Schematic Diagram
Reference 65/82 Figure 22: NXHX-SDRSPM SDRAM schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 66: Figure 23: Nxhx-Sdrspm Ftdi Schematic Diagram
Reference 66/82 Figure 23: NXHX-SDRSPM FTDI schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 67: Figure 24: Nxhx-Ftdi Schematic Diagram (P1118501)
Reference 67/82 4.1.2.2 NXHX-FTDI Figure 24: NXHX-FTDI Schematic Diagram (P1118501) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 68: Figure 25: Nxhx-Enc Master Schematic Diagram
Reference 68/82 4.1.2.3 NXHX-ENC Figure 25: NXHX-ENC master schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 69: Figure 26: Nxhx-Enc Bus Driver Schematic Diagram
Reference 69/82 Figure 26: NXHX-ENC bus driver schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 70: Figure 27: Nxhx-Enc Rs-485 Driver Schematic Diagram
Reference 70/82 Figure 27: NXHX-ENC RS-485 driver schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 71: Figure 28: Nxhx-Enc Power Supply Schematic Diagram
Reference 71/82 Figure 28: NXHX-ENC power supply schematic diagram NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 72: Bills Of Materials
959-0862 SN74CBTLV3257PW Texas 2:1, 4X Instruments P1205 LED green SMD0603 LED25107 19-213/G6C-BM1N2/3T Everlight P400 LED yellow/green SMD HSMF-C166 Avago (Broadcom) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... - Page 73 Yageo R500 R504 R506 Resistor SMD 0402 32.19.24 120R 63mW 1% SMD 0402 Samsung R508 R502 Diode SMD BAS316,115 Qualcomm NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public...
- Page 74 GmbH X900 X901 X902 Pin header 2*5pol. 102.126.010.26 12.6mm FJH Stecker- verbindung GmbH Table 58: Bill of material NXHX 90-JTAG NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public...
-
Page 75: Nxhx-Sdrspm
FJH Stecker- pin (2x34) verbindung GmbH Mini USB socket 54819-0519 XUSBB5BW-MINI Molex Table 59: Bill of material NXHX-SDRSPM (7703.080 Revision 1) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 76: Nxhx-Ftdi
Socket terminal strip 68 pin 127ST-068SB BL "1.27x2.54" 68 pin FJH Stecker- (2x34) verbindung GmbH Table 60: Bill of material NXHX-FTDI (7703.050 Revision 2) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 77: Nxhx-Enc
10pol. RM 2.54 Steckerverbindung GmbH X102 X103 Jumper strip 2*3pol. 102.113.006.26 11.3mm Steckerverbindung GmbH Table 61: Bill of material NXHX-ENC (7924.000 Revision 2) NXHX 90-JTAG | Device description © Hilscher 2019 DOC170202HW03EN | Revision 3 | English | 2019-01 | Released | Public... -
Page 78: Matrix Label
Reference 78/82 Matrix label The NXHX 90-JTAG board is equipped with a matrix label. For identifying the label on the board, see position (24) in section Positions of interfaces and operating elements [} page 12]. The label indicates: Part number · ·... -
Page 79: List Of Figures
Figure 3: NXHX-SDRSPM ....................35 Figure 4: NXHX-FTDI printed circuit board................38 Figure 5: NXHX 90-JTAG connected to NXPCA-PCI Board ..........40 Figure 6: Fieldbus connector (dimensions in mm)............... 42 Figure 7: NXHX-ENC printed circuit board ................46 Figure 8: NXHX-IOL...................... -
Page 80: List Of Tables
Pin assignments of Mini-B USB connector ............. Table 24: Pin assignments X1001 ..................Table 25: Pin assignment power supply socket..............Table 26: LEDs on the NXHX 90-JTAG.................. Table 27: System Status LED....................Table 28: Positions in figure ....................Table 29: Technical data NXHX- SDRSPM device .............. - Page 81 Pin assignment supply voltage ................Table 57: Technical data power supply NXAC-POWER ............Table 58: Bill of material NXHX 90-JTAG ................Table 59: Bill of material NXHX-SDRSPM (7703.080 Revision 1) ......... Table 60: Bill of material NXHX-FTDI (7703.050 Revision 2)..........
-
