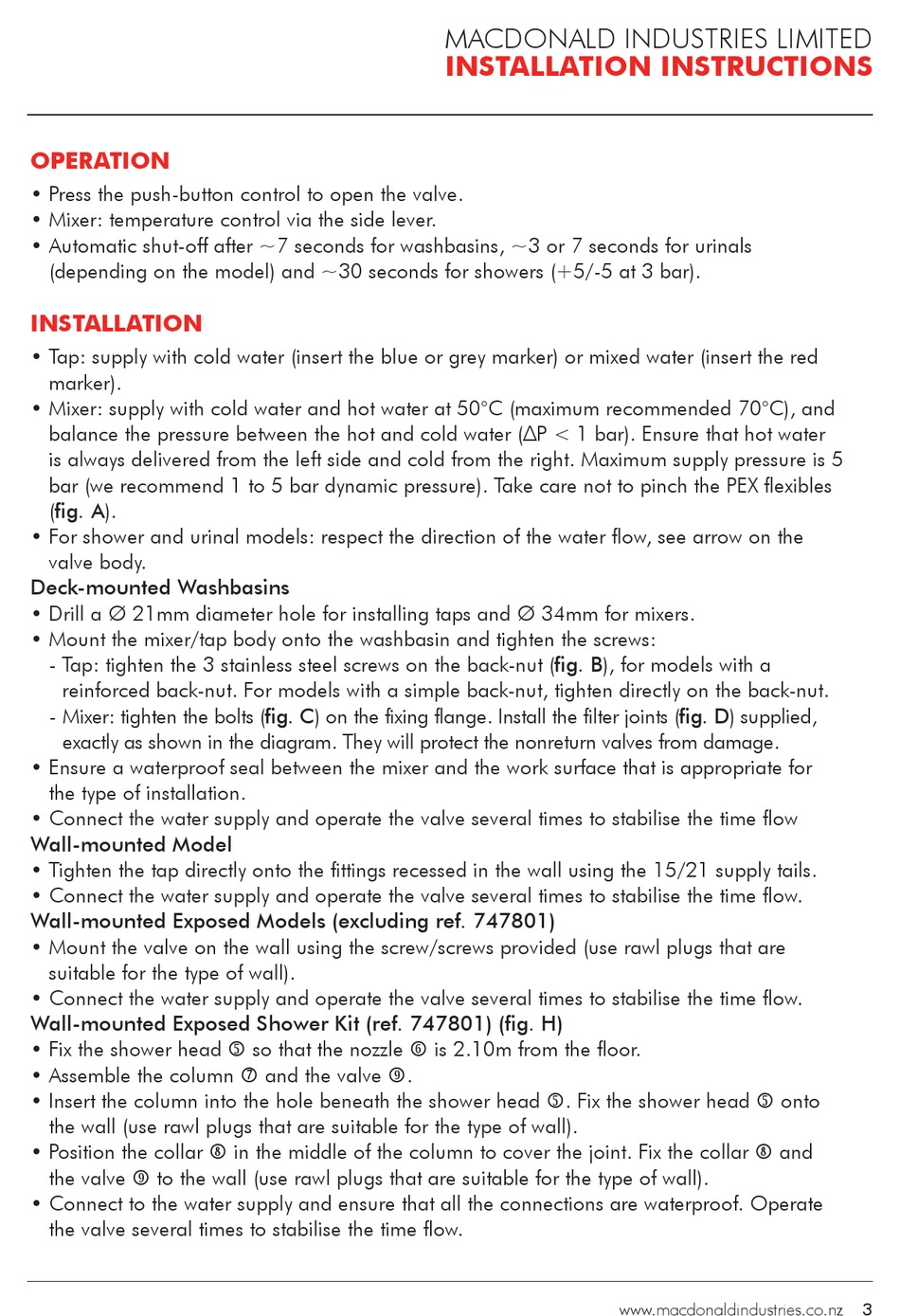

OPERATION

• Press the push-button control to open the valve.
• Mixer: temperature control via the side lever.
• Automatic shut-off after ~7 seconds for washbasins, ~3 or 7 seconds for urinals
(depending on the model) and ~30 seconds for showers (+5/-5 at 3 bar).

INSTALLATION

• Tap: supply with cold water (insert the blue or grey marker) or mixed water (insert the red
marker).
• Mixer: supply with cold water and hot water at 50°C (maximum recommended 70°C), and
balance the pressure between the hot and cold water (ΔP < 1 bar). Ensure that hot water
is always delivered from the left side and cold from the right. Maximum supply pressure is 5
bar (we recommend 1 to 5 bar dynamic pressure). Take care not to pinch the PEX flexibles
(fig. A).
• For shower and urinal models: respect the direction of the water flow, see arrow on the
valve body.

Deck-mounted Washbasins

• Drill a Ø 21mm diameter hole for installing taps and Ø 34mm for mixers.
• Mount the mixer/tap body onto the washbasin and tighten the screws:
- Tap: tighten the 3 stainless steel screws on the back-nut (fig. B), for models with a
reinforced back-nut. For models with a simple back-nut, tighten directly on the back-nut.
- Mixer: tighten the bolts (fig. C) on the fixing flange. Install the filter joints (fig. D) supplied,
exactly as shown in the diagram. They will protect the nonreturn valves from damage.
• Ensure a waterproof seal between the mixer and the work surface that is appropriate for
the type of installation.
• Connect the water supply and operate the valve several times to stabilise the time flow

Wall-mounted Model

• Tighten the tap directly onto the fittings recessed in the wall using the 15/21 supply tails.
• Connect the water supply and operate the valve several times to stabilise the time flow.
Wall-mounted Exposed Models (excluding ref. 747801)
• Mount the valve on the wall using the screw/screws provided (use rawl plugs that are
suitable for the type of wall).
• Connect the water supply and operate the valve several times to stabilise the time flow.
Wall-mounted Exposed Shower Kit (ref. 747801) (fig. H)
• Fix the shower head  so that the nozzle  is 2.10m from the floor.
• Assemble the column  and the valve .
• Insert the column into the hole beneath the shower head . Fix the shower head  onto
the wall (use rawl plugs that are suitable for the type of wall).
• Position the collar  in the middle of the column to cover the joint. Fix the collar  and
the valve  to the wall (use rawl plugs that are suitable for the type of wall).
• Connect to the water supply and ensure that all the connections are waterproof. Operate
the valve several times to stabilise the time flow.
