DEVICE PLACEMENT AND SETUP

Rapsodo HITTING 2.0 operates in a tank. Correct positioning
is important to get accurate results.

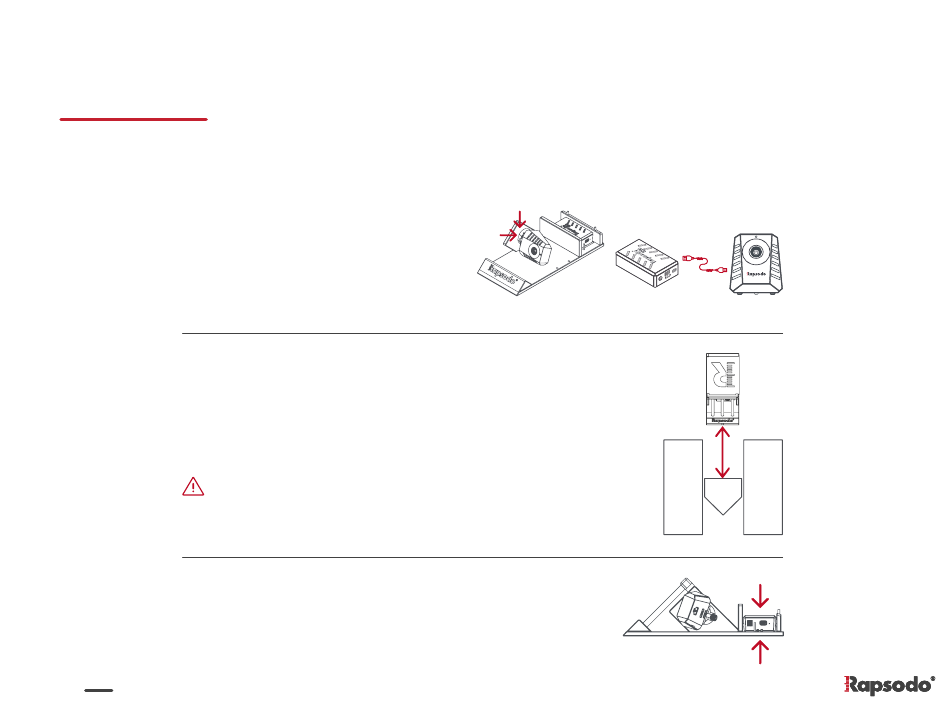

1. Internal Tank Set-Up
1. Attach monitor to mount plate
2. Place RCE in housing
3. Connect USB from monitor to RCE
2. Tank Positioning
Rapsodo HITTING 2.0 should be placed 14' from the front of
home plate and the camera opening should face the batter.
The tank should be placed on an even surface and SHOULD
NOT be used in the rain or wet conditions.
Rapsodo HITTING 2.0 should only be used at the designated
distance and on a flat surface. Improper placement may cause
injury.
3.

Calibration

1. Align monitor angles with help of the application
2.Use azimuth view and tape measure to position the tank
directly in the center of home plate.
10
14'
