  • Page 1 HITTING 2.0 user manual Powered by: Rapsodo...

  • Page 2: Table Of Contents

    What’s Inside the Box Cloud + App Overview Operating the Monitor Understanding the Monitor LED Displays Operating the Rapsodo Computing Engine (RCE) Understanding the RCE LED Displays Charging the Devices Pairing the RCE and the App Device Placement and Setup...

  • Page 3: What's Inside The Box

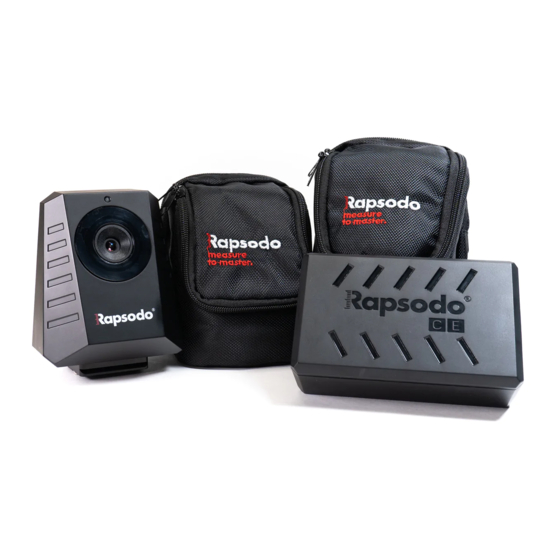

    ınsıde the box Monitor Protective Tank & RCE USB Cables & Charger HITTING 2.0 QUICK START GUIDE www.rapsodo.com support@rapsodo.com For additional user information download the HITTING 2.0 user manual at www.rapsodo.com/downloads Measuring Tape Monitor Clip Quick Start Guide Protective Cases...

  • Page 4: Cloud + App

    Create a coach account and player profiles at cloud.rapsodo.com This will be your username and password to login to both the cloud and applications The Rapsodo Hitting App must be downloaded in order to use HITTING 2.0 To download go to the Apple App Store and...

  • Page 5: Overview

    overvıew Monitor Tank Clip...

  • Page 6: Operating The Monitor

    OPERATING THE MONITOR Turning the Monitor ON To turn the monitor on, press the power button The front LED display will turn RED indicating the monitor is on but not ready to measure The rear LED will turn RED when ready to connect Turning the Monitor OFF Press the power button LED front light...

  • Page 7: Understanding The Monitor Led Displays

    understanding the monıtor led dısplays Front LED Display Rear LED Display The front LED display provides The rear LED display provides information on the monitor status, information on connectivity and and will give the “green light” to battery. This display will be especially hit when the device is important when pairing the app ready to measure.

  • Page 8: Operating The Rapsodo Computing Engine (Rce)

    OPERATING THE RAPSODO COMPUTING ENGINE (RCE) Turning the RCE ON To turn the RCE on, press the power button After 10-15 seconds the power LED will turn on and the RCE will be ready to connect to the monitor Turning the RCE OFF...

  • Page 9: Understanding The Rce Led Displays

    understanding the rce led dısplays Power Battery Monitor Connection to App RCE and monitor connected RCE and monitor connected to application, needs calibrated or on ‘Pause Mode’ Ready to record data Data processing RCE switched off and charging Warning for low battery, please recharge monitor RCE turned on, not connected to app and monitor RCE turned on, connected to app but not the monitor...

  • Page 10: Charging The Devices

    Charging the devices Charging the Monitor The battery can be charged by connecting the included USB cable into the port on the rear monitor panel The rear LED will show AMBER indicating the monitor is charging The rear LED will switch off indicating the device has been sufficiently charged The LED indication will blink red indicating the battery charge is getting low and the battery should be charged Charging the RCE...

  • Page 11: Pairing The Rce And The App

    PAIRING THE rce and the app Connect the RCE to the monitor via USB to mini USB Press the power button on the monitor and RCE Connect to Rapsodo Wifi in iPad settings Open the Rapsodo HITTING 2.0 app and press the Wifi connection button...

  • Page 12: Device Placement And Setup

    3. Connect USB from monitor to RCE Tank Positioning Rapsodo HITTING 2.0 should be placed 14’ from the front of home plate and the camera opening should face the batter. The tank should be placed on an even surface and SHOULD NOT be used in the rain or wet conditions.
  • Page 13 calıbratıon Press calibration icon inside app Adjust monitor angles to 20 degrees and 90 degrees To calibrate the monitor have a person stand on the center of home plate. The red line in the azimuth view should go directly down the middle of home plate.

  • Page 14: Troubleshooting Table

    Troubleshooting table App shows low Charge RCE and monitor separately monitor battery Results seem Make sure the tank is placed at 14’ and you have inaccurate correctly calibrated the monitor Can’t connect Connect to wifi and calibrate from the play tab to app inside the app Data not syncing...

  • Page 15: Specifications

    Specifications Exit Velocity Launch Angle Exit Velocity is the speed of the Launch Angle is the vertical angle at baseball as it comes off the bat which the baseball leaves the bat after contact. after contact. Direction Spin Rate The direction, plotted on a baseball The rate at which the ball spins during flight diamond, that an in-play ball after contact, measured in rotations per...

  • Page 16: General Information

    Rapsodo HITTING 2.0 is used, as they may cause interferences. Use In Well-Lit Environments Rapsodo HITTING 2.0 should be used in well lit locations. Performance may vary in certain lighting conditions, particularly in low light conditions, which may result in incorrect measurements.

  • Page 17: Support / Contact

    / contact If you have any questions or need any assistance, please contact us at: Email: support@rapsodo.com Phone: 1.844.772.7763 www.rapsodo.com...
