  • Page 1 HOW TO SETUP RAPSODO BASEBALL? A QUICK USER GUIDE...

  • Page 3: Table Of Contents

    CONTENT WHAT IS IN THE PACKAGE? WHAT KIND OF DEVICE IS REQUIRED? 1. DOWNLOAD THE RAPSODO BASEBALL SOFTWARE 2. PAIR THE MONITOR AND APP VIA WIFI OR VIA USB CABLE A. PAIR THE MONITOR AND APP IOS/WINDOWS via WIFI B. PAIR THE MONITOR AND APP IOS/WINDOWS via USB 3.

  • Page 4: What Is In The Package

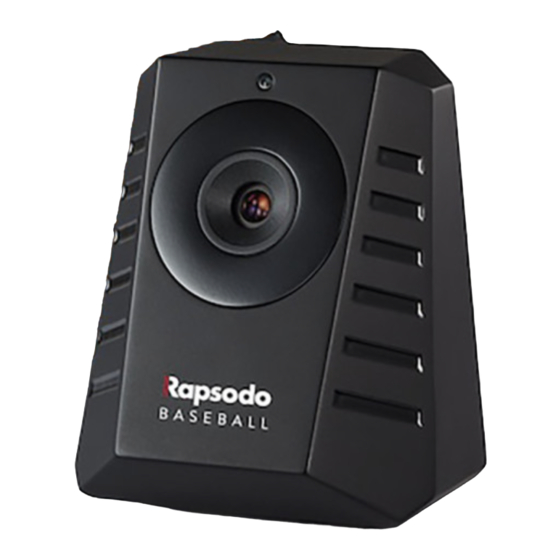

    WHAT IS IN THE PACKAGE? USB cable & charger Tripod Monitor WHAT KIND OF DEVICE IS REQUIRED? For Computer: WINDOWS 10 / 8 / 7 For iPad: iPad Air, Air 2, Pro iOS 8.0 or later...

  • Page 5: Download The Rapsodo Baseball Software

    DOWNLOAD THE RAPSODO BASEBALL SOFTWARE From www.rapsodo.com/supportbaseball WHEN APP OPENS, FOLLOW THE PROMPT TO REGISTER ONLINE...

  • Page 6: Pair The Monitor And App Via Wifi Or Via Usb Cable

    PAIR THE MONITOR AND APP VIA WIFI OR VIA USB CABLE Rear LED: RED Waiting for Pairing PAIR THE MONITOR AND APP IOS/WINDOWS via WIFI...
  • Page 7 TURN ON THE MONITOR PRESS THE ON/OFF BUTTON Rear View Front View WIFI CONNECTION Go to WIFI Settings on your device Search for the “Rapsodo Baseball” network...
  • Page 8 CONNECT TO THE ACCESS POINT NAMED RapsodoBB_xxxx WIFI LIST RapsodoBB_1234 XXXX denoted a unique number for your monitor OPEN THE RAPSODO APP WAIT FOR THE AUTOMATIC CONNECTION TO THE MONITOR...

  • Page 9: Pair The Monitor And App Ios/Windows Via Usb

    ONCE THE CONNECTION IS ESTABLISHED A GREEN CHECK MARK APPEARS ON THE WIFI ICON AND THE MONITOR REAR LED WILL TURN GREEN PAIR THE MONITOR AND APP WINDOWS via USB Use the compatible USB cable provided in your Rapsodo Baseball package...
  • Page 10 MAKE SURE A USB CABLE IS CONNECTED BETWEEN THE PC AND THE MONITOR AND START THE APP For Windows 7 on PC, you need a “WinUSB” driver OPEN THE APP CLICK THE “USB” ICON GREEN CHECK MARK APPEARS ON IT...
  • Page 11 REAR AND FRONT LEDS WILL BECOME GREEN ON MONITOR Rear View Front View THE MONITOR AND APPLICATION ARE READY FOR MEASUREMENT...

  • Page 12: Setting Up The Monitor

    SETTING UP THE MONITOR Rapsodo Baseball works indoors and outdoors RELEASE THE LEGS AND EXTEND THE POLE OF TRIPOD 6 FT...
  • Page 13 POSITION THE TRIPOD BEHIND THE HOME PLATE 6 FT Just set it up 66’6 from pitcher REMOVE THE MOUNT PLATE AND ATTACH IT TO THE MONITOR...
  • Page 14 ADJUST THE TRIPOD AND MOUNT SO THAT MONITOR FACES THE PITCHER’S MOUND STEP 1 – CALIBRATION: TILT THE MONITOR 20 DEGREES TO THE GROUND 20° Follow calibration instruction on the app screen...
  • Page 15 STEP 1: LEFT SCREEN SHOWS A CONFIRMATION ONCE THE TILT/ROLL POSITION IS CORRECT Calibrated STEP 2 - AZIMUTH CALIBRATION: ALIGN MONITOR TO EXACTLY FACE PITCHER’S POSITION Pitcher in front of camera Adjust monitor to align the target line to center Use the camera target line on the app screen as reference...

  • Page 16: Starting To Measure Data

    STEP 2: TAP “DONE” ON THE RIGHT SCREEN WHEN ALIGNEMENT IS FINISHED DONE Self-Calibration: There is no confirmation from the app for this step STARTING TO MEASURE DATA SPIN SPEED 2120 85.3 SPIN AXIS H/V BREAK...
  • Page 17 MAKE SURE -MONITOR PLACED CORRECTLY -APP IS PAIRED -FRONT LED IS GREEN WHENEVER THE FRONT LED IS GREEN YOU CAN PITCH THE BALL...
  • Page 18 REVIEW INSTANT FEEDBACK ON DASHBOARD THE MONITOR CAPTURES DATA ONLY IF THE PITCHED BALL PASSES THROUGH THE TARGET AREA 5.2 FT FROM GROUND 1.6 FT 1.6 FT...

  • Page 19: Understanding Led Displays

    INCOMPLETE DATA (SPEED ONLY) ARE SHOWN IN CASE OF PITCH OUTSIDE THE TARGET ZONE, WAIT FOR GREEN LIGHT AND PITCH AGAIN UNDERSTANDING LED DISPLAYS Rear View Front View...
  • Page 20 REAR GREEN Succesfully connected Not connected to app Rear LED provides information about CONNECTIVITY & BATTERY REAR BLUE FLASHING Attempting to connect to a known network BLUE Connected to a known network, waiting for app sync Only in NETWORK mode connection...
  • Page 21 REAR RED FLASHING Low battery AMBER Charging (switched off) FRONT Not ready GREEN Data ready, monitor ready BLUE Processing data (wait for green light to pitch again)

  • Page 22: Recharging

    RECHARGING Integrated battery: charge it with the USB cable, using a computer or plugging into charger...

  • Page 23: Customer Support

    CUSTOMER SUPPORT Trouble shooting, FAQ and assistance for your Rapsodo Baseball can be found at: www.rapsodo.com/supportbaseball...
  • Page 24 PRODUCT INFORMATION info@rapsodo.com Toll Free Number (USA): 844.772.7763 For USA postal enquiries, please use: Rapsodo Inc., 2705 Enterprise Drive, Suite 150 Anderson, Indiana 46013 For ASIA postal enquiries, please use: Rapsodo Pte Ltd 67 Ayer Rajah Crescent #04-10 Singapore 139950...
