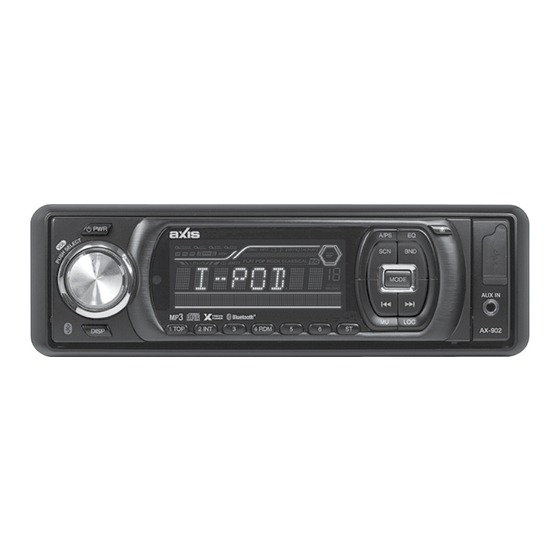

BLUETOOTH ENABLED CD/MP3/WMA RECEIVER
IPOD CONTROL with INTERFACE CABLE
SPECIFICATIONS:
GENERAL:
Flip Down / Detachable Face Panel
Includes Black and Silver Trim Frames
ISO DIN Chassis &ISO Wiring Connector
12 Volt DC - Negative Ground
Chassis: 178(W)x50(H)x158(D) mm
PLAYER:
CD/MP3/WMA -CDR/CDRW Player
Auto Loading/Eject
iPod Compatible
Electronic Shock Protection
(12/45 Sec. in CD / 120 Sec. in MP3)
Intro, Repeat and Random Play
MP3/WMA Files - Select Folder
Track/File or Character Search
BLUETOOTH:
Bluetooth in Phone Mode
Remote Dial Keypad
External Microphone
Phone Contacts
USB & FRONT PANEL AUX INPUT
DESIGNED FOR AUSTRALASIAN CONDITIONS
TUNER:
AM/FM Stereo
PLL Frequency Display
30 Station Presets (18FM/12AM)
Digital Clock
Stereo/Mono - Local/Distant
Long Range XTREME Tuner
AUDIO CONTROL:
Electronic Volume/Balance/
Treble/Bass and Fader Controls
Audio DSP Function
Subwoofer Output
4 Channel RCA Line-out
RCA Line-in
USB / AUX Input
Speaker Impedance 4-8 Ohms
5 Volt Preamp Output
High Power 40 Watts x 4 ch
AX-902
Advertisement
Table of Contents
Related Manuals for Axis AX-902
Summary of Contents for Axis AX-902
- Page 1 Track/File or Character Search USB / AUX Input Speaker Impedance 4-8 Ohms BLUETOOTH: 5 Volt Preamp Output Bluetooth in Phone Mode High Power 40 Watts x 4 ch Remote Dial Keypad External Microphone Phone Contacts DESIGNED FOR AUSTRALASIAN CONDITIONS AX-902...
-
Page 2: Installation
INSTALLATION PRECAUTIONS • Carefully choose the mounting location so normal driving is not affected. • Avoid installing the unit where it would be subject to high temperatures (direct sunlight or hot air from the heater) or where it would be subject to dust, dirt or excessive vibration. •... -
Page 3: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE Dashboard . DASH 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION LINE OUT (FRONT) ISO CONNECTOR L (WHITE) R (RED) -
Page 4: Function Of Controls
FUNCTION OF CONTROLS 16 11 20 (1-6) POSITION OF CONTROLS (CAR STEREO) 1. POWER ON/OFF ( . FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/AUDIO DSP/ 16 11 20 LOUDNESS/SUBWOOFER/ESP/CD MULTI/SCROLL/BEEP/STEREO/LOCAL/PAIRING . VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/AUDIO DSP/ LOUDNESS/SUBWOOFER/ESP/CD MULTI/SCROLL/BEEP/STEREO/LOCAL/PAIRING 4. PRESET STATIONS (1,,,4,5,6) 5. -
Page 5: Switching To Telephone Mode
POSITION OF CONTROLS (DIAL KEYPAD) POWER ON / OFF ANSWER A CALL VOLUME + END A CALL BAND SELECT MENU FUNCTION VOLUME - MODE PHONE NUMBER / BUTTON 1-6: STATION PRESETS 10. STEREO / MONO 11. SCAN STATIONS SWITCHING TO TELEPHONE MODE During any operating mode, press and hold “*”... -
Page 6: General Controls
GENERAL CONTROLS 1. POWER ON/OFF Press this key to switch the unit on and off. Also, this unit can be turned on by pressing any key. 2. SELECT 3. VOLUME UP/DOWN Turn the VOL knob Right or Left () to adjust VOL/BASS/TREB/BAL/FAD. To select other functions, continue to press the VOL knob until the desired function is shown on the display. - Page 7 2 sec. LOUD WOOF WOOF ON/OFF 2 sec. 2 sec. LOUD LOUD ON/OFF 2 sec. LOUD WOOF ESP 10/40 POP --- ROCK --- CLASSIC --- FLAT --- DSP OFF SCROLL MODE 2 sec. 2 sec. Press the SEL button for more than seconds to activate this mode. MULT MULT ON/OFF LOUD...
- Page 8 6. LOCAL/DISTANT BUTTON Press Local/Distant LOC button for listening to weak stations. “LOCAL” indicator will appear on the display. Press this button again (Distant mode) for normal operation. 7. EQUALIZER CONTROL Press EQ to select between Off/Pop/Rock/Classic/Flat equalizer modes. 8. STEREO/MONO (ST) When an FM station is weak or distorted, audio may improve by selecting MONO.
-
Page 9: Cd/Mp3/Wma Control
CD/MP3/WMA CONTROL Inserting the CD Carefully slide the CD through the CD slot into the mechanism. The CD starts playing automatically. TRACK/SEARCH BUTTON FORWARD AND REVERSE TRACK SEARCH Press and release to advance to next track or to return to the beginning of the current track (track number will be displayed.) Press and hold to fast forward or reverse . - Page 10 • Rotate “VOL knob to right or left” to select the desired directory. • Press “VOL” knob again. The directory is fixed and the first file name is displayed. • Rotary “VOL knob to right or left” to select the required file. •...
-
Page 11: How To Use Bluetooth In Your Car Audio
HOW TO USE BLUETOOTH IN YOUR CAR AUDIO How to Perform Pairing Before dialling out from the car stereo, PAIRING must first be performed. Pairing is a procedure used to connect Bluetooth devices together. 1. Press and hold SEL button for seconds. . - Page 12 Adding Contacts The unit can save contact telephone numbers for quick access. 1. Press and hold (*) then press and hold SEL button for seconds. . Continuously press SEL button until “ADD NUM” displays. . Press and hold SEL button again. 4.
-
Page 13: Troubleshooting Guide
CAUTION & MAINTENANCE The detachable panel AM/FM car radio with CD player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many years of enjoyment. 1. Do not touch the contacts on the front panel or the unit body. . -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 0Hz - 0 kHz TUNER (FM) Frequency range 87.5 - 108 MHz Intermediate frequency 10.7 MHz Sensitivity .8 µV Stereo separation 0 dB Signal to noise ratio 50 dB... -
Page 15: Consumer Warranty
SIX MONTH warranty. An abnormal commercial application is one where usage, dust, vibration, heat/cold and other environmental conditions exist at an extreme level. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: AX-902 Model Number: Serial Number: Dealer Name: Date of Purchased:...
