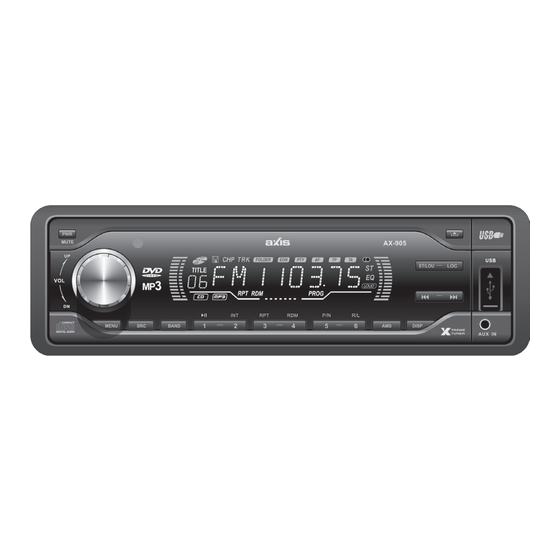

CAR MULTIMEDIA VIDEO SYSTEM
DVD Player with USB, SD Memory Card Ports
& FRONT PANEL AUX INPUT
SPECIFICATIONS
GENERAL
• Flip-Down Detachable Panel
• ISO DIN Mounting
• ISO Wiring Connector & Harness
• Chassis: [W] x 0[H] x mm[D]
• In Dash Mounting Cradle
• Pop-Up Rotary Volume Control
• Digital Clock
• Illuminated Controls
• Full Function Remote Control
• Volt DC (-V), Negative Ground
TUNER
• PLL Synthesized AM/FM Stereo
• Long Range Xtreme Tuner
• PLL Frequency Display
• 0 Station presets - FM / AM
Memory
• Station Seek / Scan / Auto Store
Designed for Australasian Conditions
INSTALLATION MANUAL
AUDIO CONTROL
• Electronic Volume / Balance / Fader / Bass /
Treble / Mute / Loud
• Subwoofer Output
• Channel AUX-IN (Rear Chassis)
• Channel RCA Outputs - Volt (Rear Chassis)
• AUX-IN Front Panel
• Compatible with audio output of iPod & other MP Players
• Preset Band EQ Response Curves
• Speaker Impedance - Ohms
• High Power ch x W
PLAYER
• Single DVD Deck
• USB Port & SD Memory Card Port
• SD Port Behind Front Panel
• Supports DVD / DVDR / DVDRW / WMA / JPEG / VCD
AVI / MP / MP / CD / CDR / CD-RW Formats
• Electronic Shock Protection
AX-905
Advertisement
Table of Contents
Related Manuals for Axis AX-905
Summary of Contents for Axis AX-905
-
Page 1: Specifications
• 0 Station presets - FM / AM AVI / MP / MP / CD / CDR / CD-RW Formats Memory • Electronic Shock Protection • Station Seek / Scan / Auto Store Designed for Australasian Conditions AX-905 INSTALLATION MANUAL... -
Page 2: Table Of Contents
Safety Information Warning • To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. • Never watch video in the front when driving. This is dangerous and in violation of laws & regulations. -
Page 3: Panel Controls
Panel Controls Power on/off: Press PWR to turn on/off the unit. - Power on/off (press more than 2 seconds) - Mute - Rotate the knob to adjust volume level. - Press to be flush with the panel. - Press to select VOL/SUB VOL/BAS/TRE/BAL/FAD. - Press more than 2 seconds to enter into menu mode. -
Page 4: Remote Controls
Remote Controls Power on/off: Press to turn on/off the unit. 1 Zoom (DVD/VCD only) 2 Title (DVD only) 3 Power on/off 4 Setup 5 Menu cursor 6 Enter 7 Program 8 Digit area 9 - Audio mode select VOL/BAS/TRE/BAL/FAD - Press more than 2 seconds to menu mode 10 Volume 11 Mute 12 - Radio tune... -
Page 5: Remote Controls
Remote Controls Replacing the lithium battery of remote control unit When the range of the card remote control becomes short or does not function, replace the battery with a new lithium battery. Make sure the polarity is correct. 1. Pull out the battery holder while pressing the stopper. 2. -
Page 6: Getting Started
Getting Started Press the button to open the panel and press to eject the disc. 1. Disc eject 2. Reset hole Note: Pressing the RESET hole will erase the clock setting and stored stations. 3. Panel status indicator Lights up when you flip the panel down; Blinks when you remove the panel. 4. -
Page 7: Usb/Sd/Mmc/Mp3 Playback
USB/SD/MMC/MP3 Playback 1. Load SD/MMC Card Insert the SD/MMC card into the slot, with the front side at right. The unit will play the music automatically and the LCD will show CARD. 2. Take out SD/MMC Card Press SRC button and switch to non CARD mode, slightly press SD/ MMC card, take out the card when it pops out. -
Page 8: General Operation
General Operation Switching on and off 1. Press PWR to turn on the unit. 2. Press SRC once or more to select your desired function: DISC, USB, CARD, Aux ( Aux-in), Tuner (Radio). 3. Press PWR more than 2 seconds to power off. 4. -
Page 9: Menu Mode
EQ ON/OFF mode BEEP ON/OFF mode VOL LAST/ADJ mode 12/24 HOUR mode SUBW mode Menu Mode Press MENU more than 2 seconds to enter menu mode, then each press changes the mode as follows: EQ ON/OFF mode BEEP ON/OFF mode VOL LAST/ADJ mode 12/24 HOUR mode SUBW mode... -
Page 10: Radio And Clock
Radio and Clock Band Press to power on, then press SRC once or more to select tuner. Press BAND once or more to select FM1 MW2. Display shows wave band, frequency, and preset station number if already stored. Tune Radio tune by step manually: Press less than 0.5 second. -
Page 11: Disc Playback
Disc Playback & Disc Playable Disc Load/Eject Load : Press to flip down the panel. Insert the disc into the slot. Eject : Press to flip down the panel. Press to eject the disc. 1. When disc inserted, display shows LOAD and then READ. -
Page 12: Audio/Video/Picture File Playback
Audio/Video/Picture File Playback When MUSIC/PICTURE/VIDEO file is played, Category/Folder/File list will be displayed on the screen, and file/folder name being played will be displayed on top. Current selected item will be highlighted. Category Select AUDIO to select PICTURE VIDEO Press ENTER to confirm. Folder Select to enter folder list and use to select desired folder, press ENTER to confirm. -
Page 13: Track Playback
Track Playback Select desired track -Press to skip to next track. -Use 1-9 and 0, 10+ buttons on the remote control to select desired track number. Fast forward/backward during playback Press for more than 2 seconds once or more to select X2, X4, X8, X20 to fast backward or forward track during playback. -
Page 14: Track Playback
Track Playback Repeat A Select desired passage to repeat playback. -Press A B once to select starting point. Display shows REPEAT A. -Press A B again to select ending point. Display shows REPEAT A and select passage start to replay. -Press A B once again to exit. -
Page 15: Dvd Playback
DVD Playback DVD Audio Select Press AUDIO or R/L to select audio language to listen if the DVD has multiple audio languages. VCD Audio Select Press R/L to select audio channel to listen. DVD Subtitle Select Press SUB.T to select the subtitle language to show if the DVD has multiple language subtitles. DVD Title Select Press TITLE to display title or chapter list, use cursor or digit number to select, press... -
Page 16: Dvd Setup
DVD Setup Press SETUP to display setup menu on the screen. to select setup items: SYSTEM - LANGUAGE - AUDIO - VIDEO - DIGITAL DVD System Setup to select and ENTER to confirm. TV System Screen Saver Select the TV system in the setting menu. The screen saver appears if disc stop last more than 3 minutes. - Page 17 DVD System Setup Setting Password Setting Rating The rating of the disc is from 1 to 8: Original password is 0000. (1) with the most limits when playing. (8) with the least limits when playing. Original setting: 8 Note: The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status.
-
Page 18: Dvd Language Setup
DVD Language Setup OSD Language Audio Language Select on screen display language of Select audio language of the DVD from the DVD. which is contained in the DVD. Subtitle Language Menu Language Select subtitle language of the DVD Select menu language of the DVD from from which is contained in the DVD. -
Page 19: Dvd Video Setup
DVD Video Setup Brightness Contrast Set the contrast of the video output Set the brightness of the video output with with Saturation Set the hue of the video output with Set the saturation of the video output with Sharpness Set the sharpness of the video output with... -
Page 20: Dvd Digital Setup
DVD Digital Setup Output Mode Dynamic Range When you select the compressed mode Select the output mode: as "line out", select it to adjust the LINE OUT: Compress the input signal. compression proportion and get the The volume is small. different compressed effect. -
Page 21: Electrical Connections
Electrical Connections Wiring Diagram... - Page 22 Electrical Connections Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery, as shown in the colour code table below for speaker and power cable connections.
-
Page 23: Installation Guide
Installation Guide Installation Procedures Carefully complete the electrical connections. Check connections before operation. Reset Press to flip down the panel. Then press the Reset hole with a pointed object to reset the unit to the original factor settings. Installation Opening This unit can be installed in any dashboard with a suitable 183mm(w) x 52mm (h) opening as shown above. -
Page 24: Anti-Theft System
Anti-Theft System This unit is designed with a flip-down detachable panel. The panel can be detached and taken with you, helping to deter theft. Remove the panel 1. Press PWR to switch off the power of the unit. 2. Press to flip down the panel. -
Page 25: Troubleshooting
Troubleshooting If you suspect something is wrong, immediately switch power off. Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so. General - No power or no sound Car engine switched off. -
Page 26: Specifications
Specifications General Power supply: 12VDC (11V-16V) Test voltage 14.4V, negative ground Maximum power output: 45Wx4 channels Continuous power output: 25Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8ohm Pre-Amp output voltage: 4.0V (CD play mode: 1KHz, 0dB, 10K load) Fuse: Dimensions(WxHxD): 178x50x166mm Weight:... - Page 27 Page P.N.: 127075001855...
