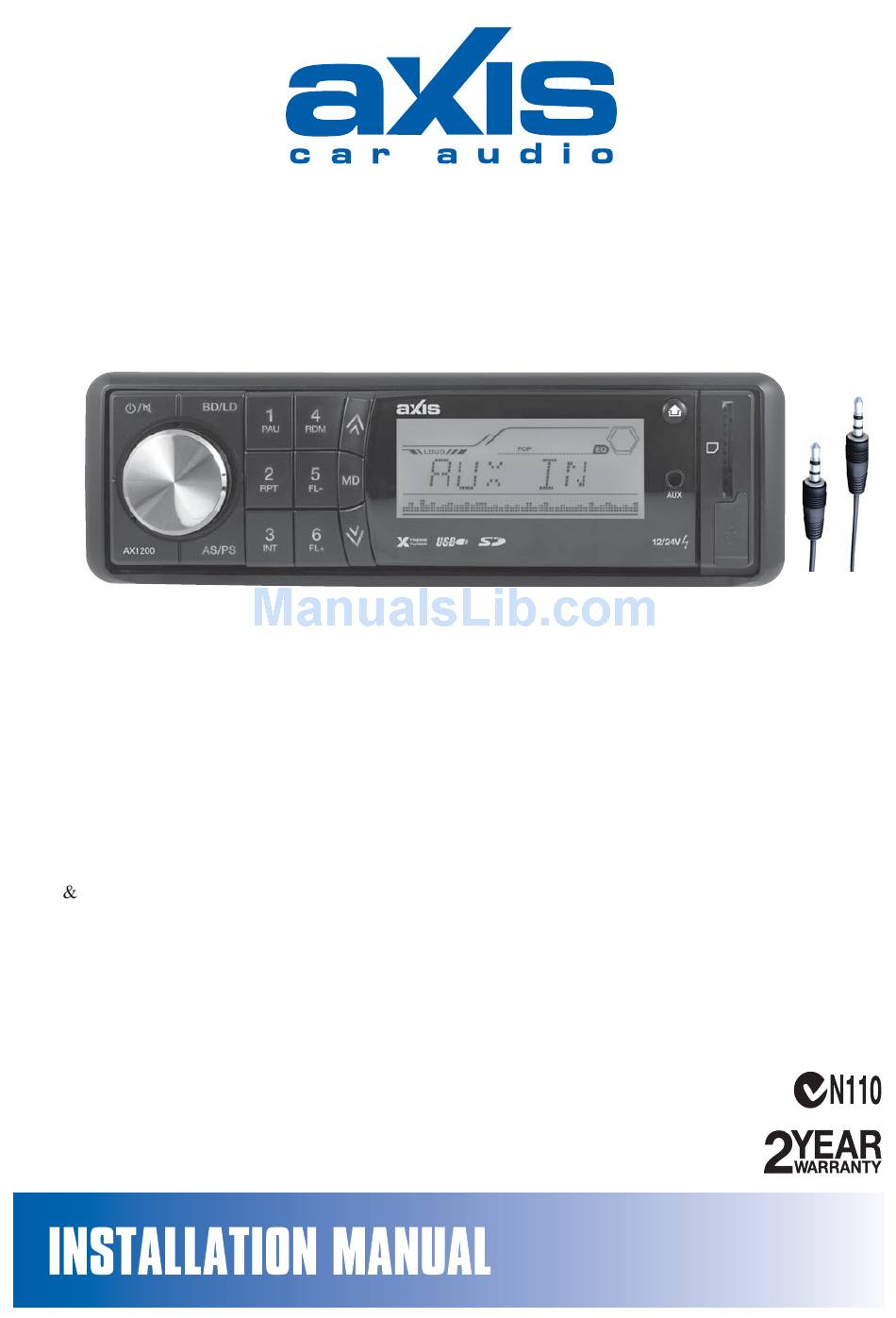

Axis AX1200 Installation Manual

Hide thumbs Also See for AX1200:
Table of Contents

Advertisement

Quick Links

24 VOLT MULTIMEDIA SYSTEM
USB / SD-MMC INPUT - FRONT PANEL AUX-IN
FSTN Display for Wide Angle Views/Compact Chassis
SPECIFICATIONS:
GENERAL:
Detachable Face Panel
Flip Down
Ultra Memory Power Circuit
Illuminated Controls (Blue)
ISO DIN Mounting
ISO Wiring harness
Compact DIN Chassis: 178W x 50H x 86Dmm
24 Volt DC (10.8-32V) Negative Ground
FSTN LCD Display
%ODFN
6LOYHU 7ULP )UDPHV ,QFOXGHG
0RXQWLQJ 'HSWK PP
,QFOXGHV PP $8;,Q &DEOH
MULTIMEDIA:
USB Input: Front Panel
SD / MMC Card Port: Front Panel
AUX-IN Socket: Front Panel
MP3 / WMA Player
Intro / Repeat / Random Play / Pause
Track Down / Up Select (MP3/WMA Files)
Compatible with audio output of most MP3 players
AM / FM RADIO RECEIVER
DESIGNED FOR AUSTRALASIAN CONDITIONS
TUNER:
PLL Synthesized AM/FM Stereo
Xtreme Long Range Tuner
FM 87.5~108 MHz; AM 522~10 KHz
Interference Absorption Circuit
30 Station Presets - 18FM/12AM Memory
Automatic or Manual Tuning
Station Seek / Preset Scan / Auto Store
Local / Distant Control
Mono / Stereo
Digital Clock
AUDIO CONTROL:
Rotary Encoder
Electronic Volume / Balance / Bass / Treble / Fader
Loud0XWH
Front Panel AUX-IN
2 Ch RCA Line Out - 5 Volt (Max)
4-Band DSP Settings
Speaker Impedance 4-8 Ohms
Max Power 25 Watts x 4 Ch
AX1200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis AX1200

Summary of Contents for Axis AX1200

  • Page 1 4-Band DSP Settings Intro / Repeat / Random Play / Pause Speaker Impedance 4-8 Ohms Track Down / Up Select (MP3/WMA Files) Max Power 25 Watts x 4 Ch Compatible with audio output of most MP3 players DESIGNED FOR AUSTRALASIAN CONDITIONS AX1200...

  • Page 2: Installation

    INSTALLATION PRECAUTIONS ‡ &DUHIXOO\ FKRRVH WKH PRXQWLQJ ORFDWLRQ VR QRUPDO GULYLQJ LV QRW KLQGHUHG ‡ $YRLG LQVWDOOLQJ WKH XQLW ZKHUH LW ZRXOG EH VXEMHFW WR KLJK WHPSHUDWXUHV GLUHFW VXQOLJKW RU KRW DLU IURP WKH KHDWHU RU ZKHUH LW ZRXOG EH VXEMHFW WR GXVW GLUW RU H[FHVVLYH YLEUDWLRQ ‡...

  • Page 3: To Support The Unit

    TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE 3. DASH Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION ISO CONNECTOR ANTENNA CONNECTOR LINE OUT...

  • Page 4: Control Functions

    CONTROL FUNCTIONS BD/LD AS/PS AX1200 8 12 (1-6) LOCATIONS OF PARTS 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON:BASS/TREBLE/BALANCE/FADER / I-VOL/ADJUST CLOCK/DISP/STEREO/LOC/EQ 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER  35(6(7 67$7,216  5. MODE BUTTON (MD) 6. BAND/LOUDNESS BUTTON (BD/LD) 7.
  • Page 5 OPERATING INSTRUCTIONS 1. POWER ON/OFF Press any key to power the unit. Press and hold to turn off. 2. SELECT 3. VOLUME UP/DOWN 7XULQJ WKH 92/ NQRE WR ULJKW RU OHIW  WR FRQWURO WKH 92/80( 7R VHOHFW RWKHU IXQFWLRQV KROG the VOL knob down until the desired functions is shown on the display.
  • Page 6 Recall a station: 1. Select band (if needed) 2. Press a preset button for less than one second to select stored station. (B) MP3 PLAYER MODE: 1. PAUSE 2. REPEAT 3. INTRO 4. RANDOM 5. MODE BUTTON (MD) 3UHVV WKLV NH\ WR VHOHFW $8;781(586% RU 00&6' PRGH 6.
  • Page 7 MP3/WMA CONTROL LOCATION OF PARTS 11. PAUSE BUTTON 'XULQJ ´3/$<µ SUHVV  ¶3$8· EXWWRQ WR ´3$86(µ 3UHVV JDLQ WR UHVXPH SOD\ TRACK/SEARCH BUTTON (7) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press and release to advance to next track or to return to the beginning of the current track (track number .
  • Page 8 Connecting it to Portable MP3 Player 16,17. USB/ SD/MMC MEMORY CARD The device is equipped with a USB interface and a memory card reader for SD/MMC cards. MP3 RU :0$ ÀOHV VWRUHG RQ WKHVH PHGLD FDQ EH SOD\HG 1. Plug your USB storage medium into the USB port.  ,I \RX XVH D PHPRU\ FDUG LQVHUW LW LQWR WKH PHPRU\ FDUG UHDGHU 3.

  • Page 9: Troubleshooting Guide

    CAUTION & MAINTENANCE This detachable panel AM/FM car radio with MP3/WMA player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many \HDUV RI HQMR\PHQW 1. Do not touch the contacts on the front panel or the unit body.  7KH SURGXFW FDQ RQO\ RSHUDWH RQ 99 '&...

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 45 dB (1kHz) Frequency Response 20Hz - 20 kHz TUNER (FM) Frequency Range 87.5 - 108 MHz Sensitivity 2.8 μV Stereo Separation 28 dB Signal to Noise Ratio 50 dB Channel Step 100 kHz...
