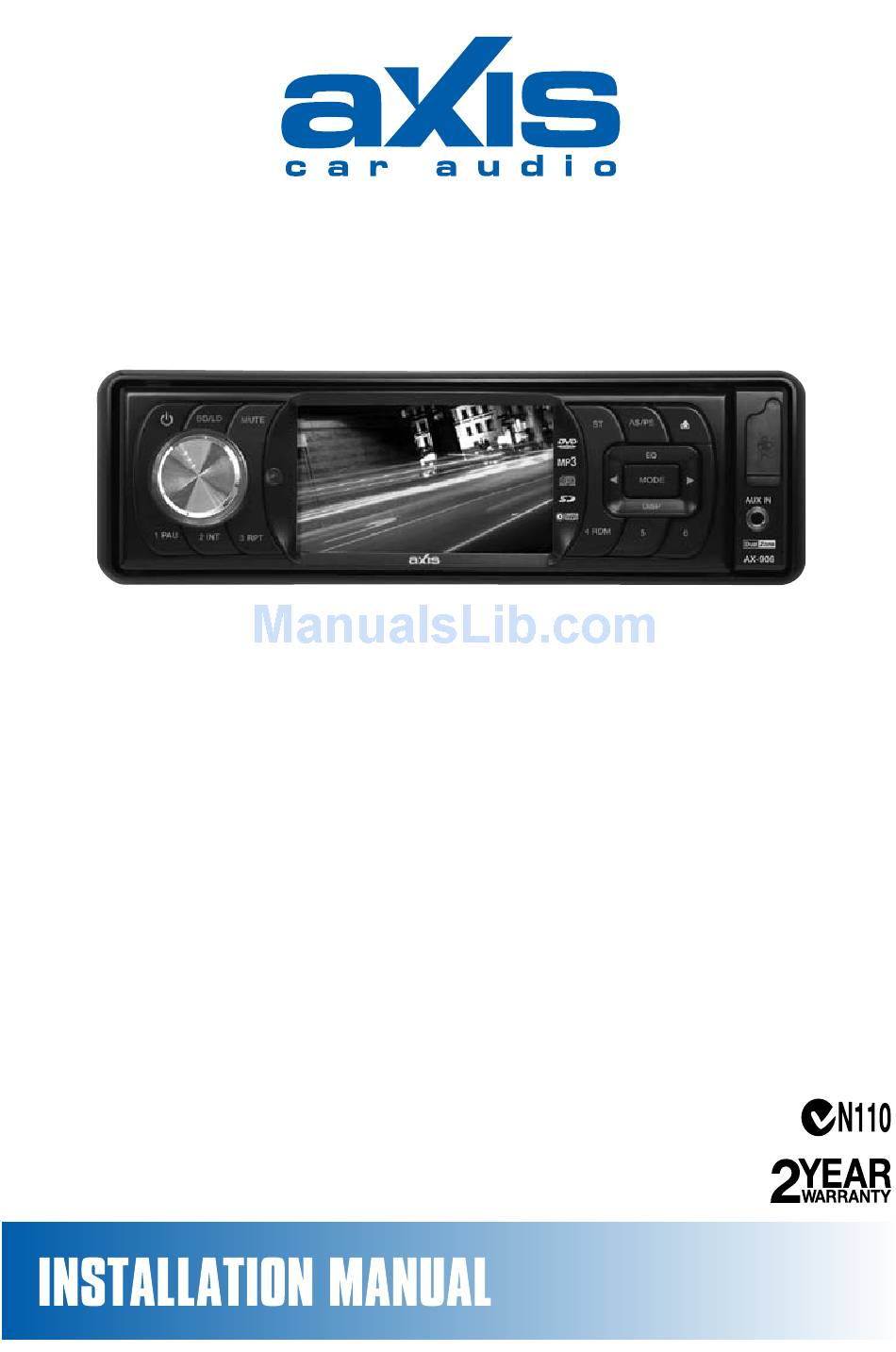

3 INCH LCD - DUAL ZONE - DVD PLAYER RECEIVER
iPOD CONTROL with INTERFACE CABLE
USB and SD-MMC MEMORY CAR PORTS
SPECIFICATIONS:
GENERAL:
Flip Down / Detachable Face Panel
ISO DIN Chassis
ISO Wiring Connector
12 Volt DC - Negative Ground
Chassis: 178(W)x50(H)x158(D) mm
PLAYER:
DVD/MPEG 4/VCD/JPEG Compatible
MP3/WMA/CD/CD-R/CD-RW Player
iPod Compatible
Auto Loading/Eject
Electronic Shock Protection
Intro, Repeat and Random Play
MP3/WMA Files - Select Folder
Track/File or Character Search
TUNER:
AM/FM Stereo
PLL Frequency Display
24 Station Presets (18FM/6AM)
Station Seek/Scan/Auto Store
Stereo/Mono
Long Range XTREME Tuner
DESIGNED FOR AUSTRALASIAN CONDITIONS
VIDEO CONTROL:
3 inch (7.6cm) TFT LCD Display
PAL/NTSC Compatible
Dual function
(simultaneous control of Radio/AV out)
Rear Camera Video Input
Video RCA Input
Video RCA Output
AUDIO CONTROL:
Electronic Volume/Balance/
Treble/Bass and Fader Controls
Audio DSP Function
Subwoofer Output
4 Channel RCA Line-out
USB/SD/MMC/AUX Input
Speaker Impedance 4-8 Ohms
5 Volt Preamp Output
Telemute
High Power 40 Watts x 4 ch
AX-906
Advertisement
Table of Contents
Related Manuals for Axis AX-906
Summary of Contents for Axis AX-906
-
Page 1: Specifications
USB/SD/MMC/AUX Input Speaker Impedance 4-8 Ohms TUNER: 5 Volt Preamp Output AM/FM Stereo Telemute PLL Frequency Display High Power 40 Watts x 4 ch 24 Station Presets (18FM/6AM) Station Seek/Scan/Auto Store Stereo/Mono Long Range XTREME Tuner DESIGNED FOR AUSTRALASIAN CONDITIONS AX-906... -
Page 2: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully to support normal driving needs. • Avoid installing the unit where it would be subject to high temperatures (direct sunlight or hot air from the heater) or where it would be subject to dust, dirt or excessive vibration. •... -
Page 3: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE Dashboard 3. DASH 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP CONNECT iPod BACK GEAR AUDIO LINE IN SUBWOOFER PARKING TEL MUTE CONTROL 9. - Page 4 DRIVING WITHOUT VIDEO DISPLAY (Recommended Installation) Follow the wiring diagram below so when the vehicle is in motion, no video will display on the LCD screen. Only sound can be heard from the speaker system. Operation must comply with safety laws in all Australian & NZ States.
-
Page 5: Function Of Controls
DISP CAMERA FUNCTION OF CONTROLS READY 11 10 11 10 CAMERA READY AUX IN DISP CAMERA READY DISP CAMERA READY 11 10 (1-3) (4-6) LOCATIONS OF FUNCTIONS (Source Unit) (1-3) (4-6) 1. POWER ON/OFF ( CAMERA . SELECT FUNCTION BUTTON READY 3. - Page 6 LOCATION OF FUNCTIONS (Remote Control) 1. POWER ON/OFF . MODE 3. PLAY/PAUSE 4. TITLE 5. SELECT Mode 6. SEEK+/SEEK- / CD TRACK/SEARCH 7. VOL +/VOL- GOTO Dual STEP Title 8. GOTO 9. AUDIO 10. ENTER Sub-T Setup Menu 11. NAVIGATION 1.
-
Page 7: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on. To turn off, press and hold the button again. Selecting a source (MODE) Continue pressing MODE to switch between TUNER, CD/DVD, AUX IN, USB or SD/MMC mode. Loading a Disc REL to open the front panel 1. -
Page 8: Listening To Radio
RESET Reset button is placed on the front housing. To reset, use a pointed object to press and hold the RESET button for seconds. The reset button is to be activated for the following reason: • Initial installation of the unit when all wiring is complete. •... -
Page 9: Listening To Cd/Mp3/Wma
Fast Forward / Fast Reverse Note: on remote control is the same function as on head unit. 1. During playback, press and hold . Unit scans at the speed of x - x4 - x8 - x0 . To resume normal playback at a desired point, press Note: No sound is played during fast forward / fast reverse. -
Page 10: Playing Dvd/Video Cd/Mp4
SD/MMC Card Input Support MP3/WMA ID3 format music only. REL button and the the front panel will open. 1. Press . Detach the panel by pulling it towards you. 3. Carefully insert the SD/MMC card into the slot. Close the front face panel. Unit automatically starts play- back. - Page 11 Repeat 1 – Repeat the current playback track. Repeat All – Repeat all folders and tracks. Off – Turn repeat function OFF. Note: PBC feature in VCD disc needs to be STOP in order to use Repeat playback FOR DVD You can choose between repeat playback of a title or chapter.
-
Page 12: Connecting Ipod
Program Playback The desired sequence of tracks to play can be set using the PROG function. 1. Press and hold Prog button on the remote control. . Enter the track number (for VCD) or title number followed by chapter number (for DVD) besides the memory location. -
Page 13: Setting Up The Dvd Player
SETTING UP THE DVD PLAYER The unit can be customized to suit your preferences. Language, video and audio settings can be programmed so playback will always use your preferred settings. Important: 1. Load any disc into the unit before you can access the setup. . -
Page 14: Troubleshooting Guide
CAUTION & MAINTENANCE The detachable panel AM/FM car radio with DVD player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many years of enjoyment. 1. Do not touch the contacts on the front panel or the unit body. . -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 0Hz - 0 kHz TUNER (FM) Frequency range 87.5 - 108 MHz Intermediate frequency 150 KHz Sensitivity .8 µV Stereo separation 30 dB Signal to noise ratio 50 dB... -
Page 16: Consumer Warranty
SIX MONTH warranty. An abnormal commercial application is one where usage, dust, vibration, heat/cold and other environmental conditions exist at an extreme level. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: AX-906 Model Number: Serial Number: Dealer Name: Date of Purchased:...
