Installation Of Control Panel - SECOLink P16 Wiring Manual

Intruder alarm system
For correct operation P series control panels
P16, P32, P64 (abbreviation: Pxx) needs one
12V 7Ah rechargeable battery. The battery is
used as a back-up power supply in case of
temporal AC loss. This battery is also used when
alarm system consumes more power than control
panel can supply. Excessive consumption may
happen when system activates siren or radio
transmitter. Usually activation last only few
minutes, so it does not discharge the battery.
12V battery
7Ah/20HR
Live Neutral Protective
wire wire Earth wire
L N PE
Main Protective
Earthing terminal
Secondary winding:
Power supply
distribution board

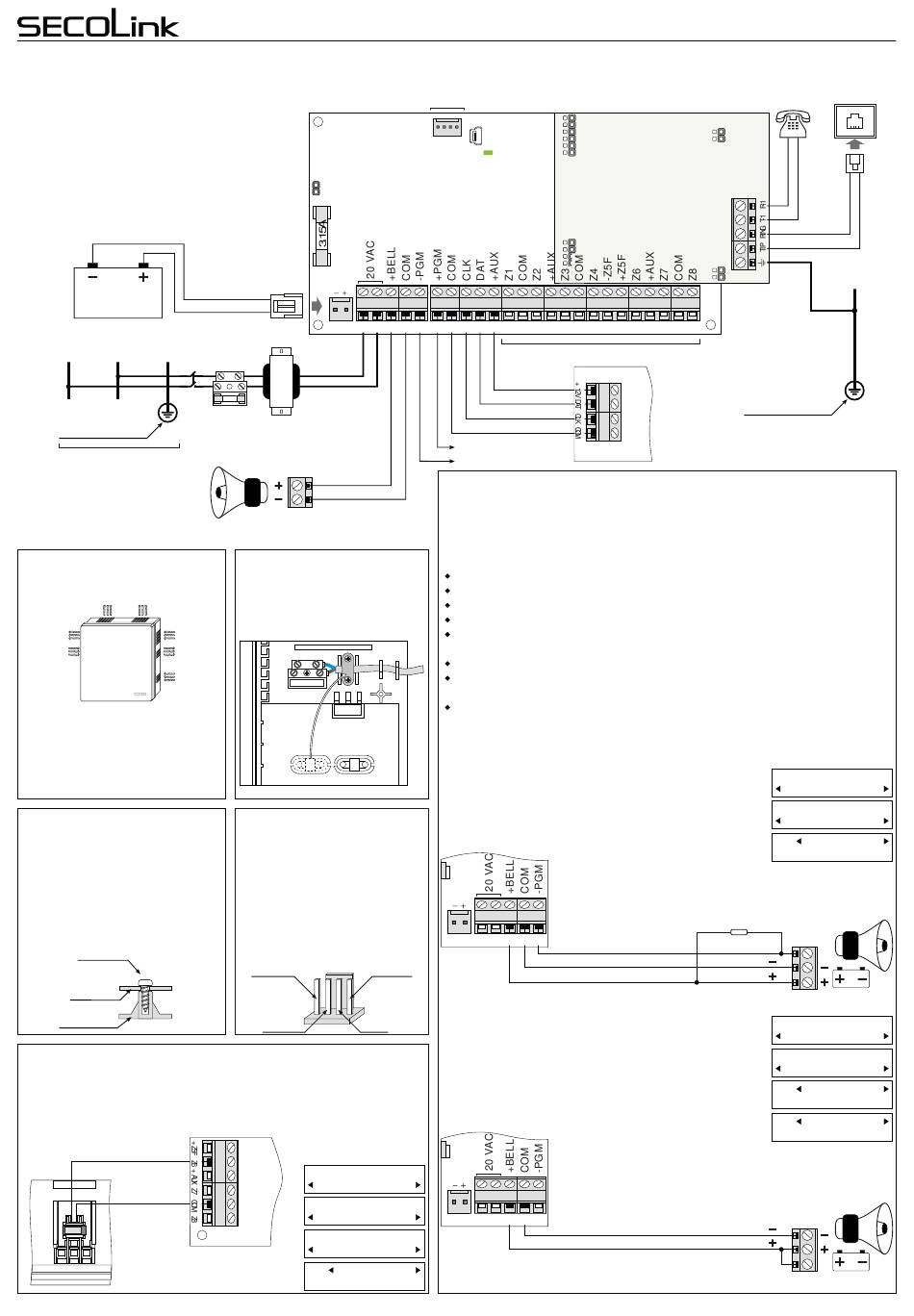

Picture 2. Wiring of power supply, PSTN line and siren without battery
Attention!
Do not cover ventilation
holes of cabinet!
Leave minimum 10 cm of free
space between the ventilation hole
and any other surface. Heating of
control panel can reduce maximum
current on +AUX and PGM outputs:
+BELL, +PGM.
Mounting modules in
cabinet
Boards of control panels and
modules have to be fastened in
plastic cabinet by using screws.
Module's mounting holes should
correspond to cabinet's rear wall
holes.
Screw
Board
Pxx
Plastic box
Use a tamper switch to protect control panel
By default control panel zone Z6 is set for detection of alarm system
cabinet opening. Opening the cabinet when system is disarmed will
make a trouble event or will trigger an alarm if system is armed. When
cabinet's tamper is unused, input Z6 can be set as normal zone.
Page 2

Installation of control panel

Serial port SERIAL (see "Wiring of system modules")
P16
P32
P64
Black
Red
20VAC
Fuse
250mA
AC power transformer:
Primary winding: 230V AC 50Hz ~
~ 20V AC 50Hz
+BELL
COM
Securing power cable
to cabinet
Use plastic component to
fasten power cable to cabinet.
SERIAL port
Attention! Consumed by radio
transmitter short time current
should not exceed 3A. Control
panel supply current to this
connector with not full electronic
short-circuit protection. In case
of long term high current PCB
damage is possible.
RX-DAT
TX-CLK COM
How to set by using
+Z5F
keypad KM20Bx:
Z6
Service Mode:
AUX
System setup
Z7
COM
System setup:
Modules
Z8
Modules:
Settings
M00 Use Tamper
No
+BELL COM -PGM +PGM COM CLK DAT +AUX Z1 COM Z2 +AUX Z3 COM Z4 -Z5F +Z5F
Zones (see "Zone wiring")
+AUX
DAT
CLK
COM
+PGM
-PGM
Template. Siren output programming
SECOLINK security systems are supplied to customers with a pre-installed
template in the keypad memory. The template is a set of most frequently used
system settings. During First start procedure keypad sends these settings to
other modules. When First start is completed the system will be set to
1 partition and 8 zones:
Z1 is preset to be used with a entry door magnetic contact;
Z2 - with PIR motion detector in entry/exit path;
Z3, Z4 - for PIR detectors wiring;
Z5 - with smoke detector;
Z6 - for cabinet tamper switch wiring;
PGM outputs:
+BELL (O01) is preset in the template to control a siren with no battery;
-PGM (O02) is preset to make activation (makes "minus") of siren with back-
up battery;
+PGM (O03) is preset to make +12V power supply for smoke detectors.
SECOLINK security systems may have different templates for different
countries. Check keypad sticker for a country prefix or pre-installed template
code. Example: KM20B_MY
Note: in most templates +BELL is set for sirens with no
battery (picture 2). To use the siren with back-up battery
(picture 3) you need to change +BELL (O01) definition to
Power supply. Definition changing sequence is showed
on the right (example for KM20Bx keypad).
20VAC +BELL COM -PGM
+13,8 V
Picture 3. Installation of 3 wire type siren. Siren uses back-up battery
Note: in case installation uses 2 wire siren with back-up
battery (picture 4) installer needs to make changes as
showed on the right. This type sirens uses back-up battery
to sound alarm and makes alarm when power supply line
(+BELL) do not provide power from control panel. Use
Inversion of Status PGM attribute to program system for
this operation. Programming sequence on the right.
20VAC +BELL COM -PGM
Picture 4. Installation of 2 wire type siren. Siren uses back-up battery
Control Panels P16, P32, P64
ANT
R-1
T-1
RING
TIP
Z6 +AUX Z7 COM Z8
+12V
DAT
CLK
COM
Module
If a direct connection of the control panel PGM output -PGM to siren
triggering input S does not ensure a stable siren activation, please
connect the pull up resistor (3 - 15 kOhm) between the +BELL and -
PGM as shown in the picture.
10kΩ
-PGM negative control
power supply
COM
+BELL power supply
Note: check siren wiring manual from manufacturer.
Switches or jumpers can be used to setup this type siren.
power supply
COM
positive control / power supply
+BELL
Wiring manual
Analog PSTN
line
PSTP
Protective Earth
wire PE
Main Protective
Earthing terminal
Service Mode:
System Setup
System Setup:
PGM Outputs
O01 Definition
Power Supply
S
Service Mode:
System Setup
System Setup:
PGM Outputs
O01 Definition
Fire/BurgAlarm
O01 Attributes
+InversionOfS
S
