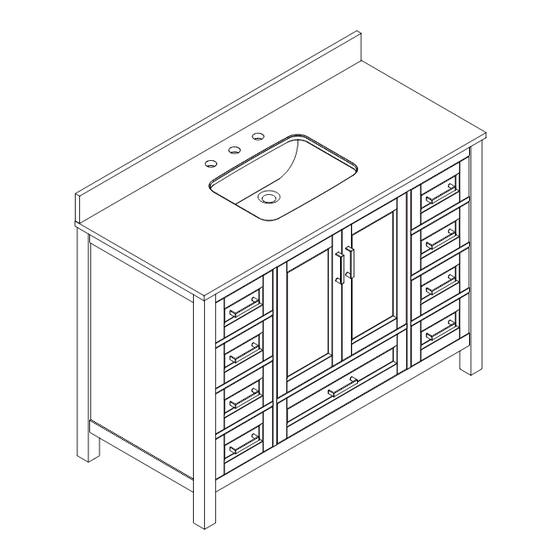

Durham bathroom vanity, 48-in vanity base and top ( 48-in w x 22-in d- 35-in h)

Advertisement

Quick Links

TM
Durham Bathroom Vanity
48-IN Vanity Base and Top
( 48-IN W x 22-IN D- 35-IN H)
Date Purchased _______________________
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service department at
1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday.
www.greentouchhome.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCOTT LIVING Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Greentouch SCOTT LIVING Series

  • Page 1 Durham Bathroom Vanity 48-IN Vanity Base and Top ( 48-IN W x 22-IN D- 35-IN H) Date Purchased _______________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday. www.greentouchhome.com...
  • Page 2: Model Number Description

    MODEL NUMBER DESCRIPTION 1328VB-48-220 48" Chocolate Finish Vanity Base & Sink 1328VB-48-236 48" Espresso Finish Vanity Base & Sink 1328VB-48-241 48" White Oak Finish Vanity Base & Sink 1328VB-48-242 48" Light Gray Finish Vanity Base & Sink 1328VT-48-900 48" Carrara Marble Top 1328VT-48-901 48"...
  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 2 Box 1 of 2 Backsplash Sink Left Door Right Door Box 2 of 2 Shelf Large Drawer Small Drawer HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Bolt Washer Touch Up Pen Sink Clamp Lock Washer Qty.
  • Page 4: Installation Instructions

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for adhesive to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, adhesive, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS...
  • Page 5 INSTALLATION INSTRUCTIONS 3. Apply silicone adhesive (not included) to the top edge of Sink (D). With the help of another adult, lower the sink onto the back side of the stone top. Make sure the sink over-flow hole is facing the front of stone top. Be sure to align the sink well with the stone top cut out allowing for equal stone overhang on the front, back and sides of the ceramic sink (D).
  • Page 6 INSTALLATION INSTRUCTIONS 6. Clean area where the vanity (A) will be permanently located prior to beginning installation, ensuring the vanity (A) will not interfere with any water supply and drain lines once mounted. Locate wall studs and mark locations. With the help of another adult, place completed Vanity Cabinet Assembly to its final location.
  • Page 7 INSTALLATION INSTRUCTIONS 8. Apply adhesive (not included) to unpolished side and bottom of backsplash (C). Position backsplash (C) on top (B) and against wall. Clean any excess adhesive before allowing to dry. 9. Locate small drawers (I) and set aside. Fully extend lower drawer glide tracks.
  • Page 8 INSTALLATION INSTRUCTIONS 10. Place shelf (G) on top of shelf pins (FF). 11. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in or out.
  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •...
  • Page 10: Part Description

    REPLACEMENT PARTS FOR 1328VB-48-220 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Backsplash PU17-48EW-BS Touch Up Pen OX-0610 Sink PU17-420*310-Rect-S Sink Clamp PU17-65x20-SB Left Door 1328VB-48-220-001...
  • Page 11 REPLACEMENT PARTS FOR 1328VB-48-236 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Backsplash PU17-48BGrte-BS Touch Up Pen W3504A Sink PU17-420*310-Rect-S Sink Clamp PU17-65x20-SB Left Door 1328VB-48-236-001...
  • Page 12 REPLACEMENT PARTS FOR 1328VB-48-241 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Backsplash PU17-48DGR-BS Touch Up Pen OF-0010 Sink PU17-420*310-Rect-S Sink Clamp PU17-65x20-SB Left Door 1328VB-48-241-001...
  • Page 13 REPLACEMENT PARTS FOR 1328VB-48-242 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Backsplash PU17-48CAR-BS Touch Up Pen OF-0120R Sink PU17-420*310-Rect-S Sink Clamp PU17-65x20-SB Left Door 1328VB-48-242-001...
