TM

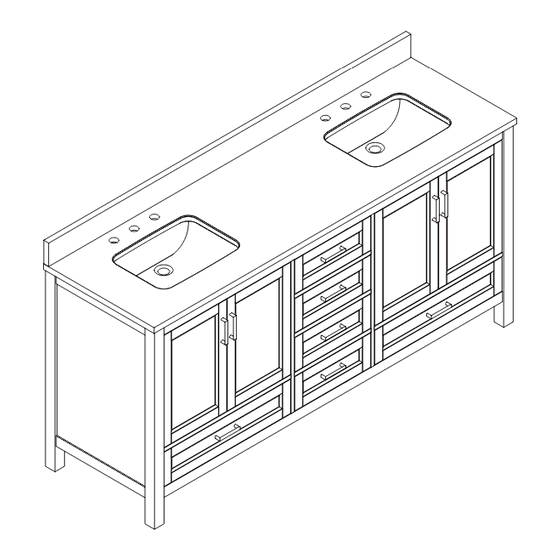

Durham Bathroom Vanity
72-IN Vanity Base and Top
( 72-IN W x 22-IN D x 35-IN H)
Date Purchased _______________________
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service department at
1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday.
www.greentouchhome.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Greentouch Scott Living 1328VB-72-220
Summary of Contents for Greentouch Scott Living 1328VB-72-220

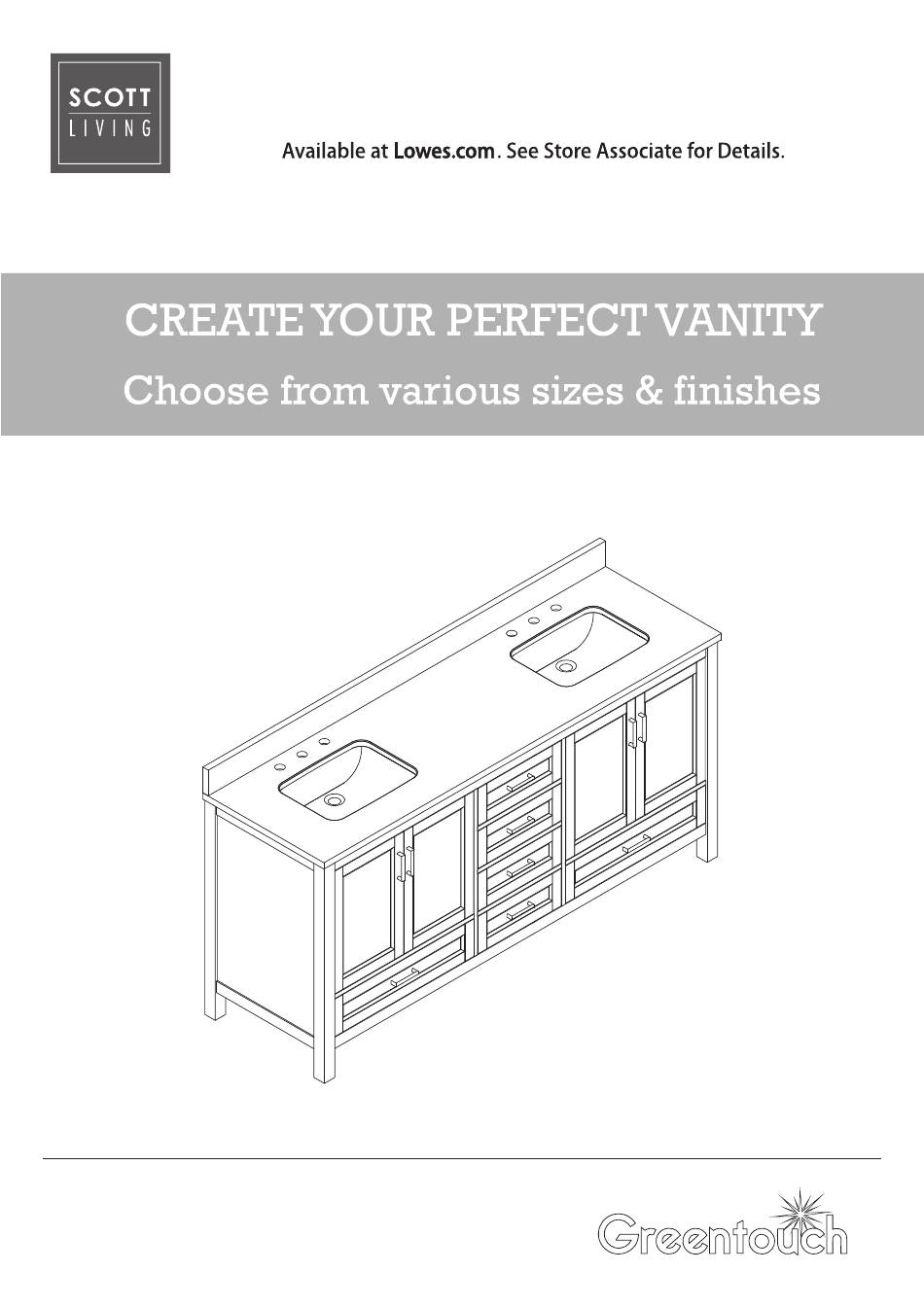

- Page 1 Durham Bathroom Vanity 72-IN Vanity Base and Top ( 72-IN W x 22-IN D x 35-IN H) Date Purchased _______________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday. www.greentouchhome.com...
- Page 2 MODEL NUMBER DESCRIPTION 1328VB-72-220 72" Chocolate Finish Vanity Base & Sink 1328VB-72-236 72" Espresso Finish Vanity Base & Sink 1328VB-72-241 72" White Oak Finish Vanity Base & Sink 1328VB-72-242 72" Light Gray Finish Vanity Base & Sink 2500VT-72-900 72" Carrara Marble Top with Backsplash 2500VT-72-901 72"...
-
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 2 Box 1 of 2 Backsplash Sink Left Door (preassembled to Vanity (A)) Right Door (preassembled to Vanity (A)) Shelf Box 2 of 2 Large Drawer (preassembled to Vanity (A)) Small Drawer (preassembled to Vanity (A)) -
Page 4: Installation Instructions
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for adhesive to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, adhesive, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS... - Page 5 INSTALLATION INSTRUCTIONS 3. Clean area where the vanity (A) will be permanently located prior to beginning installation, ensuring the vanity (A) will not interfere with any water supply and drain lines once mounted. Locate wall studs and mark locations. With the help of another adult, place completed Vanity Cabinet Assembly to its final location.
- Page 6 INSTALLATION INSTRUCTIONS 5. Apply adhesive (not included) to unpolished side and bottom of backsplash (C). Position backsplash (C) on top (B) and against wall. Clean any excess adhesive before allowing to dry. 6. Locate small drawers (I) and set aside. Fully extend lower drawer glide tracks.
- Page 7 INSTALLATION INSTRUCTIONS 7. Place shelves (G) on top of shelf pins. 8. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in or out.
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 9: Part Description
REPLACEMENT PARTS FOR 1328VB-72-220 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Sink PU17-18x14-SQUARE Shelf Pin PU17-SP-002 Left Door 1328VB-72-220- Handle CF-96-1328-BN 001/002 Right Door... - Page 10 REPLACEMENT PARTS FOR 1328VB-72-236 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Sink PU17-18x14-SQUARE Shelf Pin PU17-SP-002 Left Door 1328VB-72-236- Handle CF-96-1328-BN 001/002 Right Door...
- Page 11 REPLACEMENT PARTS FOR 1328VB-72-241 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Sink PU17-18x14-SQUARE Shelf Pin PU17-SP-002 Left Door 1328VB-72-241- Handle CF-96-1328-BN 001/002 Right Door...
- Page 12 REPLACEMENT PARTS FOR 1328VB-72-242 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Sink PU17-18x14-SQUARE Shelf Pin PU17-SP-002 Left Door 1328VB-72-242- Handle CF-96-1328-BN 001/002 Right Door...
