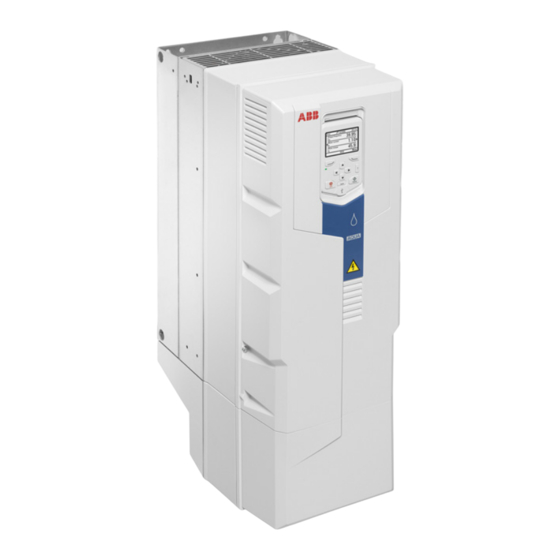

ABB ACQ580-01 Quick Installation And Start-Up Manual

Drives for water, frames r6 to r9
Hide thumbs Also See for ACQ580-01:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual, Quick Installation and Start-up Manual
—

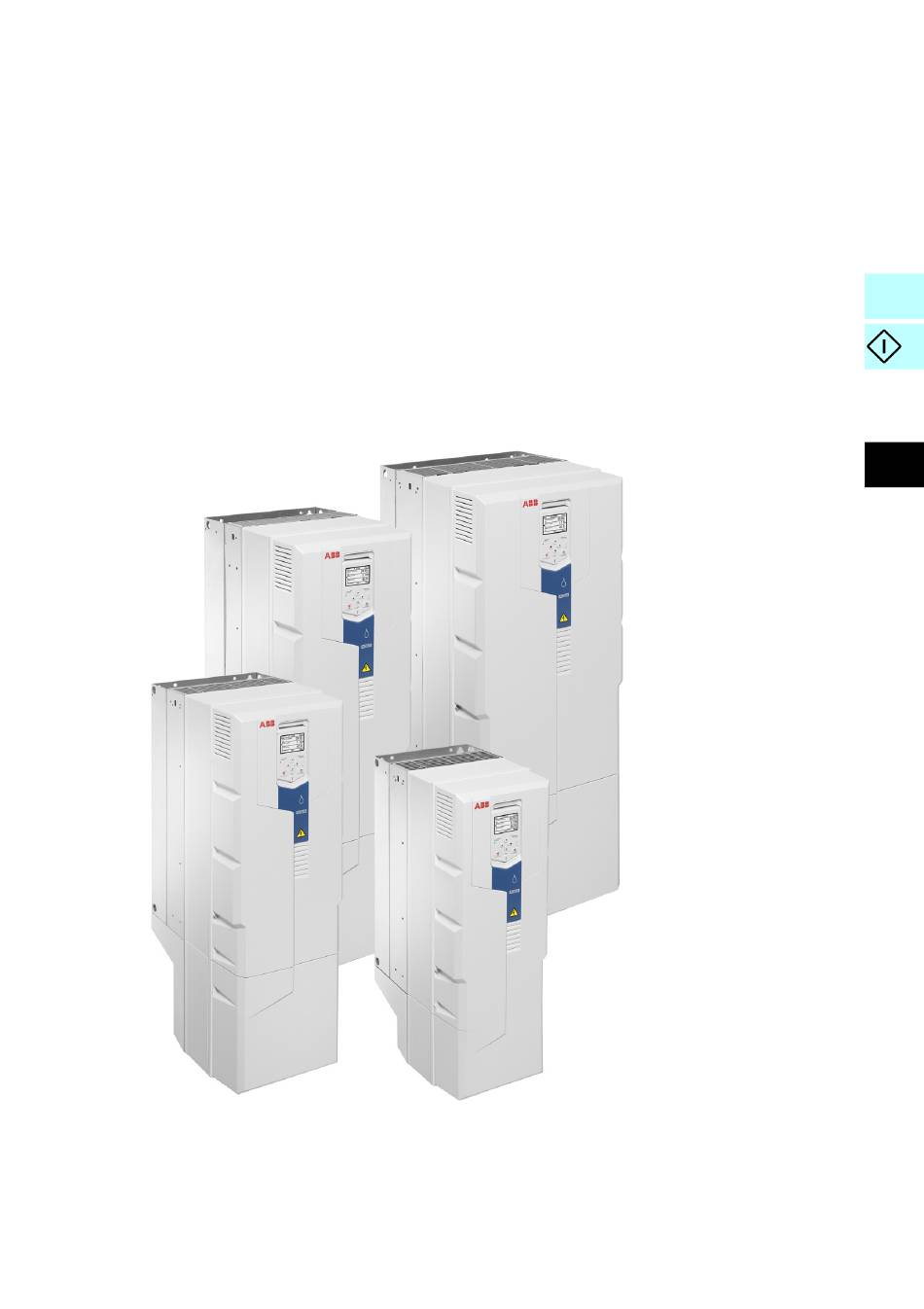

DRIVES FOR WATER
ACQ580-01 drives, frames R6 to R9
Quick installation and start-up guide
3AXD50000037301 Rev C MUL
EFFECTIVE: 2019-06-29
R0-
R3
R6-
R9
EN
DE
ES
FR
IT
RU
SV

Advertisement

Table of Contents
loading

Related Manuals for ABB ACQ580-01

Summary of Contents for ABB ACQ580-01

  • Page 1 — DRIVES FOR WATER ACQ580-01 drives, frames R6 to R9 Quick installation and start-up guide 3AXD50000037301 Rev C MUL EFFECTIVE: 2019-06-29...
  • Page 2 List of related manuals in English Drive manuals and guides Code (English) ACQ580 pump control program firmware manual 3AXD50000035867 ACQ580-01 (0.75 to 250 kW, 1.0 to 350 hp) hardware 3AXD50000044862 manual ACQ580-01 frames R1 to R5 quick installation and start- 3AXD50000044864...

  • Page 3: Table Of Contents

    Table of contents 3 Table of contents List of related manuals in English Ratings and fuses IEC ratings at UN = 230 V, 400 V and 480 V ........7 UN = 230 V .
  • Page 4 Providing feedback on ABB Drives manuals ........
  • Page 5 — DRIVES FOR WATER ACQ580-01 drives Quick installation guide Frames R6 to R9 English ..3AXD50000037301 Rev C MUL EFFECTIVE: 2019-06-29...
  • Page 6  2019 ABB Oy. All Rights Reserved.
  • Page 7 144A-2 1035 171A-2 1251 213A-2 1521 276A-2 2061 3AXD00000586715.xls L Type Input ratings Output ratings Frame size ACQ580-01- 1-phase U = 230 V 144A-2 18.5 171A-2 213A-2 276A-2 3AXD00000586715.xls L Continuous current, no overloadability = 400 V  Type Input...

  • Page 8: Gg Fuses

    3936 363A-4 4836 1150 430A-4 6036 1150 3AXD00000586715.xls L gG fuses Type Min. short- Input gG (IEC 60269) circuit current ACQ580-01- current Nominal Voltage ABB type current rating 60269 size 3-phase U = 230 V 144A-2 1700 144.0 300000 OFAF0H200...

  • Page 9: Ur Or Ar Fuses

    R6…R9 Quick installation guide 9 uR or aR fuses Type Min. short- Input uR or aR (DIN 43620 blade style) circuit current ACQ580 Nominal Voltage Bussmann IEC 60269 current -01- current rating type size 3-phase U = 230 V 144A-2 1000 144.0 46500...
  • Page 10 10 R6…R9 Quick installation guide...

  • Page 11: En - R6

    EN – R6…R9 Quick installation guide This guide briefly describes how to install the drive for IEC use. For complete information on installation, see ACQ580-01 (0.75 to 250 kW, 1.0 to 350 hp) hardware manual (3AXD50000044862 [English]). For start-up instructions, see chapter EN –...

  • Page 12: Select The Power Cables

    The allowed operating temperature range of the drive is -15 to +50 °C (+5 to +122 °F). No condensation or frost is allowed. For more information on the ambient temperature and derating, see chapter Technical data in ACQ580-01 (0.75 to 250 kW, 1.0 to 350 hp) hardware manual (3AXD50000044862 [English]).

  • Page 13: Delta, And Tt Systems

    See section See section Checking the compatibility with IT (ungrounded), corner-grounded delta, midpoint-grounded delta, and TT systems (for IEC) in ACQ580-01 (0.75 to 250 kW, 1.0 to 350 hp) hardware manual (3AXD50000044862 [English]). WARNING! Do not install a drive with the ground-to-phase varistor connected to a system that the varistor is not suitable for.

  • Page 14: Connect The Power Cables

    14 EN – R6…R9 Quick installation guide Connect the power cables See figure on page 30. Use symmetrical shielded cable for motor cabling. If the cable shield is the sole PE conductor for drive or motor, make sure that is has sufficient conductivity for the PE.

  • Page 15: Connect The Control Cables

    EN – R6…R9 Quick installation guide 15 Connect the control cables See figure on page 31. It shows an example with one analog signal cable and one digital signal cable. Make the connections according to the default configuration in use. The default connections of the Water default configuration are shown in section Default I/O connections on page 16.

  • Page 16: Default I/O Connections

    OUT1 Safe torque off. Factory connection. Both circuits OUT2 must be closed for the drive to start. See chapter The Safe torque off function in ACQ580-01 (0.75 SGND to 250 kW, 1.0 to 350 hp) hardware manual (3AXD50000044862 [English]). 24 V AC/DC 24 V AC/DC+ in Ext.

  • Page 17: Install Optional Modules, If Any

    EN – R6…R9 Quick installation guide 17 Install optional modules, if any See chapter Electrical installation in ACQ580-01 (0.75 to 250 kW, 1.0 to 350 hp) hardware manual (3AXD50000044862 [English]). Install side plates and covers See figure on page 31.
  • Page 18 18 EN – R6…R9 Quick installation guide...
  • Page 20 20 R6…R9 Quick installation guide...
  • Page 21 — DRIVES FOR WATER ACQ580-01 drives Quick start-up guide Frames R1 to R9 English..3AXD50000037301Rev C MUL EFFECTIVE: 2019-06-29...
  • Page 22  2019 ABB Oy. All Rights Reserved.

  • Page 23: En - Quick Start-Up Guide

    This guide describes how to start-up the drive using the Set-up assistant on the HVAC EN – Quick start-up guide This guide describes how to start-up the drive using the Set-up assistant on the HVAC control panel. For complete information on start-up, see ACQ580 pump control program firmware manual (3AXD50000035867 [English]).
  • Page 24 24 This guide describes how to start-up the drive using the Set-up assistant on the The First start assistant guides you through the first start-up. The assistant begins automatically. Wait until the control panel enters the view shown on the right. Select the language you want to use by highlighting it (if not already highlighted) and pressing...
  • Page 25 Refer to the motor or pump nameplate for the following nominal value settings of the motor. Enter the values exactly as shown on the motor or pump nameplate. Example of a nameplate of an induction (asynchronous) motor: ABB Motors motor M2AA 200 MLA 4 IEC 200 M/L 55 Ins.cl.
  • Page 26 26 This guide describes how to start-up the drive using the Set-up assistant on the If you want to make a backup of the settings made so far, select Backup and press (Next). If you do not want to make a backup, select Not now and press (Next).
  • Page 27 This guide describes how to start-up the drive using the Set-up assistant on the HVAC 3 – Hand/Off/Auto operation The drive can be in remote control or local control, and in local control there are additionally two different modes. Remote control: Drive is controlled from the I/O or the fieldbus.
  • Page 28 28 This guide describes how to start-up the drive using the Set-up assistant on the...
  • Page 29 R6…R9 Figures A IP21 IP21 SYMMETRICALLY GROUNDED TN SYSTEMS (TN-S) = CENTER-GROUNDED M8×6 571/ 623/ 701/ 718/ (mm/in) 22.5 24.5 27.6 28.3 531/ 583/ 658/ 658/  (mm/in) 20.9 23.0 25.9 25.9 213/ 245/ 263/ 345/ (mm/in) 10.3 13.6 300/ 300/ 300/ 300/...
  • Page 30 ACQ580-01 R6…R9 T1/U T2/V T3/W M5×25/35 N·m lbf·ft N·m lbf·ft N·m lbf·ft N·m lbf·ft L1, L2, L3, T1/U, T2/V, T3/W R6...R9 R6...R9 3 ~ M R8...R9 only M5×25 7a 7b R8...R9 M5×12...
  • Page 31 R6…R9 Figures E IP21 IP21 0.5...0.6 N·m/ 4 lbf·ft IP21 IP55 0.5...0.6 N·m/ 4 lbf·ft M4×20...

  • Page 33: Product And Service Inquiries

    Product and service inquiries Address any inquiries about the product to your local ABB representative, quoting the type designation and serial number of the unit in question. A listing of ABB sales, support and service contacts can be found by navigating to www.abb.com/searchchannels.
  • Page 34 © Copyright 2019 ABB. All rights reserved. Specifications subject to change without notice.
