O P E R A T I N G I N S T R U C T I O N S
TR110 Lock
Safety locking device

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR110 Lock and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK TR110 Lock

Summary of Contents for SICK TR110 Lock

  • Page 1 O P E R A T I N G I N S T R U C T I O N S TR110 Lock Safety locking device...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Commissioning.................. 35 Switching on....................Teach-in..................... Testing....................... Regular thorough check................8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 4 13.3 Additional accessories................Annex....................66 14.1 Compliance with EU directives..............O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 5: About This Document

    Indicates a situation presenting possible danger, which may lead to death or serious injuries if not prevented. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 6 Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 7: Safety Information

    8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 8: Product Description

    ON state. In addition, the locking function application diagnostic output (Out AUX LOCK) switches to the ON state. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 9: Product Characteristics

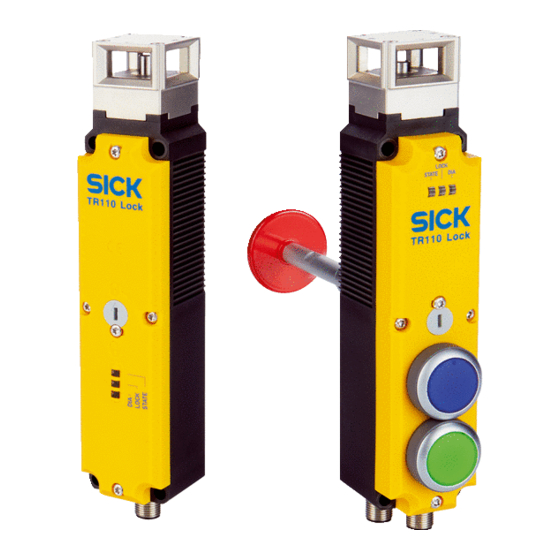

    The TR110 Lock safety locking device with pushbuttons features two pushbuttons: 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 10 Status indicators The safety locking device indicates status information using multiple LEDs. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 11 Figure 4: Status LEDs STATE LOCK DIAG LEDs in the pushbuttons 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 12: Manual Unlocking

    The emergency release can be retrofitted as an accessory. The emergency release can be used to actuate the mechanical unlocking mechanism without tools. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...
  • Page 13 Mount the escape release so that actuation can only take place from inside of pro‐ tected area (hazardous area). 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 14 Figure 7: Escape release Red button of the escape release O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 15: Project Planning

    55). Pay attention to the door hinge. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 16 The shaft of the escape release can be extended by 30 mm or 50 mm using with spac‐ O P E R A T I N G I N S T R U C T I O N S | TR110 Lock...

  • Page 17: Integration In The Electrical Control System

    If voltage is interrupted at the magnet, the locking device remains locked and the pro‐ tective device cannot be opened immediately. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 18 0 V connection of the locking solenoid is connected using the 0 V connection of the safety locking device. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...
  • Page 19 The machine must switch to the safe state at any time if at least one OSSD in an OSSD pair switches to the OFF state. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 20 This is not a safety output. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...
  • Page 21 The connected OSSDs act like the OSSDs of a single device. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 22 = Load current of locking function application diagnostic output (max. 50 mA) OAUXL O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 23: Testing Plan

    Determination of the thorough checks must be documented in a traceable manner. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 24: Mounting

    Turn the actuating head in the desired direction. Tighten the screws to 1.2 Nm. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 25: Mounting The Safety Switch

    The actuator must not be used for guiding or used as a stop. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 26: Mounting The Radius Actuator

    Spacers with lengths of 30 mm or 50 mm for the escape release shaft (optional). O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 27: Mounting The Emergency Unlocking

    Press on the cover caps until they audibly snap in. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 28: Removing The Cover Caps

    Figure 24: Cover cap removal, step 1 Figure 25: Cover cap removal, step 2 O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 29: Electrical Installation

    IEC 60204-1. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 30 Not assigned Applies to the extension cables recommended as accessories. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 31 Figure 30: Device connection (male connector, M12, 8-pin, A-coded) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 32: Connection Of A Safe Series Connection

    Mount the connecting cable so that individual T-connectors (and thus a safety locking device) cannot be easily jumpered. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...
  • Page 33 Figure 33: Internal circuitry: T-connector for safe series connection 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 34 If the RST input is not used, it must be connected to 0 V. Further topics • "Accessories", page 63 O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 35: Commissioning

    The code for the actuator that was just taught-in is enabled in the safety switch. Check the effectiveness of the protective device. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 36 0 V DC to 24 V DC at the RST inputs of the safety switches. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock...

  • Page 37: Testing

    8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 38: Regular Thorough Check

    No loose plug connectors • No manipulation by employees O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 39: Operation

    Turn the emergency release clockwise until it latches at the following symbol: ✓ The locking device is unlocked. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 40: Actuating The Escape Release

    Press the red button of the escape release as far as it goes. ✓ The locking device is unlocked. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 41 The safety locking device operates in normal mode again. Carry out a functional test. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 42: Troubleshooting

    Self-test Self-test after switch-on Ö5 Hz 10 s O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 43 Ö 5 × Locked actuator detected Internal error 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 44: Decommissioning

    SICK will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 45: Technical Data

    20.4 V DC … 26.4 V DC Current consumption 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 46 Male connector, M12, 8-pin, A coded, and male connector, M12, 5-pin, A coded TR110-Sxx2Bxx O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 47 Vibration resistance EN IEC 60947-5-3 EN IEC 60947-5-3 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 48: Connecting Cables

    (m) O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 49: Safety Switch Dimensional Drawings

    Figure 40: Dimensional drawing of TR110-SRUCA00 and TR110-SLUCA0000 safety switches (mm) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 50 M12x1 Figure 41: Dimensional drawing of TR110-SRUSA01 and TR110-SRUFL0100 safety switches (mm) O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 51 Figure 42: Dimensional drawing of TR110-SRUCA0100 safety switch (mm) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 52 Figure 43: Dimensional drawing of TR110-SRUFL00, TR110-SLUFL00, TR110-SRUSA00 and TR110-SLUSA0000 safety switches (mm) O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...
  • Page 53 Figure 44: Dimensional drawing of TR110-SRU2B00 and TR110-SLU2B00 safety switches (mm) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 54 M12x1 Figure 45: Dimensional drawing of TR110-SRU2B000 safety switch (mm) O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 55: Actuator Dimensional Drawings

    Figure 49: Min. door radii for TR110-XABT angled actuator tor (mm) (mm) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 56 Figure 50: Dimensional drawing of TR110-XAFT hinged actuator (mm) hinged actuator (mm) O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 57 Figure 52: Dimensional drawing of TR110-XAFB hinged actuator (mm) hinged actuator (mm) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 58 Figure 54: Dimensional drawing of TR110-XAFL hinged actuator (mm) XAFL hinged actuator (mm) O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...
  • Page 59 Figure 56: Dimensional drawing of TR110-XAFR hinged actuator (mm) XAFR hinged actuator (mm) 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 60: Dimensional Drawings Of The Mounting Bracket

    91,5 Figure 58: Mounting bracket for safety locking device O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 61 Mounting bracket for actuator Figure 59: Mounting bracket for actuator 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 62: Ordering Information

    M12 female connector (5-pin), straight TR110-SLU2B00 6068077 M12 female connector (8-pin), straight O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...

  • Page 63: Accessories

    Ambient operating temperature: Down to -30°C with fixed installation. 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 64 Ambient operating temperature: Down to -30 °C with fixed installation. Ambient operating temperature: Down to −30° C with fixed installation. O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK...

  • Page 65: Additional Accessories

    Cover cap set, unprinted, 5 colors TR110-XTC 5339045 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...

  • Page 66: Annex

    (GBC Industrial Safety) (GBC Industrial Safety) authorized for technical documentation O P E R A T I N G I N S T R U C T I O N S | TR110 Lock 8023119/15LY/2019-10-28 | SICK Subject to change without notice...
  • Page 67 ANNEX 8023119/15LY/2019-10-28 | SICK O P E R A T I N G I N S T R U C T I O N S | TR110 Lock Subject to change without notice...
  • Page 68 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
