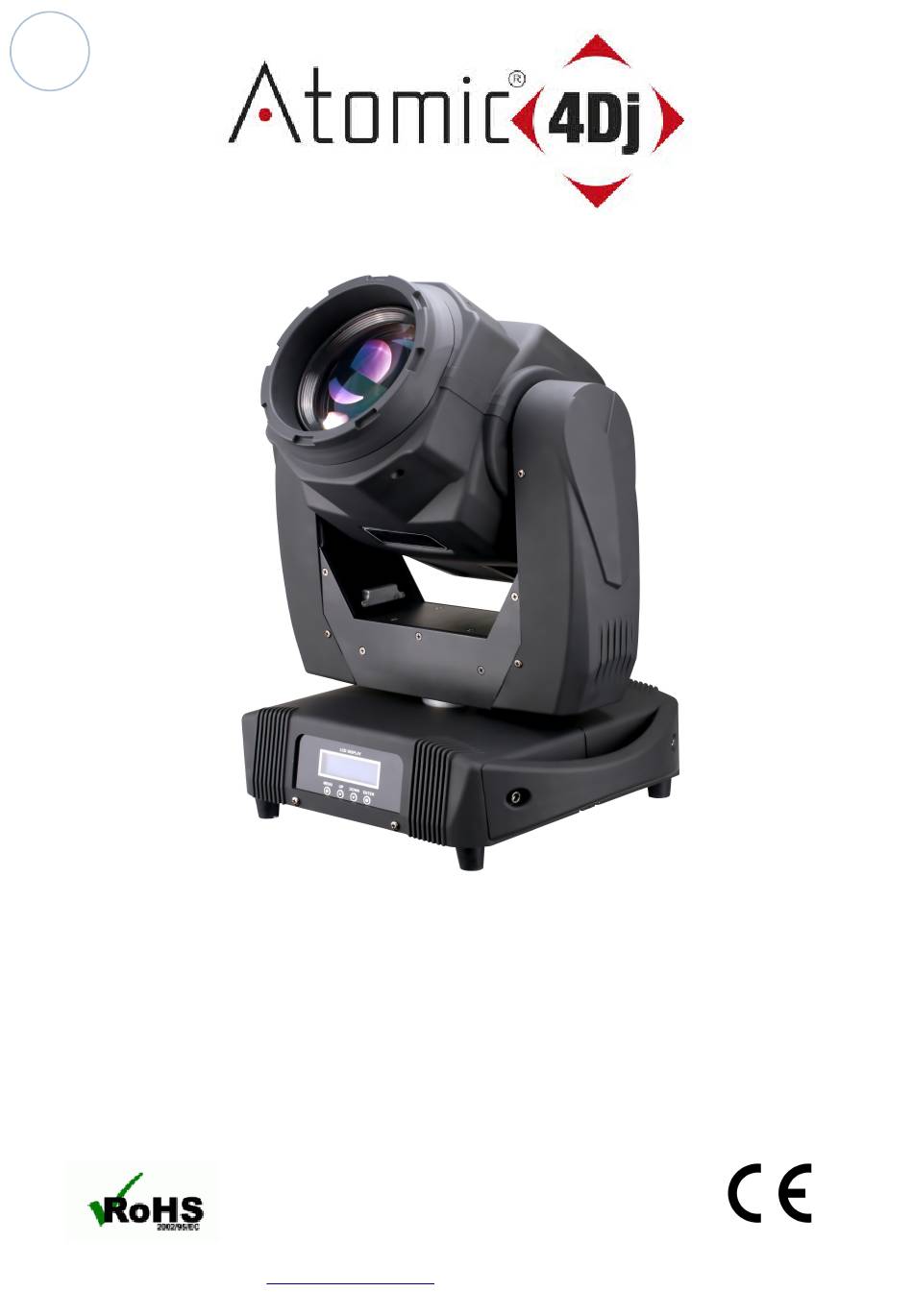

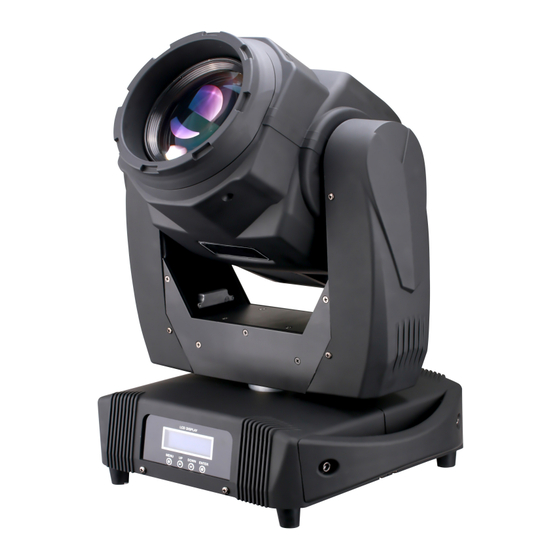

- Page 1 Atomic4Dj Probeam 7R User Manual Atomic4Dj Probeam7R – www.Atomic4Dj.com...
- Page 2 Contents Section 1. Getting Started Unpacking Safety Instruction Caution Section 2. Set Up Installation Controlling Board Machine Connection Section 3. Troubleshooting Troubleshooting Section 4. Reference Control Menu DMX Channel Specification Atomic4Dj Probeam7R – www.Atomic4Dj.com...
-
Page 3: Section 1. Getting Started
1pc Signal Cable 2pc Fast-lock Omega Clamp (1/4 turn) Thanks for using our Atomic4Dj Probeam2R. Carefully unpack the box and check the contents to ensure that all parts are present and in good conditions. If anything damaged during transit, notify the shipper immediately and keep the packing material for inspection. -
Page 4: Safety Instruction
To avoid electric shock, all fixtures must be connected to circuits with a suitable ground. Always secure fixture using a safety chain and carrying handles. Never carry the fixture by its cord. Atomic4Dj Probeam7R – www.Atomic4Dj.com... - Page 5 If exceptional problem happen, please contact related after-sale department or manufacturer. Any damage that cased by violating this manual is out of insurance, our company will not take the responsibility. Atomic4Dj Probeam7R – www.Atomic4Dj.com...
-
Page 6: Section 2. Set Up
Set one of the unit as master, choose auto-running function on the menu. Set other units as slave, press MENU button to DMX address setting state. Connect master and slave with signal cable. Then all slave units will run follow the master. Atomic4Dj Probeam7R – www.Atomic4Dj.com... - Page 7 4. DMX Out Connect 3 pin XLR signal cable with female connector to transfer signal to next unit 5. Switch Power on/power off 6. Power Input Connect power cable to obtain power. Atomic4Dj Probeam7R – www.Atomic4Dj.com...
- Page 8 2&3 of the last fixture. They are also readily available from specialty retailers. Complimentary signal cable can transmit signals to 20 unit fixtures at most. Signal amplifier is a must to connect more fixtures Atomic4Dj Probeam7R – www.Atomic4Dj.com...
-
Page 9: Section 3. Troubleshooting
No light, lamp Lamp missing or Disconnect fixture and replace lamp cuts out inter- blown mittently, or Fixture or lamp is Allow fixture to cool. If problem burns out too too hot persists, contact service technician quickly Atomic4Dj Probeam7R – www.Atomic4Dj.com... -
Page 10: Section 4. Reference
[0~255] CH:04 [0~255] CH:05 [0~255] CH:06 [0~255] CH:07 [0~255] CH:08 [0~255] Manual CH:09 [0~255] CH:10 [0~255] CH:11 [0~255] CH:12 [0~255] CH:13 [0~255] CH:14 [0~255] CH:15 [0~255] CH:16 [0~255] DMX512 Mode Auto Run Slave Lamp Color Tilt Atomic4Dj Probeam7R – www.Atomic4Dj.com... - Page 11 Focus 000-255 0-99 non- change 100-105 lamp off （keep on 3 seconds） 106-199 Lamp control non- change 200-205 lamp on（keep on 3 seconds） 206-255 non- change 0-254 non- change 255（keep on 3 Reset seconds then reset） Atomic4Dj Probeam7R – www.Atomic4Dj.com...
- Page 12 Effect wheel: 8 facet prism Scan: Pan 540°, Tilt 270° Beam Angle: 0°~2.5° Safety Protection The power will cut automatically when the machine is over heated or there is some problem of the system Machine Size：500*289*372 mm Machine Weight：17,2 kg Atomic4Dj Probeam7R – www.Atomic4Dj.com...
- Page 13 Atomic4Dj Probeam7R – www.Atomic4Dj.com...
