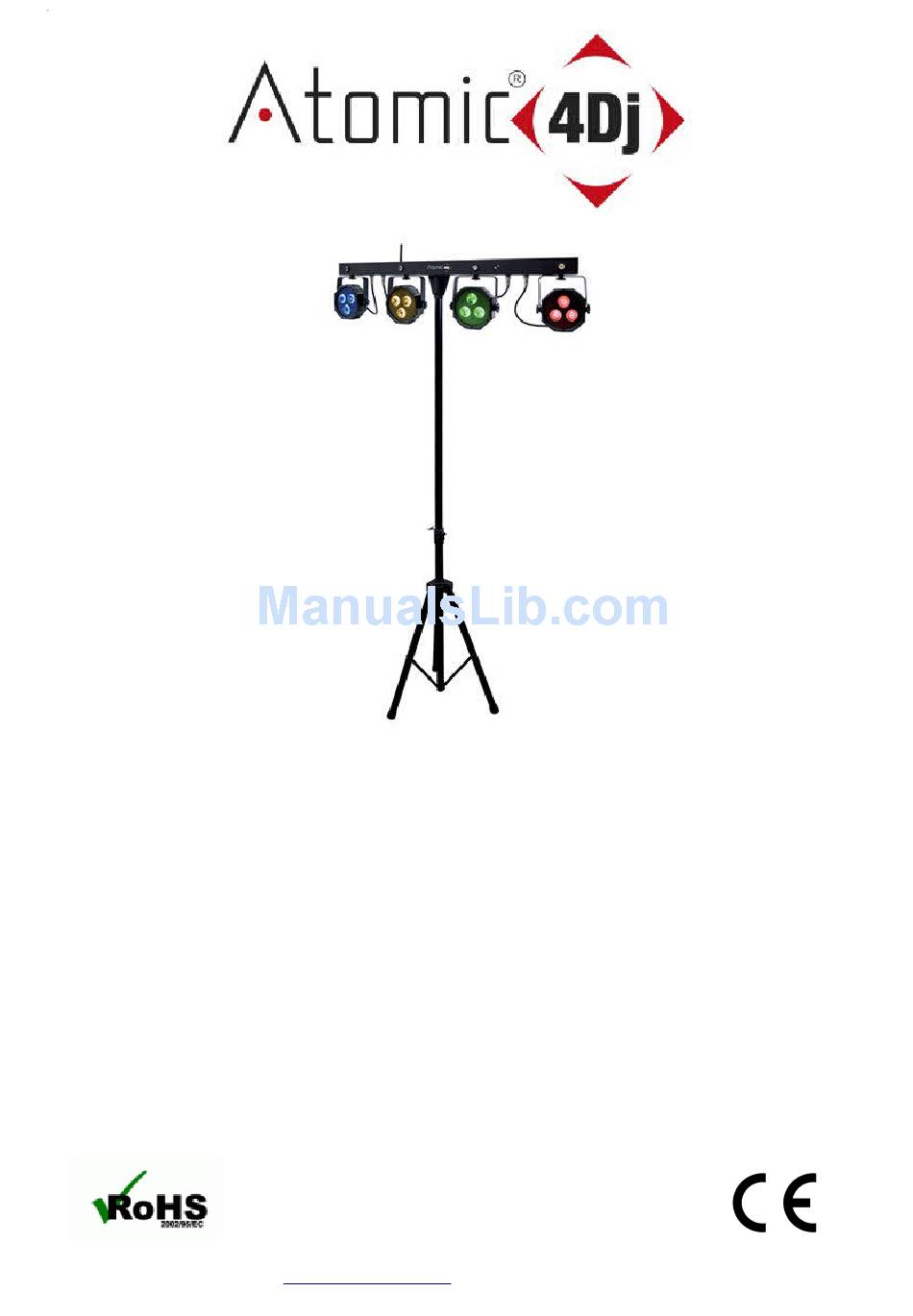

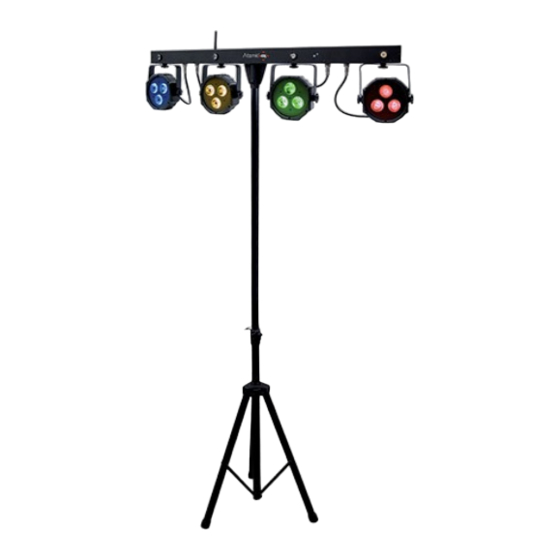

- Page 1 Atomic4Dj PLS4 Wireless Cod. 61098 User Manual Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 2 User should follow this user manual to operate this unit, and make sure that you are clear on all laser safety information and unit operation before power it on. Any wrong operation will make this unit out of warranty. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 3 Condense sometimes prevents the unit from working at full performance or may even cause damages. Don’t cover any ventilation openings as this may result in overheating. Don’t install it on flammable object. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 4 Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls The device should be installed out of reach of people and outside areas where persons may walk by or be seated. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 5 Every device’s power should be con- nected separately, so that device can be controlled individually. Cable spec.: Cable(EU Internatio- Cable(US) Brown Black Live Light blue White Neutral Yellow/Gr Yellow/Gre Earth Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 6 DMX plug. This plug is putting a 120 ohm resistance between “canon” plug’s 2 pin and 3 pin. Showing as below pic. Sticking this plug into the last device’s signal output interface, it will avoid the interference during the process of signal transmission. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 7 When working, all the lights will begin in auto mode. SOUD Press SOUND to activate the sound pro- gram controls. When working, all the lights will begin in sound mode. COLO Color setting: R-G-RG-B-RB-GB-RGB BLACKOUT Light off. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 8 Color manual adjustment R/G/BXXX LED color setting S.00-S.99 Flash light speed adjustment. S.00: all on; S.99 is the fastest SY-A Synchronous auto mode SY-M Synchronous sound mode S.01-S.99 Auto show speed. 01is the slowest, 99 is the Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 9 Channel address setting S001 Slave mode 001-255 Address setting M-En Be the master for synchronous mode.（under AUTO/SOUND/COLOR Mode） W-En Wireless pedal working mode TEST Aging testing and main board testing program. REST Restore the factory initial setup Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 10 DMX cable. M-En: master ENTER ON：turn on ENTER: stem mode into the master mode confirm setting next step Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 11 （2）A point will be shown on the screen if there’s no operation in 30s. （3）Machine address bit instruction, face to the LED screen, from left to right, the address is 1- 2-3-4. （4）The nixie tube will twinkle when there’s no signal input to SLAVE,D001. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 12 AUTO PAR2 030-044 AUTO PAR3 045-059 AUTO PAR4 060-074 AUTO PAR5 075-089 AUTO PAR6 090-104 AUTO PAR7 105-119 AUTO PAR8 120-134 AUTO PAR9 135-149 AUTO PAR10 150-164 AUTO PAR11 165-179 AUTO PAR12 180-194 AUTO PAR13 Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 13 SOUND PAR2 040-059 SOUND PAR3 060-079 SOUND PAR4 080-099 SOUND PAR5 100-119 SOUND PAR6 120-139 SOUND PAR7 140-159 SOUND PAR8 160-179 SOUND PAR9 180-199 SOUND PAR10 200-219 SOUND PAR11 220-255 SOUND PAR12 Sound 000-024 SOUND LED1 Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 14 Value Description 0-255 Program speed setting Channel Value Description 000-255 Red Dimmer 000-255 Green Dimmer 000-255 Blue Dimmer 000-191 Total Dimmer 192-200 Sound Flash 201-249 Flash Speed 250-255 All On 000-255 Sound LED Flash 24CH Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 15 000-255 Blue Dimmer CH19 000-255 Total Dimmer CH20 000-255 Flash Speed CH21 000-255 Flash Speed of 1 CH22 000-255 Flash Speed of 2 CH23 000-255 Flash Speed of 3 CH24 000-255 Flash Speed of 4 Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 16 AC power: switching power supply, 100V-240V 50/60Hz (for all international markets) Fuse ： T 1.6A, 250V Stand : 1.5m—2.5m（adjustable） Weight ： 10.2kg Product size：L1032×W71×H235mm Packing size: L1057×W145×H457mm Shipping data: 40HQ: 924ctns / 40GP: 616ctns / 20GP: 375ctns Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 17 Contattare un centro assistenza nei casi in cui : - l’apparato non funziona o funziona in modo anomalo. - il cavo d’alimentazione o la spina sono danneggiati. - Sono penetrati oggetti estranei o è stato versato del liquido nell’apparecchio. Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 18 (Decreto legislativo 6 Settembre 2005, n.206) la garanzia di mesi 24 dalla data di consegna (fa fede la data della prova di acquisto). Qualora si riscontrassero entro la data di garanzia difetti imputabili a materiali difettosi o difetti di costruzione, occorre comunicare tempestivamente il problema al Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 19 Il centro assistenza provvederà quindi alla sostituzione o riparazione dei prodotti, declinando tuttavia ogni obbligo di risarcimento per danni diretti o indiretti eventualmente derivanti dalla difettosità. Per ulteriori informazioni : www.Atomic4Dj.Com Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
- Page 20 The product is determined for commercial disposal. The product mentioned above is in conformity with norm-setting regulations: Directive EP and C No.:2004/108/EC EN 55015:2006+A1:2007+A2:2009 EN 61547:2009 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 Directive EP and C No.:2006/95/EC EN 60598-1:2008+A11:2009 EN 60598-2-17:1989+A2:1991 Atomic4Dj PLS4 Wireless – www.Atomic4Dj.com...
