Summary of Contents for Chiltern Invadex AquaMaster

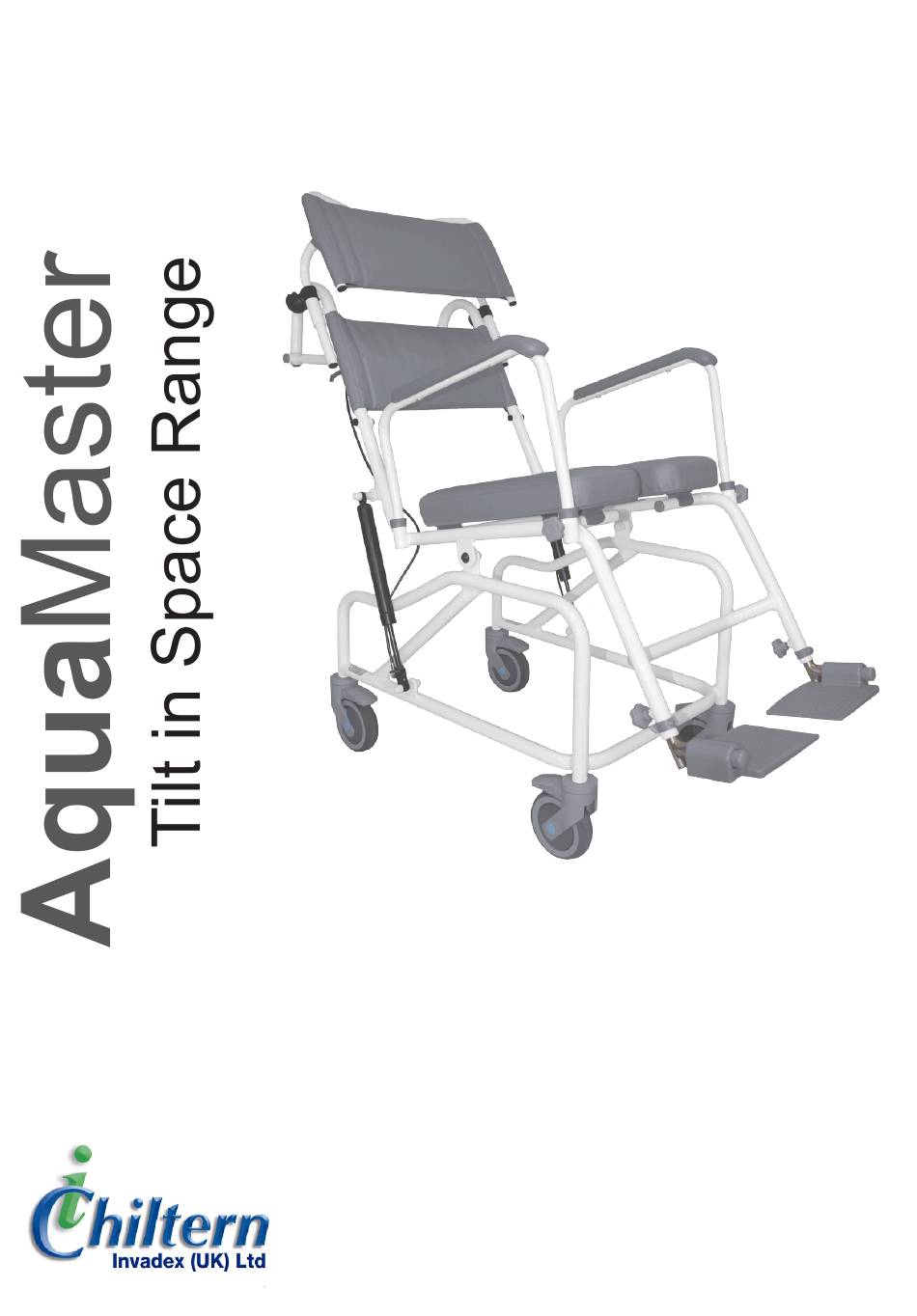

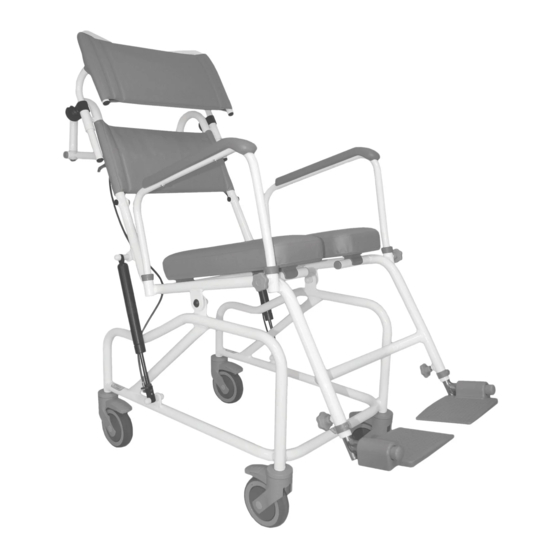

- Page 1 This user guide contains essential information in relation to safe use and maintenance and should be retained with the shower chair for reference User Guide Paediatric 18” and 21” models...
-
Page 2: Table Of Contents
Follow the recommendations in this guide to ensure maximum benefit from your shower commode chair. Your Chiltern Invadex shower chair has been designed and tested to meet the highest standards of safety. Read the safety section of this guide prior to use, this is contained on page 1. -
Page 3: Safety Considerations
This section should be read and understood prior to use of the shower chair. Failure to adhere to the below can lead to serious injury. Should clarification of any point be required, please call Chiltern Invadex on 01869 365500 prior to use. •... -
Page 4: Using A Commode Pan
This is an optional accessory and is not supplied with the chair. The AquaMaster Tilt in Space can be used with a commode facility, this can be fitted at anytime by the purchase of a commode pan cradle and commode pan. -
Page 5: Armrest Adjustment
Page 3 CHAIRS Tilt in Space Armrest Adjustment Armrests have been designed to be adjustable to aid side transfer onto the chair. There are two armrest types, fixed and tip up. Fixed armrests • The armrests can be removed for easy transfer, as shown. •... -
Page 6: Operating Instruction
CHAIRS Tilt in Space Operating Instruction The Aquamaster tilting shower chair is simple to operate via a single rear mounted control lever fitted on the cross bar push handle, this operates the two stainless steel gas springs and ensures that it is light and easy to use. - Page 7 Page 5 CHAIRS Tilt in Space Check that both sides of the foot rests are adjusted equally and carefully reinsert the pin clips to either side of the foot rest,ensuring that the clips pass through the framework and the foot rest is securely held in place,the threaded hand wheel is then tightened to prevent movement and provide a stable resting platform.
-
Page 8: Fitting Instruction Waist Strap
Page 6 CHAIRS Tilt in Space Fitting the waist strap Important Safety Note: an ill fitted or faulty waist strap can be extremely harmful. Before each use it is important to ensure that; • the strap has been assessed as suitable for the user; •... -
Page 9: Height Change (Engineer Required)
Chiltern Invadex. Cleaning and Maintenance It is recommended that your shower chair is serviced at least annually by Chiltern Invadex or an author- ised, competent service agent. Where the chair is maintained by a loan store, the shower chair should be fully serviced, prior to re-issue. -
Page 10: Spare Parts
Page 8 CHAIRS Tilt in Space Spare Parts - All models The following pages provide details of the most commonly requested parts, other replaceable parts are available, please contact us for details on 01869 365500 or at sales@chilterninvadex.co.uk . Flat padded Aperture Horseshoe Horseshoe + Skt... - Page 11 Page 9 CHAIRS Tilt in Space Spare Parts - All models Item Description Part number Seats (see page 10 for horseshoe & aperture sizing guidance) 18” Medium aperture 211-01003 18” Large aperture 211-01004 18” Medium horseshoe skirted 211-01007 18” Large horseshoe skirted 211-01008 18”...
-
Page 12: Seat Sizing Guidance
Page 10 CHAIRS Tilt in Space Spare Parts - All models Item Description Part number Backrest Backrest fabric 201-00019 Cable ties 002-00006 E-clip 002-00010 Headrest Paediatric headrest CHCS3053-P 18” Standard (shown) CHCS3053 18” In-line (not shown) CHCS3054 21” Standard (shown) CHCS3055 21”... -
Page 13: Accessories
Page 11 CHAIRS Tilt in Space Accessories For Paediatic accessories please contact us. Footrests with Footrests with toe heel straps straps Commode pan round 201-00147 Round pan 211-00513 Pan cradle Used instead of standard footplates. Provides additional support for Prevents involuntary movements feet. -
Page 14: Accessories
Page 12 CHAIRS Tilt in Space Accessories Pommel Channel armrest Clip on side pads Provides extra padded side support Fitted to the front of an aperture Fitted instead of standard armrests 25/50/75mm thickness options seat, the Pommel reduces the risk to provide greater support to the of clients sliding off the seat. -
Page 15: Warranty
Chiltern Invadex shall in no event be liable for any damages, costs or expenses arising from any claim made under this warranty (save for any legal liability of Chiltern Invadex for death or personal injury resulting from the company’s negligence in respect of its products). - Page 16 C o p yri g h t ©...
