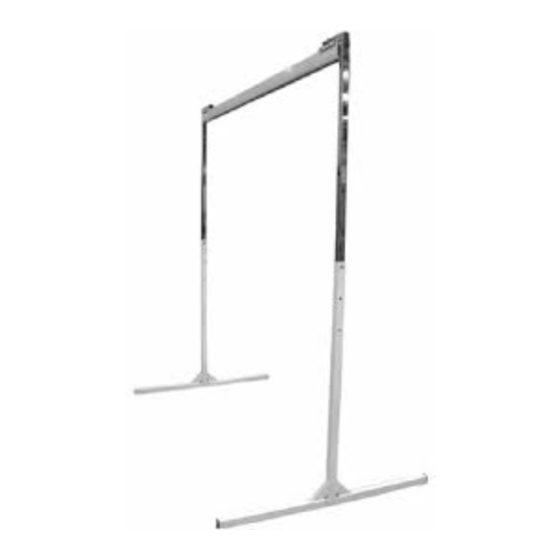

Chiltern Invadex T frame gantry Assembly Instructions

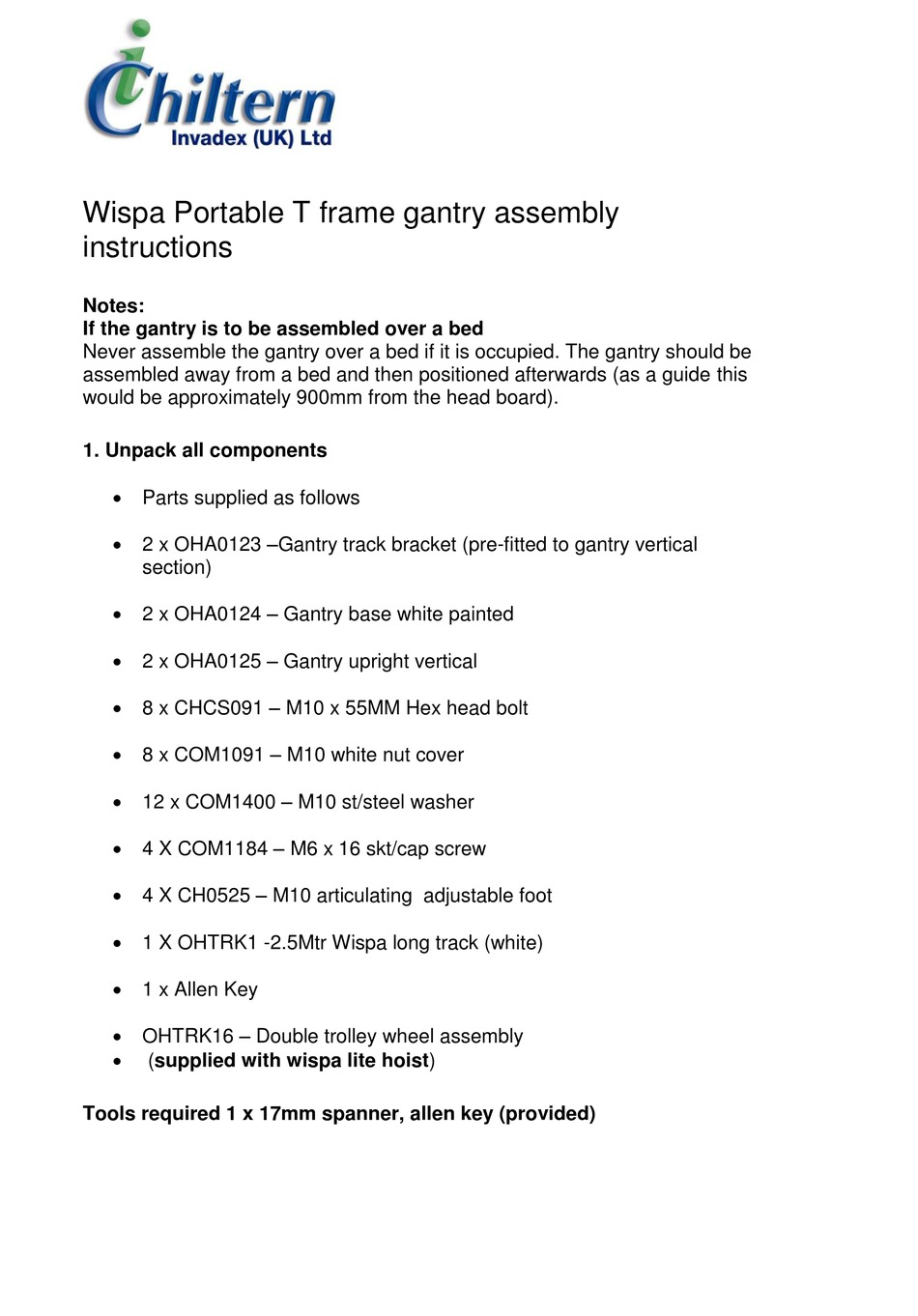

Wispa Portable T frame gantry assembly

instructions

Notes:

If the gantry is to be assembled over a bed

Never assemble the gantry over a bed if it is occupied. The gantry should be

assembled away from a bed and then positioned afterwards (as a guide this

would be approximately 900mm from the head board).

1. Unpack all components

 Parts supplied as follows

 2 x OHA0123 –Gantry track bracket (pre-fitted to gantry vertical

section)

 2 x OHA0124 – Gantry base white painted

 2 x OHA0125 – Gantry upright vertical

 8 x CHCS091 – M10 x 55MM Hex head bolt

 8 x COM1091 – M10 white nut cover

 12 x COM1400 – M10 st/steel washer

 4 X COM1184 – M6 x 16 skt/cap screw

 4 X CH0525 – M10 articulating adjustable foot

 1 X OHTRK1 -2.5Mtr Wispa long track (white)

 1 x Allen Key

 OHTRK16 – Double trolley wheel assembly



(supplied with wispa lite hoist)

Tools required 1 x 17mm spanner, allen key (provided)

Table of Contents

Do you have a question about the T frame gantry and is the answer not in the manual?

Page 1 Wispa Portable T frame gantry assembly instructions Notes: If the gantry is to be assembled over a bed Never assemble the gantry over a bed if it is occupied. The gantry should be assembled away from a bed and then positioned afterwards (as a guide this would be approximately 900mm from the head board).
Page 2 2. Assembly The T Frame gantry is supplied in five parts with the gantry base and the uprights supplied fitted together for ease of transport, to adjust for height remove the two M10 X 55mm bolts that hold the vertical upright within the T shaped gantry base.
Page 3 4. Adjusting the height of the gantry The gantry should be level in all directions. If the height of the gantry needs to be raised. fixing bolts will require removal and the top section adjusting to the specified height . Secure with the fixing bolts provided.
Page 4 6. Final safety check Prior to hoisting a client check: All fixing bolts have been securely tightened The gantry is level in all directions and level on floor The height and width of the gantry are appropriate for the task e.g. There is sufficient space to position a wheelchair or shower chair at the side of the bed for transfer The gantry is now ready for use.
