Summary of Contents for Chiltern Invadex TRT1

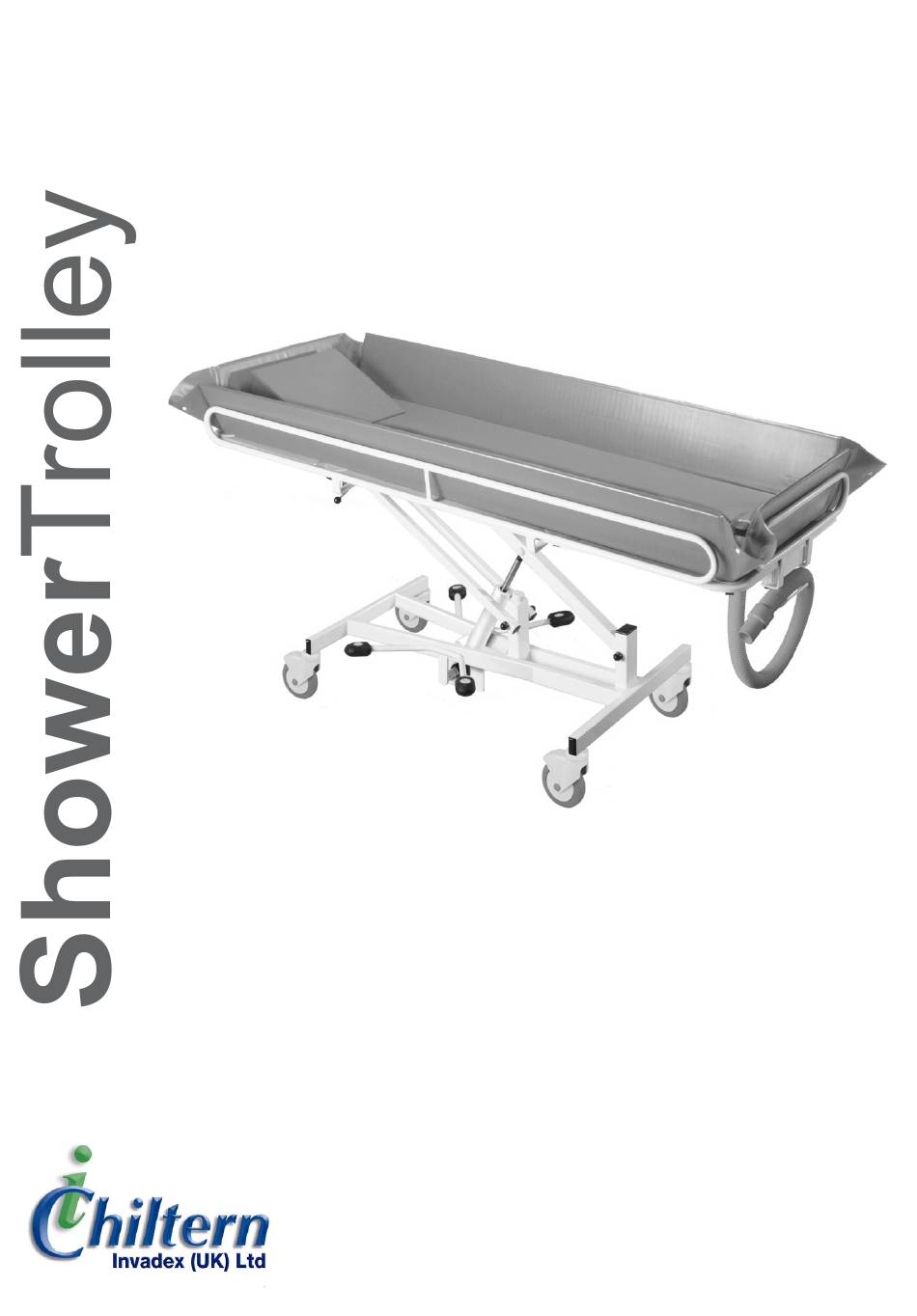

- Page 1 This user guide contains essential information in relation to safe use and maintenance and should be retained with the shower trolley for reference User Guide TRT1 Height Adjustable - Hydraulic TRT2 Static Height TRT3 Paediatric Height Adjustable - Hydraulic TRT4 Height Adjustable - Electric...
-
Page 2: Table Of Contents
Follow the recommendations in this guide to ensure maximum benefit from your shower trolley. Your Chiltern Invadex shower trolley has been designed and tested to meet the highest standards of safety. Read the safety section of this guide prior to use, this is contained on page 1. -
Page 3: Safety Considerations
This section should be read and understood prior to use of the shower trolley. Failure to adhere to the below can lead to serious injury. Should clarification of any point be required, please call Chiltern Invadex on 01869 365500 prior to use. •... -
Page 4: Operating Instruction
Page 2 Shower Trolleys Operating Instruction Position the shower trolley near to the showering facility and locate the outlet pipe into a suitable waste. Prior to use, inspect the shower trolley for signs of distortion on the cot sides or latches. If the item is damaged it should be considered unsafe and replaced. -
Page 5: Applying The Brakes
Page 3 Shower Trolleys Applying the Brakes To ensure the safety of both the end user and the carers, the braked castors should be checked for damage prior to each use and applied during transfer and when in use. As standard, shower trolleys have 4 braked castors. Braked castors are indicated by a GREY locking lever. -
Page 6: Latch Operation & Adjustment
Page 4 Shower Trolleys Latch Operation & Adjustment As the side rail of the trolley is lifted, the latch makes contact with the locating pin. As you continue to lift the latch opens and finally clicks over the pin. As shown in A & B. There should be no reason to open the latch manually to achieve closure. -
Page 7: Cleaning & Maintenance
(or a new liner obtained) and subjected to a full service prior to issue. For details of qualified service engineers please contact Chiltern Invadex. Charging the TRT4 It is recommended that the battery pack is fully charged prior to first use. -
Page 8: Spare Parts
Page 6 Shower Trolleys Spare Parts Item Description Part number Model *Plastic top - Standard length (1930mm) TRTS012 T1, T2 & T4 *Plastic top - Paediatric (1600mm) TRTS015 *Plastic top - Bespoke TRTS013 T1, 2, 3 & 4 SPEC *Cot side - Standard length TRTS032 T1, T2 &... - Page 9 Page 7 Shower Trolleys Waste outlet pipe - standard length (1m) TRTS010 Waste outlet pipe - Bespoke TRTS014 Backnut (waste hose) CH0400 *5” Braked castor 202-00031 *5” Straight steering castor 202-00030 *Foot pedal assembly TRTS004 T1 & T3 Foot pedal rubber CH0181 T1 &...
-
Page 10: Troubleshooting
Check that the hose is secure- outlet ly fitted into the outlet For further advice and guidance please contact Chiltern Invadex on 01869 365500 or at technical@chilterninvadex.co.uk. To arrange a service call out please contact our service department on 01869 365500 Opt 3 or at servicedept@chilterninvadex.co.uk. -
Page 11: Warranty
Chiltern Invadex shall in no event be liable for any damages, costs or expenses arising from any claim made under this warranty (save for any legal liability of Chiltern Invadex for death or personal injury resulting from the company’s negligence in respect of its products). - Page 12 C o p yri g h t ©...
