- Page 1 Shower Chairs user guide Tilt in Space Shower Chair 93/42 EEC This guide contains essential information in relation to safe use and maintenance, it should be retained with the chair for future reference.
-
Page 2: Table Of Contents
2007 and have been designed to the highest standards with safety, strength and quality in mind. This guide should be throughly read and understood prior to use of your Chiltern Invadex Shower Chair. To obtain a copy of this guide in large print, please contact us on... -
Page 3: Things To Consider Before Using The Shower Chair
Things to consider before using the Shower Chair Safety Considerations • This product is designed for use as a shower commode chair, it is not intended to take the place of a wheelchair. As such, in order to maintain the safety of users and/or carers this product must not be used outdoors or to negotiate steps and stairs. - Page 4 To fit a commode pan (if fitted with cradle) SAFETY NOTE: To avoid the possibility of trapping, do not slide the commode pan on or off the rails whilst someone is sitting in the chair. 1. Remove the seat 2. Clip pan holder onto front and rear cross bars as shown 3.
- Page 5 Standard seat Fig 1 Fig 2 Fig 3 Removing the seat Release the clips by grasping the front of the seat whilst holding down the armrests, as Fig 1. Snapping on the seat Safety Note: Put one hand at front of seat and one at rear to avoid trapping fingers under armrest, as Fig 2.
-
Page 6: Operating Instruction

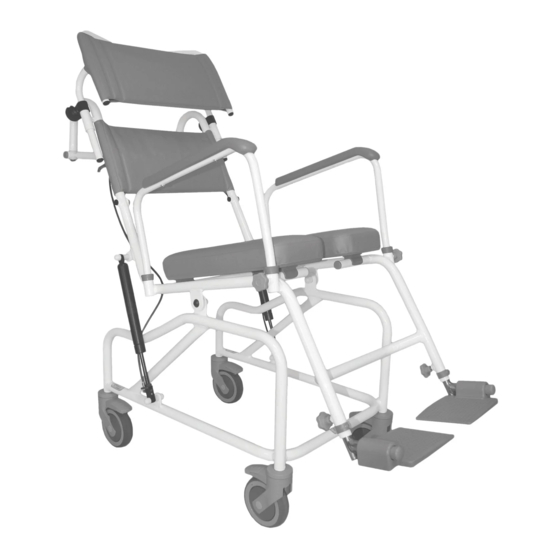

Operating Instruction The Aquamaster tilting shower chair is simple to operate via a single rear mounted control lever fitted on the cross bar push handle, this operates the two stainless steel gas springs and ensures that it is light and easy to use. It has a safe working load of (160kgs) 25 stone. - Page 7 Armrests Armrests have been designed to be adjustable to aid side transfer onto the chair. There are two armrest types, fixed and tip up. Fixed armrests • The armrests can be removed for easy transfer, as shown below. • To remove the armrest, loosen the hand wheel (1), lift the armrest upwards from the rear of the armrest pad (2), as shown below.
- Page 8 • Check that both sides of the foot rests are adjusted equally and carefully reinsert the pin clips to either side of the foot rest,ensuring that the clips pass through the framework and the foot rest is securely held in place,the threaded hand wheel is then tightened to prevent movement and provide a stable resting platform.
-
Page 9: Parts Guide
Parts Guide item description part no M8x15 Handwheel CH0208 Footrest (LH) Assembly CHCS500LA-1 CHCS500RA-1 Footrest (RH) Assembly Straight Armrest Stainless Steel Assembly pair CHCS3001 1/2 Wide Armrest Stainless Steel Assembly (not shown) pair CHCS3002 Wide Armrest Assembly Stainless Steel (not shown) pair CHCS3003 Tip Up Armrest Assembly Stainless Steel (not shown) - Page 10 Armrest options seat height seat height seat height STRAIGHT HALF WIDE WIDE TIP UP...
-
Page 11: Seat Options
Seat Options (18” wide chairs) Padded Aperture Seats Padded Horseshoe Seats Medium Medium 64mm 64mm 165mm 165mm 131mm 76mm 445mm 445mm Large Large 64mm 64mm 210mm 210mm 105mm 76mm 445mm 445mm Flat Padded Seat 445mm Special options* Seats available with a skirt for use with Clos-o-Mat toilet Special dimension and shaped seats can be made to suit users needs Pressure relief foam available on request *extended lead times apply, survey may be required... - Page 12 Seat Options (21” wide chairs) Padded Horseshoe Seats Padded Aperture Seats Large Large 64mm 210mm 105mm 530mm Extended seat option Flat Padded Seat 64mm 210mm 76mm 530mm 530mm Not available for side access chairs Special options Seats available with a skirt for use with Clos-o-Mat toilet Special dimension and shaped seats can be made to suit users needs Pressure relief foam available on request *extended lead times apply, survey may be required...
-
Page 13: Accessories
Accessories description part no Mesh Calf Strap CHCS50ST Adjustable Head Support CHCS3050 Adjustable Head Support (X shaped cushion) CHCS3052 Allen Key 8mm short reach COM1625 Braked Castor Assembly 202-00520 Soft Armrest Pads each CHCS006GREY Aqm Meduim Gutter Armrest (not suitable for tip up armrests) each CHCS3060 Aqm Long Gutter Armrest (not suitable for tip up armrests) -
Page 14: Waist Strap Fixing
Accessories Fitting the waist strap Important Safey Note: an ill fitted or faulty waist strap can be extreme- ly harmful. Before each use it is important to ensure that; • the strap has been assessed as suitable for the user; •... -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance It is recommended that your shower chair is serviced annually by Chiltern Invadex or an authorised, competent service agent, in addition: Regularly inspect all parts of the chair for defects. The chair should be removed from use where defects are identified and any defective part should be replaced promptly. -
Page 16: Technical Information
Technical Information Dimensional Information Feature 18” 21” Seat width Overall width Seat height Overall height 1380 1380 with fabric headrest at full extension Seat depth Overall depth 1065 1065 Overall tilted depth 1440 1440 with fabric headrest at full extension Height to top of push handle backrest 1080 1080... -
Page 17: Warranty
Warranty Your Chiltern Invadex Shower chair carries a 12 month full warranty from the date of purchase, subject to the following conditions. Should you experience any problems with our workmanship or materials within the first 12 month period please contact your point of purchase. -
Page 18: Declaration Of Conformity
Declaration of Conformity E7: Stretchers/Chairs/Hospital Trolleys (Patient Transport) Chiltern Invadex (UK) Limited hereby declare the products identified below are classified as Class 1 Medical Devices in accordance with the provisions set by the Medical Devices Directive 93/42/EEC as amended by 2007/47/EC. - Page 19 Please fill in the information below for future reference Dealers Name................Address....................................Post Code............Telephone ............. Your Serial Number is........Date of purchase...........
- Page 20 C o p y r i g h t ©...
