Challenger Smart Force ASFP2 Instructions

Pet immune pir motion detector

Download this manual

Enlarged version

ASFP2

PET IMMUNE PIR MOTION DETECTOR

General Introduction

The ASFP2 PIR Motion Detector which is compatible with Smart Force Gateway hub. It detects motion

by monitoring changes in infra-red radiation levels emitted by body heat. Featuring dual PIR sensor

designed with dual lens technology, this detector is immune to presence of pets in the home allowing

your pet to move freely without causing false alarms.

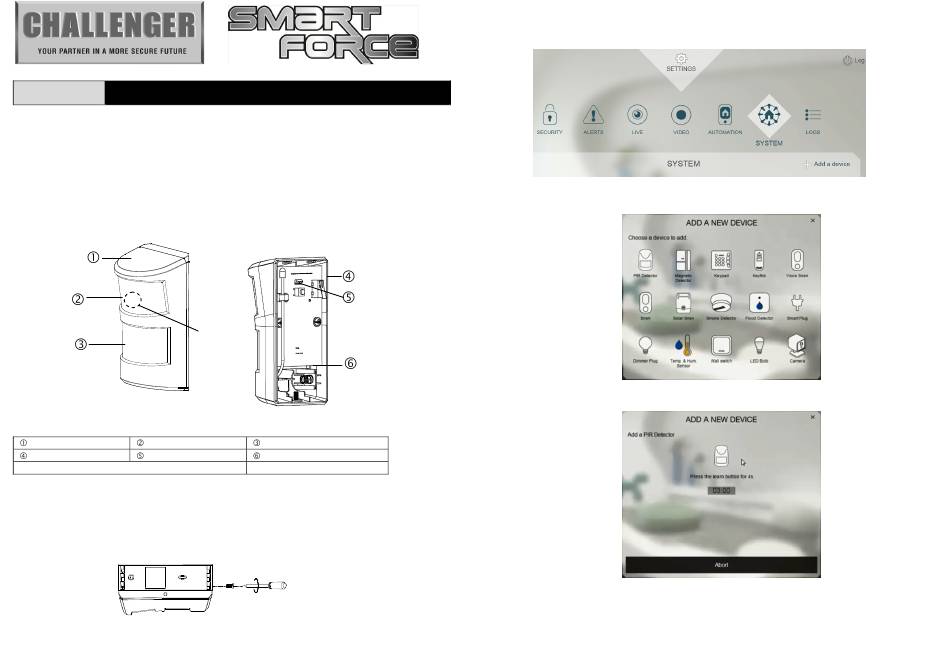

Product Overview

Front Cover

Upper Lens

Tamper switch

Link button

⑦

LED indicator (hidden behind lens)

Learning to Smart Force Gateway Hub

Undo and remove the fixing screw from the bottom of the detector. Carefully pull the bottom of the

detector away from the rear cover and then slide down to release the top clips.

⑦

(rear cover removed)

Lower Lens

Battery Compartment

2. Prepare a CR123A battery. Do not insert the battery into the unit yet.

3. Log into the Smart Force account from a web browser.

4. Select "System" then "Add a Device".

5. Select "PIR Detector".

6. The following screen will appear. This means the gateway is entering learning mode.

Challenger_ASFP2_Instructions_Rev01

Page 1 2. Prepare a CR123A battery. Do not insert the battery into the unit yet. 3. Log into the Smart Force account from a web browser. 4. Select “System” then “Add a Device”. ASFP2 PET IMMUNE PIR MOTION DETECTOR General Introduction The ASFP2 PIR Motion Detector which is compatible with Smart Force Gateway hub.
Page 2 7. At this for point, insert the battery with correct polarity into the unit. The LED indicator will stop flashing and turn off within 5 seconds, indicating the learning procedure is completed. The screen below will appear indicating the process is successful. 8.
Page 3 Mounting the ASFP2 Choosing a location The detector is suitable for mounting indoor in dry interior locations only. When considering a location for the detector the following points should be considered: - Do not locate the detector facing a window or where it is exposed to or facing direct sunlight. PIR detectors are not suitable for use in conservatories.
Page 4 Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger for any Low Battery: When the battery becomes low, the LED will flash red when motion is detected to indicate misinterpretation of these instructions.
