Grinder:
SUMMARY:
1. GENERAL DATA ............................................................................................................1-2
1.2. Electronic keyboard
2.1. Warning
3. OPERATING.....................................................................................................................4-6
3.3. User mode and explanation "Time Lag"
3.4. Dosing (Time Lag Inactive)
3.5. Dosing (Time Lag Active)
4. PROGRAMMING MODE ....................................................................................................7
4.1. How to access set-up mode for dosing
4.2.
Adjust dosing time
5. READING AND RESET SHOT COUNTER ....................................
5.1. Verify shot counter for single & double shots
5.2. Reset shot counter for single & double shots
6.
6.3. Setting counter for life cycle of grinding discs
6.4. Setting time lag- or single touch mode
7. SPECIAL FEATURES ...........................................................................................................11
7.1. Warning message for replacement of grinding discs
7.2. Resetting warning message
8.
8.1. Default settings from manufacturer
8.2. Indication life time grinding discs

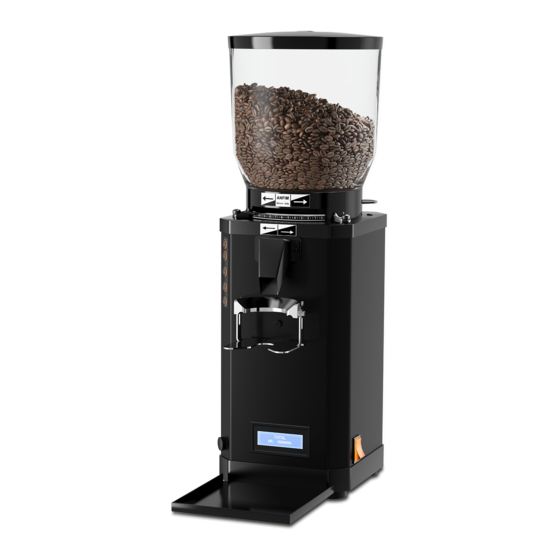

Operating Manual
S
P
pecial
erformance-II /
S
C
uper
aimano
(CODY / SCODY / SCODY-II / SP-II)
...........................................................................................12
Pagina 1
C
O
aimano
n-
O
D
D
n-
emand
isplay-II
..........................2-3
.....................................8-9
..............................................9-10
D
D
emand
isplay
Advertisement
Table of Contents
Related Manuals for ANFIM Caimano On-Demand Display
Summary of Contents for ANFIM Caimano On-Demand Display
-
Page 1: Table Of Contents
Operating Manual Grinder: pecial erformance-II / aimano emand isplay uper aimano emand isplay-II (CODY / SCODY / SCODY-II / SP-II) SUMMARY: 1. GENERAL DATA ……….…………………………………………………………………………….….……1-2 1.1. Electronic board 1.2. Electronic keyboard 2. WARNING - INSTALLATION INSTRUCTIONS AND USER RESTRICTIONS …………………..2-3 2.1. -
Page 2: Electronic Board
1. GENERAL CHARACTERISTICS 1.1. ELECTRONIC BOARD This device consists of a fully managed electronic board containing a flash microprocessor with: INPUT Nr. 1 Keyboard consisting of 4 buttons and 2 leds with 4-pin connector for the up-date of the microprocessor OUTPUT: Nr. -
Page 3: Warning - Installation Instructions And User Restrictions
2. WARNING - INSTALLATION INSTRUCTIONS AND USER RESTRICTIONS WARNINGCORRECT DEVICE’S OPERATING WAIT AT LEAST 3 SECONDS BETWEEN EACH POWER-OFF AND POWER-ON. Before installation and using the device, please read carefully the user manual. POWER- ON Before turning-on the device, please perform all the necessary connections according to local regulations in place. Some parts are connected to the power supply. -
Page 4: Operating
NET FILTER In order to meet the requirements concerning the electromagnetic compatibility, it may be necessary to outfit the device with a net filter outside the board. In this case, some basic rules have to be complied with for its installation: - the filter (if it is provided with a metallic body) has to be mounted on the device’s metallic frame with an electric connection having a very low impedance ground wards. - Page 5 3.3. EXPLAINATION “TIME LAG” This new feature added, is linked to the operation of the grinder that is equipped with an activation switch for the porta-filter. To enable, it must be activated in the menu programming. The delay time can be adjusted and is used to offer to the operator the option to complete the shot if the grinding cycle was briefly interrupted to settle ground coffee in the porta-filter.
- Page 6 3.5. Grinding 1 or 2 cups (Time Lag active) Select either T1 or T4 for 1 or 2 cups respectively. To start ad complete the grinding cycle, insert the porta-filter into the porta-filter holder (see picture 1) and push the same against the activation switch to start the cycle. If the porta- filter holder is properly adjusted it will hold the porta-filter in place (hands-free operation) and complete the shot automatically.
-
Page 7: Programming Mode
PROGRAMMING MODE 4.1. SETTING THE GRINDING TIME FOR 1 & 2 CUPS Grinder is in Stand-by mode. Press and hold T1 or T4 for approx. 5 sec until led of key is flashing. (see Figure 4) L1 TURNED ON AND LIGHT FLASHING Figure 4 Example: 1 Cup... - Page 8 READING AND RESET COUNTER PARTIAL Each time there will be a T1 or T4 coffee dose dispensing device will increase the overall counter, as shown below: - Single dose cup + Nr. 1 unit …. - Single dose cup + Nr. 1 unit …. - Double dose cup + Nr.
-
Page 9: Programming Mode - Menu For Service Techs
5.2. RESET PARTIAL COUNTERS The device has the ability to perform the resetting of the "COUNTER PARTIAL" of the doses 1/2, following the following procedure: In the environment of READING PARTIAL COUNTERS doses (See. Paragraph above Figure 10 and Figure 11), press the keys simultaneously (T2) and (T3) until it will show "RESET COUNTER"... -
Page 10: Setting Language
Please note that default settings for the life span of grinding discs are: - 100'000 cups for original Anfim grinding discs made of steel - 400'000 cups for original Anfim grinding discs Titanium coated After setting press the button again (T1) to move to the next menu Press (T4) to confirm and exit the Menu function. -
Page 11: Special Features
SPECIAL FEATURES This menu can be reached by setting the correct password. We recommend that you change your password immediately when you first turn, so that the user never come to this menu. (Record it and keep it in a safe place) The menus are reached after Password: Display counter for Torreffattore of doses produced, up to the maximum limit set in the next... -
Page 12: Default Parameters
8.2. NOTICE PERIOD FOR REPLACEMENT BLADES The counter for the millstones replacement warning is programmed to: ANFIM - 100.000 doses with original millstones in hardened steel ANFIM - 400.000 doses with original millstones in hardened steel Coated with TITANIUM.
