INSTALLATION MANUAL
ELECTRIC FURNACE
MODELS: EBE*/EUE*
Downflow/Upflow
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ELECTRIC FURNACE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 4
Furnace Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Alcove & Closet Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Upflow Closet Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Duct Connector Depth (7990 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Duct Connector Dimensions (7990 Series) . . . . . . . . . . . . . . . . . . . . . 4
Recommended Floor Cut-out (7990 Series) . . . . . . . . . . . . . . . . . . . . 4
Duct Connector Screw Attachment (7990 Series) . . . . . . . . . . . . . . . . 5
Duct Connector Tab Attachment (7990 Series) . . . . . . . . . . . . . . . . . . 5
Duct Connector for Electric Furnaces . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SECTION I: GENERAL
The following list includes important facts and information regarding the
EBE/EUE furnace and its packaging inclusions:
1.
Furnace is rated at 240 volts, 60 Hz, single phase.
2.
Filters are furnished with EBE model, and are the same for all EBE
models - 16 x 20 x 1 in top and 20 x 20 x 1 in the louvered door. No
filters are furnished with EUE models. External filter base and/or
filter rack is needed for field installation.
3.
Furnace size is the same for all models. See Figure 1.
4.
Four-wire thermostat operation for heating and cooling.
5.
Coil cavity built into furnace (coil shelf accessory required for EBE
model).
6.
All furnaces are equipped with an air conditioner blower and is A/C
or Heat Pump ready (coil shelf accessory required for EBE model).
7.
Holding strap furnished on top rear of furnace.
8.
The EBE furnace is designed for downflow application, and the
EUE furnace is designed for upflow application.
9.
This furnace must not be operated without the front panel
installed.
NOTICE
This furnace and its components listed on the A/C and Heat Pump
equipment sticker are listed in combination as a system by Under-
writer's Laboratories for the United States and Canada.
Johnson Controls Ducted Systems
For Installation In:
1. Manufactured (Mobile) Homes
2. Recreational Vehicles & Park Models
3. Modular Homes & Buildings
LIST OF SECTIONS
THERMOSTAT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
OPTIONAL AIR CONDITIONING ACCESSORIES . . . . . . . . . . . . . . 8
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
LIST OF FIGURES
Field Wiring Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Thermostat Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
EBE10*/EUE10* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
EBE12*/EUE12* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EBE15*/EUE15* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
EBE17*/EUE17* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
EBE20*/EUE20* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
EBE23*/EUE23* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LIST OF TABLES
EBE/EUE Series Blower Performance . . . . . . . . . . . . . . . . . . . . . . . . 6
Physical and Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
THERMOSTAT
WIRING
ENTRY
FIELD
WIRING
ENTRY

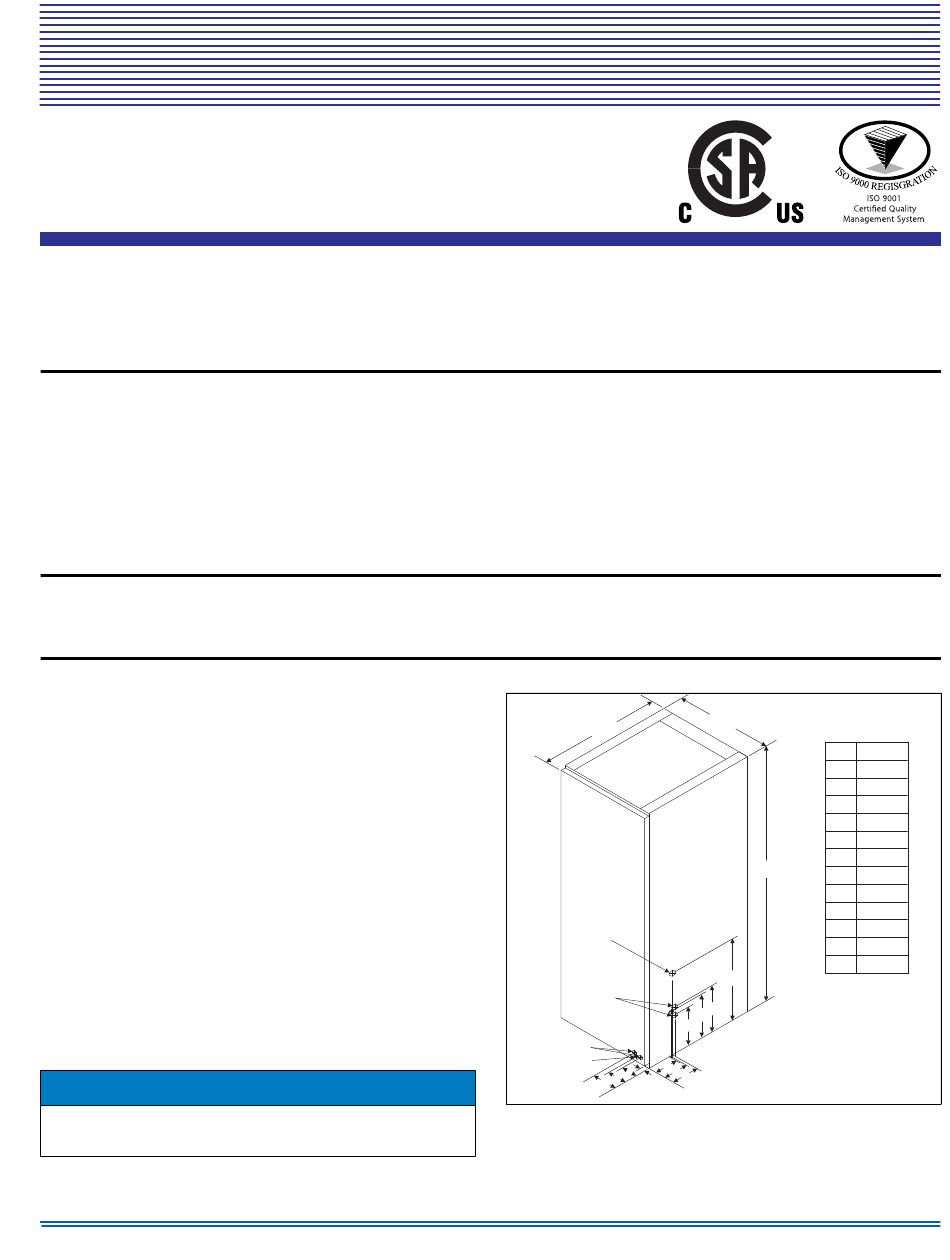

FIGURE 1: Furnace Dimensions
19-5/8"
24"
SUB-BASE, IF
USED, ADDS
7/8" MORE TO
51-5/8"
TOTAL HEIGHT
AND 3/8" TO
WIDTH.
N
M
L
K
J
H
E F
A
G
C B
D
®
A
1-7/8"
2-5/8"
B
C
3-1/2"
D
1"
5-1/16"
E
F
5-1/2"
5-13/16"
G
H
1"
J
1-3/4"
K
7-13/16"
L
8-5/8"
M
9-7/16"
N
16-1/2"
OPTIONAL BOTTOM FIELD
WIRING ENTRY
A0552-001
5396713-BIM-C-0319
Advertisement
Table of Contents
Related Manuals for Johnson Controls EBE23A
Summary of Contents for Johnson Controls EBE23A
-
Page 1: Table Of Contents
This furnace and its components listed on the A/C and Heat Pump FIGURE 1: Furnace Dimensions equipment sticker are listed in combination as a system by Under- writer's Laboratories for the United States and Canada. Johnson Controls Ducted Systems 5396713-BIM-C-0319... -
Page 2: Safety
The size of the unit should be based on an acceptable heat loss or • All local codes (state/county/township). gain calculation for the structure. ACCA, Manual J or other NOTICE approved methods may be used. All applicable codes take precedence over any recommendation made in these instructions. Johnson Controls Ducted Systems... -
Page 3: Unit Installation
EB louvered furnace door, only 1” rating plate. clearance is required. The number, size and placement of registers should be such that even distribution of heat is provided throughout the home. Johnson Controls Ducted Systems... -
Page 4: Electric Furnace Installation
A0875-001 These duct connectors are for connecting the furnace to an under the floor supply duct system. The furnace may be installed on combustible FIGURE 6: Recommended Floor Cut-out (7990 Series) flooring without a separate sub-base. Johnson Controls Ducted Systems... -
Page 5: Duct Connector Screw Attachment (7990 Series)
See Figure 8. casing side. LOCATOR BRACKET NAILS, FLAT HEAD SCREWS, OR STAPLES (Bend tabs under duct opening to secure to the supply duct.) FLOOR SUPPLY DUCT A0873-001 FIGURE 8: Duct Connector Tab Attachment (7990 Series) Johnson Controls Ducted Systems... -
Page 6: Wiring Requirements
(inches of w.c.) 1607 1563 1515 1477 1434 1406 1377 1345 1390 1346 1298 1286 1253 1224 1201 1160 CFM (STD. Air) 1241 1192 1151 1115 1097 1074 1032 1000 for all EBE/EUE Models 1099 1051 1002 1006 Johnson Controls Ducted Systems... -
Page 7: Field Wiring Shield
As Shipped, the jumper bar assembly is set up for bottom entry. For side entry, the top lug can be removed and re-positioned, as shown, to provide TRANSFORMER proper wire bending clearances. LIMIT SWITCHES GROUND LUGS A0345-001 FIGURE 11: Control Box Johnson Controls Ducted Systems... -
Page 8: Thermostat Installation
DOUBLE THROW SWITCH AIR CONDITIONER blower package 3500-7901/*. This accessory blower package would FURNACE A0876-001 deliver air conditioning up to 5-tons. FIGURE 12: Thermostat Wiring Johnson Controls Ducted Systems... -
Page 9: Wiring Diagrams
OR OTHER PROPER INSTRUMENT. CAUTION - HAZARD OF ELECTRICAL SHOCK - SERVICE CONNECTION COVER MUST BE INSTALLED. IMPORTANT - IF FILTERS ARE USED, CLEAN/REPLACE EACH SEASON 5395383-UWD-B-1017 OR MORE OFTEN AS NEEDED. FIGURE 13: EBE10*/EUE10* Wiring Diagram Johnson Controls Ducted Systems... -
Page 10: Ebe12*/Eue12* Wiring Diagram
OR OTHER PROPER INSTRUMENT. CAUTION - HAZARD OF ELECTRICAL SHOCK - SERVICE CONNECTION COVER MUST BE INSTALLED. IMPORTANT - IF FILTERS ARE USED, CLEAN/REPLACE EACH SEASON 5395384-UWD-B-1017 OR MORE OFTEN AS NEEDED. FIGURE 14: EBE12*/EUE12* Wiring Diagram Johnson Controls Ducted Systems... -
Page 11: Ebe15*/Eue15* Wiring Diagram
OR OTHER PROPER INSTRUMENT. CAUTION - HAZARD OF ELECTRICAL SHOCK - SERVICE CONNECTION COVER MUST BE INSTALLED. IMPORTANT - IF FILTERS ARE USED, CLEAN/REPLACE EACH SEASON OR MORE OFTEN AS NEEDED. 5395385-UWD-B-1017 FIGURE 15: EBE15*/EUE15* Wiring Diagram Johnson Controls Ducted Systems... -
Page 12: Ebe17*/Eue17* Wiring Diagram
OR OTHER PROPER INSTRUMENT. CAUTION - HAZARD OF ELECTRICAL SHOCK - SERVICE CONNECTION COVER MUST BE INSTALLED. IMPORTANT - IF FILTERS ARE USED, CLEAN/REPLACE EACH SEASON OR MORE OFTEN AS NEEDED. 5395387-UWD-A-0717 FIGURE 16: EBE17*/EUE17* Wiring Diagram Johnson Controls Ducted Systems... -
Page 13: Ebe20*/Eue20* Wiring Diagram
OR OTHER PROPER INSTRUMENT. CAUTION - HAZARD OF ELECTRICAL SHOCK - SERVICE CONNECTION COVER MUST BE INSTALLED. IMPORTANT - IF FILTERS ARE USED, CLEAN/REPLACE EACH SEASON 5395388-UWD-A-0717 OR MORE OFTEN AS NEEDED. FIGURE 17: EBE20*/EUE20* Wiring Diagram Johnson Controls Ducted Systems... -
Page 14: Ebe23*/Eue23* Wiring Diagram
OR MORE OFTEN AS NEEDED. 5395389-UWD-A-0717 FIGURE 18: EBE23*/EUE23* Wiring Diagram Subject to change without notice. Published in U.S.A. 5396713-BIM-C-0319 Copyright © 2019 by Johnson Controls. All rights reserved. Supersedes: 5396713-BIM-B-0618 York International Corp. 5005 York Drive Norman, OK 73069...
