Summary of Contents for ACV smart line E Series

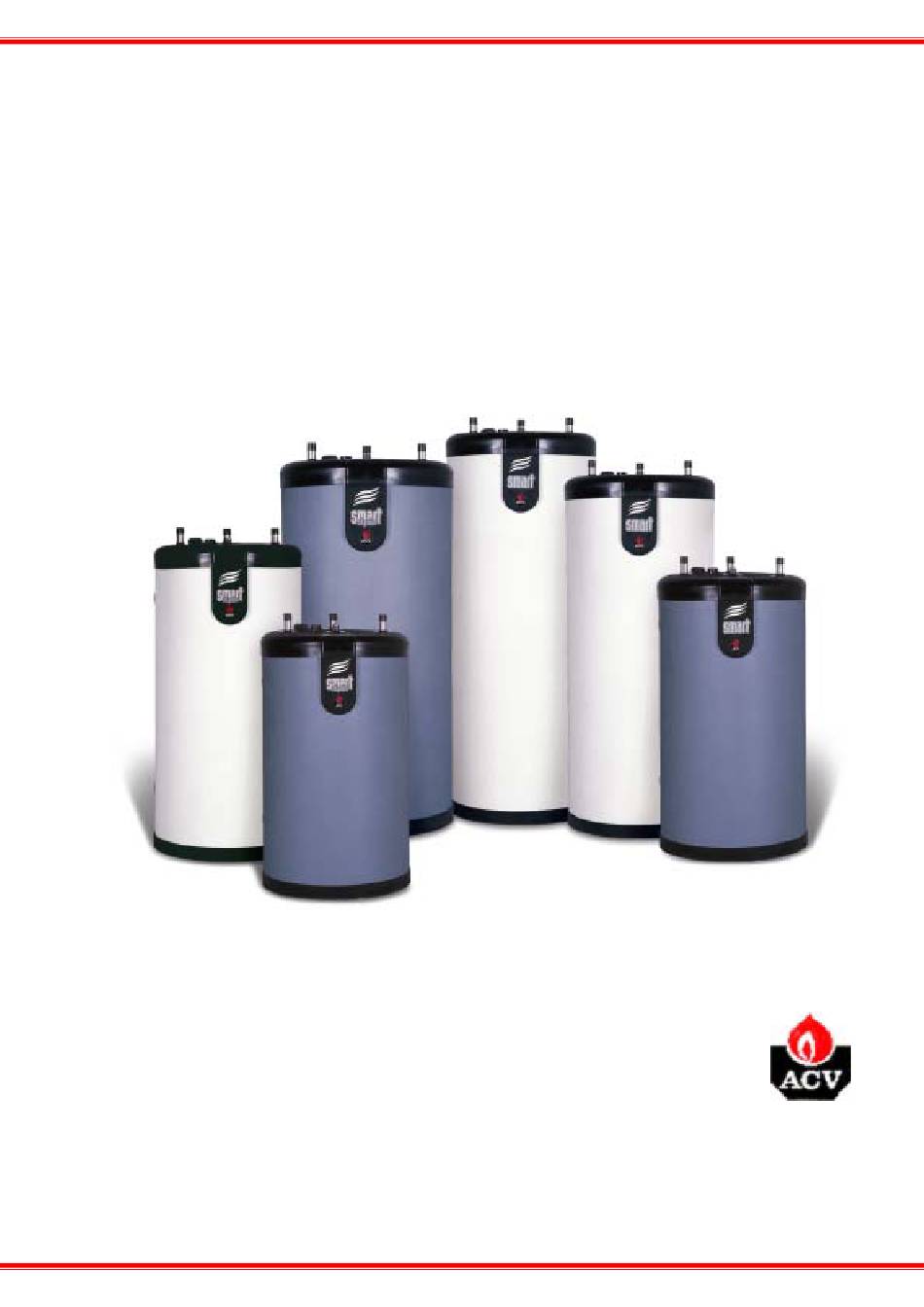

- Page 1 smart line E SLE 130 – 300...
-
Page 2: Table Of Contents
I N D E X INTRODUCTION Intended users of these instructions Warnings 1. Operation 2. Construction 3. Installation Domestic Wiring the thermostats Primary Immersion Heater 4. Commissioning 5. Technical Data 6. Performance 7. System Schematics Typical unvented Typical open vented 8. -
Page 3: Introduction
The product must be installed and serviced by qualified engineers, in compliance with current standards. ACV cannot accept liability for any damage resulting from incorrect installation or from the use of components or fittings not specified by ACV. Any failure to follow the instructions regarding tests and test procedures may result in personal injury. -
Page 4: Operation
N = Co-polymer polypropylene jacket Principle: ACV Tanks (tank in tank) comprise of two concentric water cylinders. Tank (A) is manufactured in solid stainless steel and contains the domestic water for use at the sanitary hot water outlets. The exterior tank (B) is manufactured from STW 22 carbon steel, this tank holds the primary heating fluid which is circulated from the boiler, as the primary fluid passes between the two tanks the heat is transferred to the domestic water. -
Page 5: Construction
T E C H N I C A L A N D I N S T A L L A T I O N CONSTRUCTION Internal tank: This tank is the heart of the assembly, as it has to withstand the corrosive nature of mains water and the temperature variations of stored water whilst working at high pressures. -
Page 6: Installation
T E C H N I C A L A N D I N S T A L L A T I O N INSTALLATION (130 to 300 Smart Paks) Domestic: Parts List. 1. Pressure control valve 3.5bar. 2. Expansion vessel 3.5bar. 3. -
Page 7: Wiring The Thermostats
T E C H N I C A L A N D I N S T A L L A T I O N Wiring the thermostat: To comply with ‘The Building Regulation 1991 G3.6’ the manual reset high limit thermostat must be wired to a self-closing motorised valve or some other suitable device to shut off the primary flow to the cylinder. -
Page 8: Immersion Heater
T E C H N I C A L A N D I N S T A L L A T I O N Immersion Heater The SmartLineE range of tanks have the facility for fitting a 3 or 6kW immersion heater for back- up emergency use when the primary heating fails not as a permanent form of summer time heating, this heater must be wired to its own 13 Amp fused spur and as described in the installation instructions for Thermtec immersion heaters. -
Page 9: Commissioning
4. Switch on and operate. IMPORTANT NOTE: ACV recommends the use of a corrosion inhibitor in the primary (heating) system. The warranty will be invalidated if upon inspection it is found that a tank has failed due to corrosion caused by the lack of an inhibitor. -
Page 10: Technical Data
Start-up time from 10 to 85°C(min) Dimension C is the approximate total height with mains kit fitted including expansion, please be aware that this kit is adaptable should there be a restriction on the height. Please contact ACV UK Ltd technical support for any assistance. -
Page 11: Performance
T E C H N I C A L A N D I N S T A L L A T I O N PERFORMANCE Performances Type Boiler Primary Heat up time Output flow rate 10°C–85°C Peak output hour output Continuous output (kW)* (ltrs/hr) -
Page 12: System Schematics
T E C H N I C A L A N D I N S T A L L A T I O N SYSTEM SCHEMATICS Typical un-vented application. Typical open vented application. -
Page 13: Discharge Pipe
T E C H N I C A L A N D I N S T A L L A T I O N DISCHARGE PIPE The discharge pipe (D2) from the tundish should terminate in a safe place where there is no risk to persons in the vicinity of the discharge, be of metal and: a. -
Page 14: Extract Of 'Building Reg. G3
T E C H N I C A L A N D I N S T A L L A T I O N Extract from ‘The Building Regulations 1991 G3’... -
Page 15: Parts List
Sparge pipe dia 25mm, length 0000mm Smart 300 000000 10. TECHNICAL ASSISTANCE & ORDER INFORMATION Telephone: 01383 820 100 Fax: 01383 820 180 e-mail: information@acv-uk.com web address: www.acv-uk.com ACV UK Ltd. St. Davids Business Park Dalgety Bay Fife KY11 9PF Scotland Manufactured at:...
