Description of the device

Note!
In general standard separators are used for flow velocities up to 1.5 m/s.
The magnetic flux filter Exdirt magneto is used in closed heating circuits. It filters the volume flow and removes magnetite particles from
the system water. In this way the circulation of these particles in the system is prevented so that they cannot cause damage to boilers,
pumps and valves. Optionally, a magnesium sacrificial anode can also be inserted in the magnetic flux filter. The anode binds the oxygen
and thus stabilises the corrosion process.

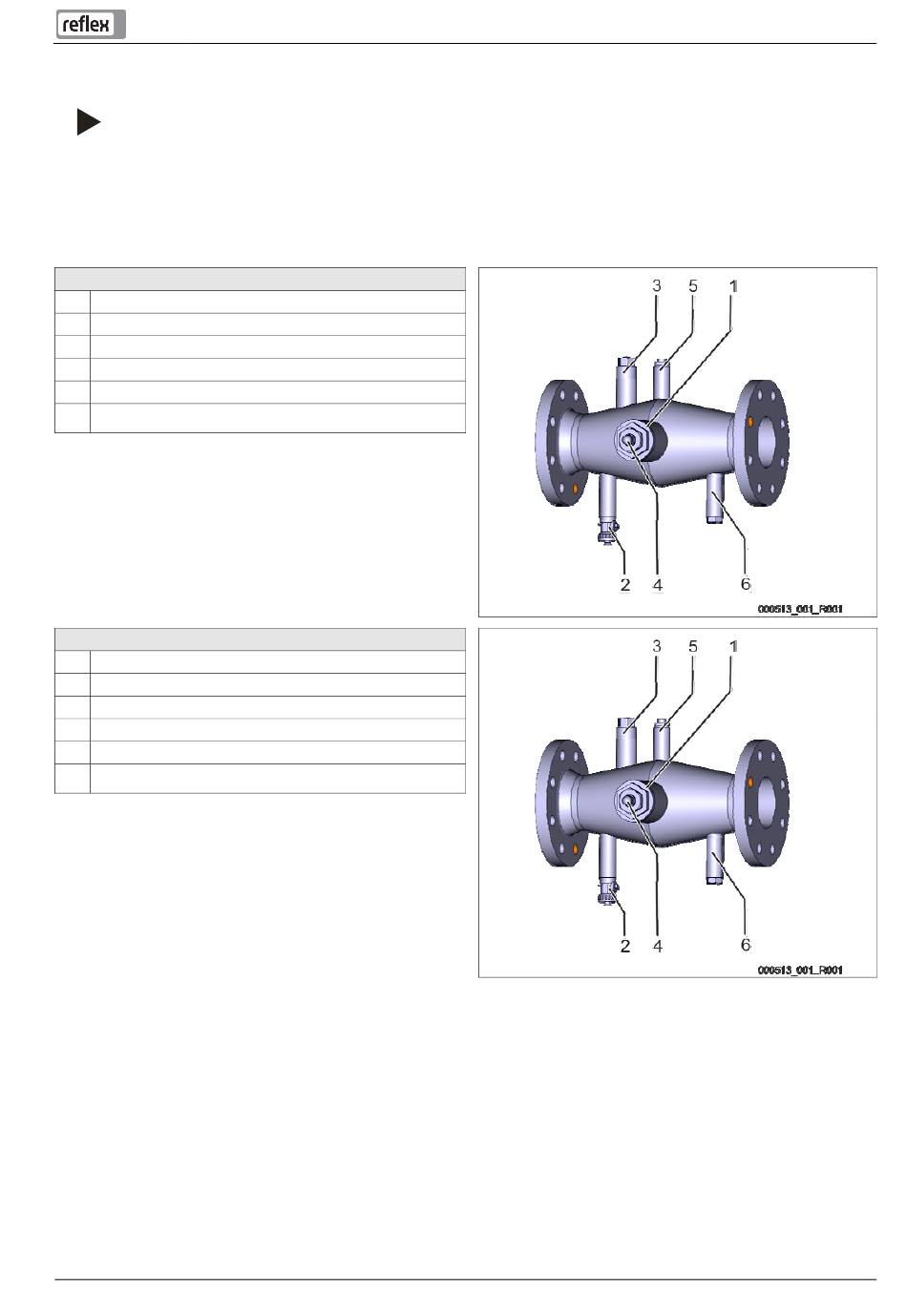

Exdirt Magento DN 50 - 100
1 Service flange with Exferro magnet insert
2 Drain valve (included in the accessory kit)
3 Magnesium sacrificial anode (optional for blanking plug)
4 Exferro magnet insert in immersion sleeve
5 Vent plug
6 Blanking plug
Exdirt Magento DN 125 - 200
1 Service flange with Exferro magnet insert
2 Drain valve (included in the accessory kit)
3 Magnesium sacrificial anode (optional for blanking plug)
4 Exferro magnet insert in immersion sleeve
5 Vent plug
6 Blanking plug
