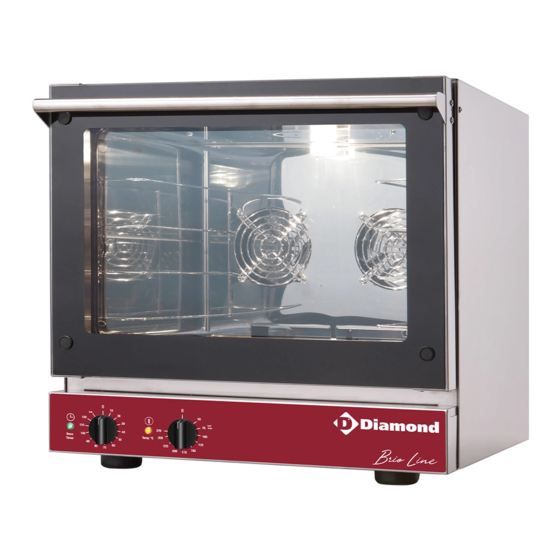

Diamond BRIO43/X N Installation - Use - Maintenance

Diamond BRIO43/X N Installation - Use - Maintenance

Electric fan ovens
Hide thumbs Also See for BRIO43/X N:

Advertisement

05/2015
Mod: CGE611-NP
Production code: 503.016.201

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRIO43/X N and is the answer not in the manual?

Questions and answers

Summary of Contents for Diamond BRIO43/X N

  • Page 1 05/2015 Mod: CGE611-NP Production code: 503.016.201...
  • Page 2 ELECTRIC FAN OVENS Installation – Use - Maintenance MOD. BRIO43/X N CGE23 N CPE434 N GASTRO23/X N CPE643F N BRIO 43S/X N CGE11 N CPE644 N BRIO64/X N CGE11 N 230/1 CPE 644 N 230/1 CGE611 NP CPE664 NP Doc.n°...
  • Page 3: Table Of Contents

    UK - INSTALLATION – USE - MAINTENANCE ..........................11 GENERAL PRESCRIPTIONS ..................................11 DISPOSAL OF PACKING AND OF THE APPLIANCE ................................12 SAFETY AND CONTROL DEVICES ....................................12 INSTRUCTIONS FOR INSTALLATION ................................12 REMINDERS FOR THE INSTALLER ....................................12 REFERENCE STANDARDS AND LAWS .................................... 13 UNPACKING ..........................................
  • Page 4: Uk - Installation – Use - Maintenance

    UK - INSTALLATION – USE - MAINTENANCE Identify the specific appliance model. The model number is detailed on the packing and on the GENERAL PRESCRIPTIONS appliance dataplate. DO NOT OBSTRUCT ANY AIR VENTS OR READ THIS MANUAL CAREFULLY. IT DRAINS PRESENT ON THE APPLIANCE. PROVIDES IMPORTANT INFORMATION FOR SAFE INSTALLATION, USE AND This device emits a sound pressure level less than...
  • Page 5: Disposal Of Packing And Of The Appliance

    In the case of delivery by our opinion the - the straps (in Polypropylene - PP). equipment can also be devoid of packaging, other types of packaging can be provided according to the APPLIANCE destination and / or customer requirements. The appliance is manufactured 90% from recyclable MEANS NECESSARY FOR HANDLING metals (stainless steel, aluminium sheet, copper..
  • Page 6: Reference Standards And Laws

    Do not obstruct any air vents or drains present on Install a mechanical filter and a shut-off valve the appliance. upstream of the appliance in an easily accessible point. Do not tamper with appliance components. It is necessary to have a supply of drinking water with hardness<10 °F to avoid circuit blockage.
  • Page 7: Commissioning

    READ THIS MANUAL CAREFULLY. IT PROTECTIVE EARTH EARTH BONDING PROVIDES IMPORTANT INFORMATION CONNECTIONS FOR SAFE INSTALLATION, USE AND MAINTENANCE OF THE APPLIANCE. Connect the appliance to an efficient ground circuit. THE MANUFACTURER WILL NOT BE Connect the earth conductor to the terminal with LIABLE FOR ANY DAMAGE OR INJURY the symbol next to the main terminal board.
  • Page 8: Prolonged Disuse

    INSTRUCTIONS FOR 10. PROLONGED DISUSE MAINTENANCE Before any prolonged disuse of the appliance, 12. REMINDERS FOR THE MAINTENANCE proceed as follows: TECHNICIAN - Clean the appliance thoroughly. - Rub stainless steel surfaces with a cloth soaked in THE MANUFACTURER WILL NOT BE vaseline oil to create a protective film.
  • Page 9: Main Components

    DISCONNECT THE APPLIANCE ELECTRIC SUPPLY, BEFORE CARRYING OUT ANY OPERATION. After replacing an electrical system component, check it is correctly wired. VENTILATED OVEN Replacing the heating element - Open the door. - Remove the inner panel. - Remove and replace the component. - Refit all parts.
  • Page 10 PANNELLO DI CONTROLLO - CONTROL PANELS - PANNEAU DE CONTROLE – SCHALTBRETT - PANEL DE CONTROL TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO TERMOSTATO THERMOSTAAT THERMOSTAT- INDICADOR SPIA THERMOSTAT THERMOSTAT TESTIGO LAMPJE KONTROLL LUMINOSO DO TERMOSTATO SIGNAL LIGHT LAMPE TERMOSTATO THERMOSTAAT LÄMPCHEN TERMOSTATO LIGAR/DESLIGA TIMER ON/OFF...
  • Page 11 50-60 3 G 1,5 220-240 50-60 4 G 4 CGE11 N 380-415 3 + N 50-60 5 G 4 BRIO43/X N 220-240 1 + N 50-60 3 G 1,5 BRIO43S/X N 220-240 1 + N 50-60 3 G 1,5 BRIO64/X N...
