Team C Jekyll TR02EVO Manual page 20

32

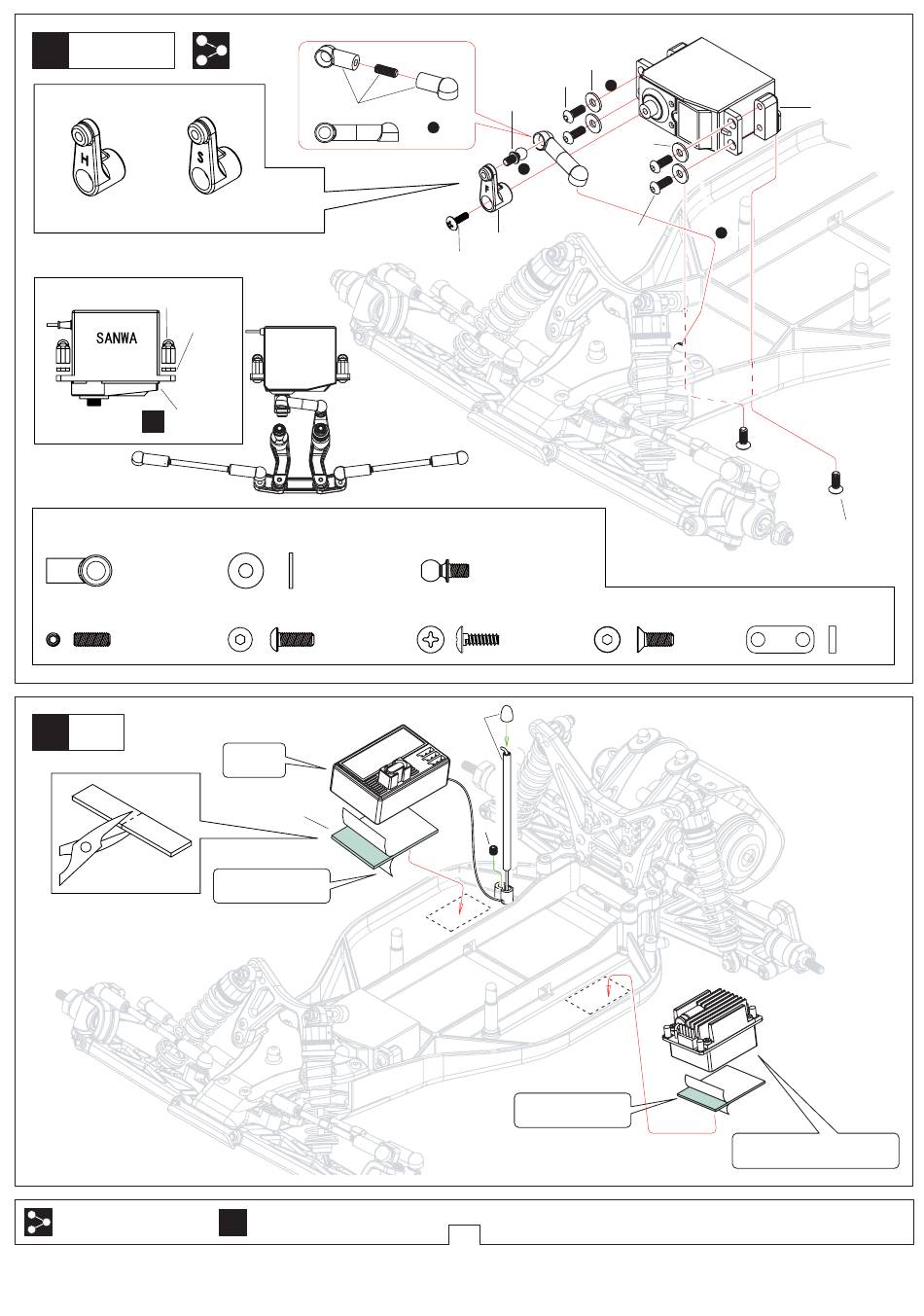

Steering Servo
1
3
Select for your servo
Steering Servo-H(24T) Steering Servo-S(23T)
Sanwa servo
T02111
T02116
X Steering Servo
T02113 4.8 Ball End(Short)
...............2
T02113 M3x10 Screw
...............1
33
Radio
Assemble in the specified order
1
2
3
2
T02113
T02081 3x7x0.8 Washer
..................4
T02082 M3x8 Screw
............4
Receiver
T02087
Double-sided Tape
X
Must be purchased separately
T02081
T02082
T02136
1
3
T02110(25T)
T02082(2.6x8)
T02136 Ball stud - silvery
.....................1
T02082 M2.6x8 Screw
............1
T02087
M3x3
Double-sided Tape
16
2
T02081
T02082
4
T02083 M3x8 Screw T02116 1.5 Servo spacer
......2
Electronic speed controller
T02111
T02083
......2
