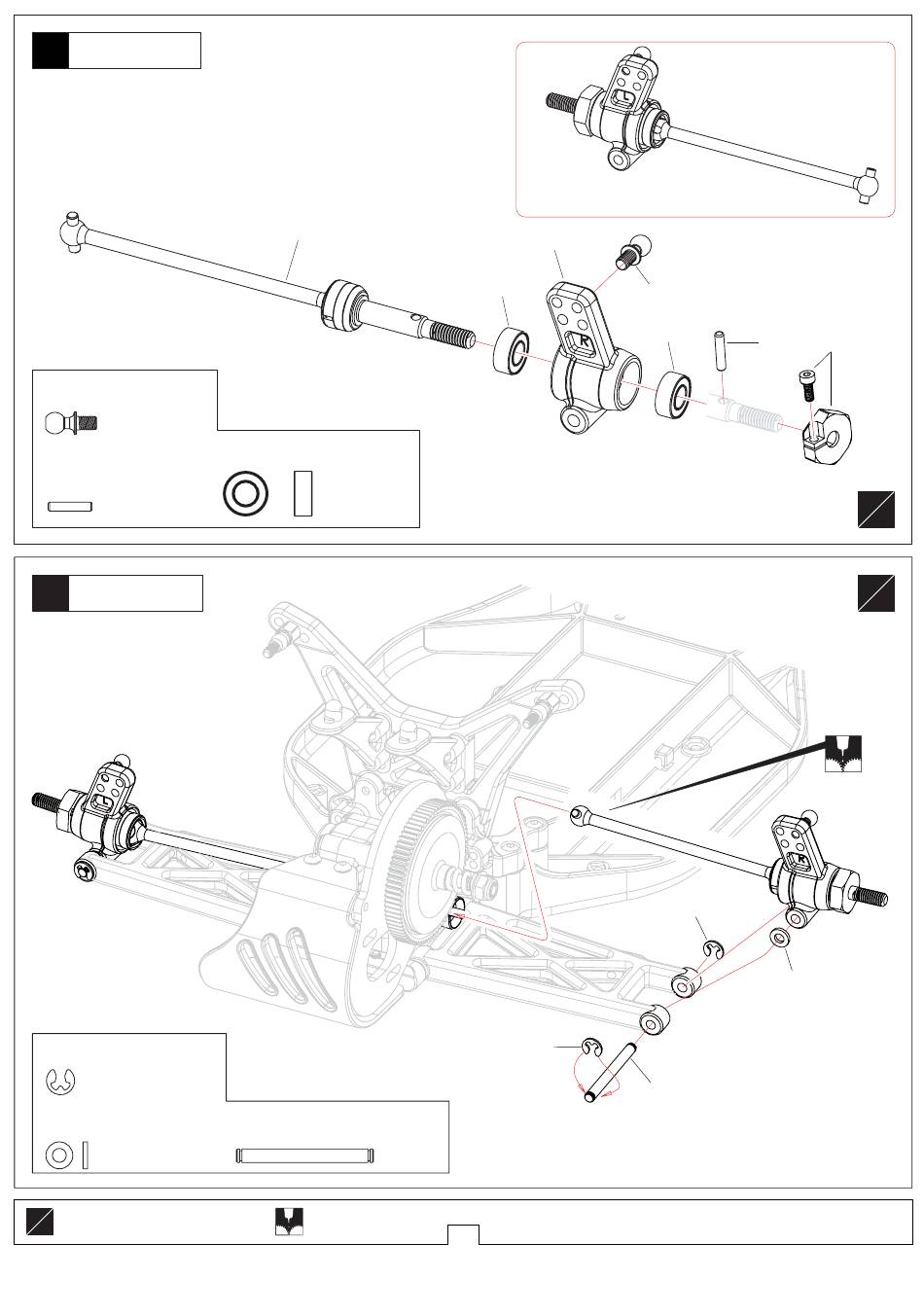

Rear Suspension
<Right>
T02060 Ball stud - short
.....................2
T02115 2x9.8 Shaft
.....................2
22
Rear Suspension
T02057 2.3 E-ring
..............................4
T02124 3.1x6x1 Plastic Washer
...........................2
Assemble left and right sides the same way
L
R
T02135
T02079 5x10x4
Contain oil ball
bearing
...............4
T02057 3x30.5 Hinge pin Rear outer
............2
Apply grease
T02124
T02079
T02057
11
T02060
T02079
T02115
T02057
T02124
T02057
<Left>
TU0254
L
R
L
R
