Disassembly and Reassembly
No.
7
8
9
9-10

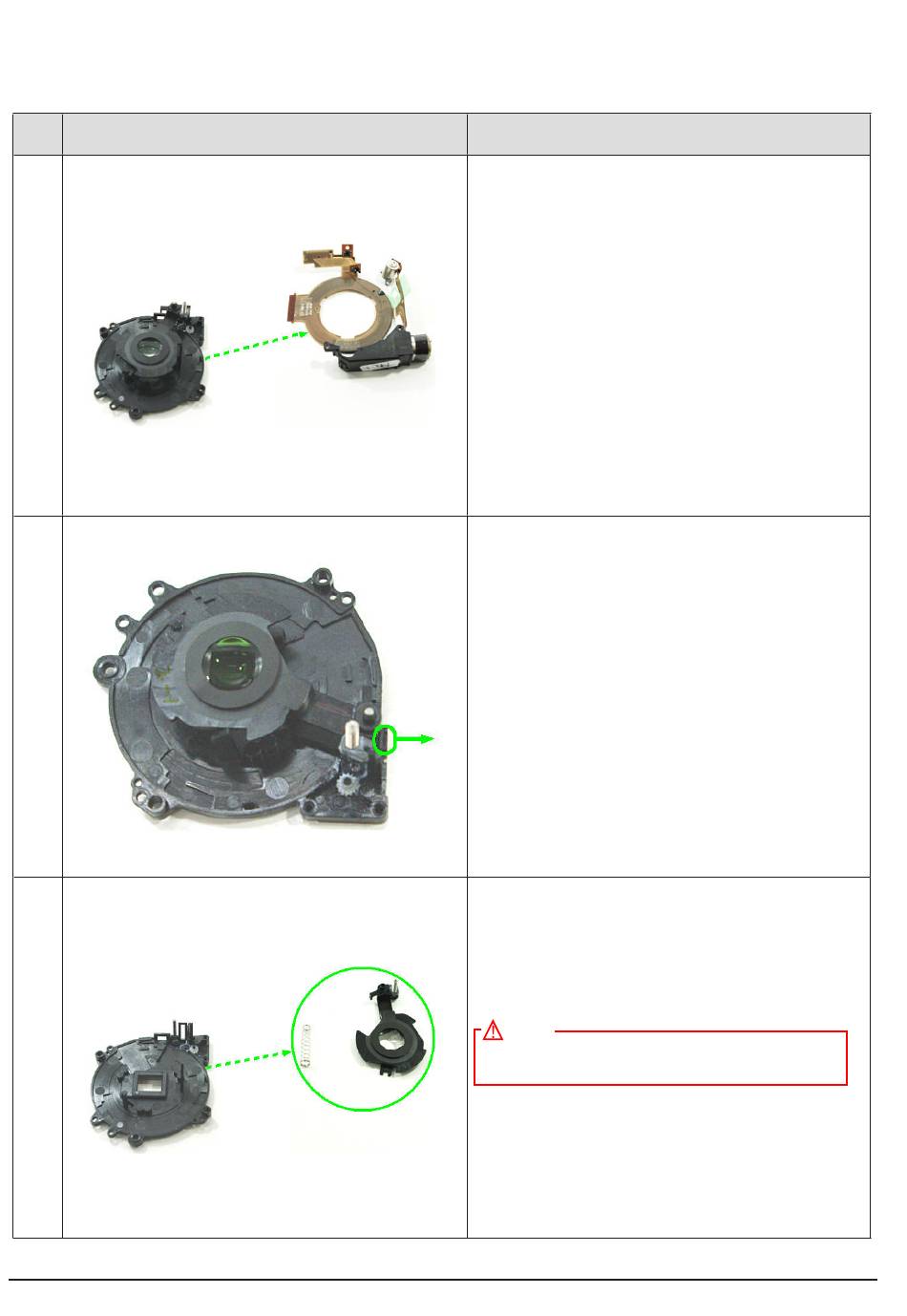

Disassembly image
Disassembly description
Remove Main FPCB Assy and Zoom Motor Assy.
Separate the 3rd sub barrel assembly while slightly moving to
the arrow direction as shown in the figure.
Remove 3rd Sub Barrel Assy.
caution
The spring can be separated.
