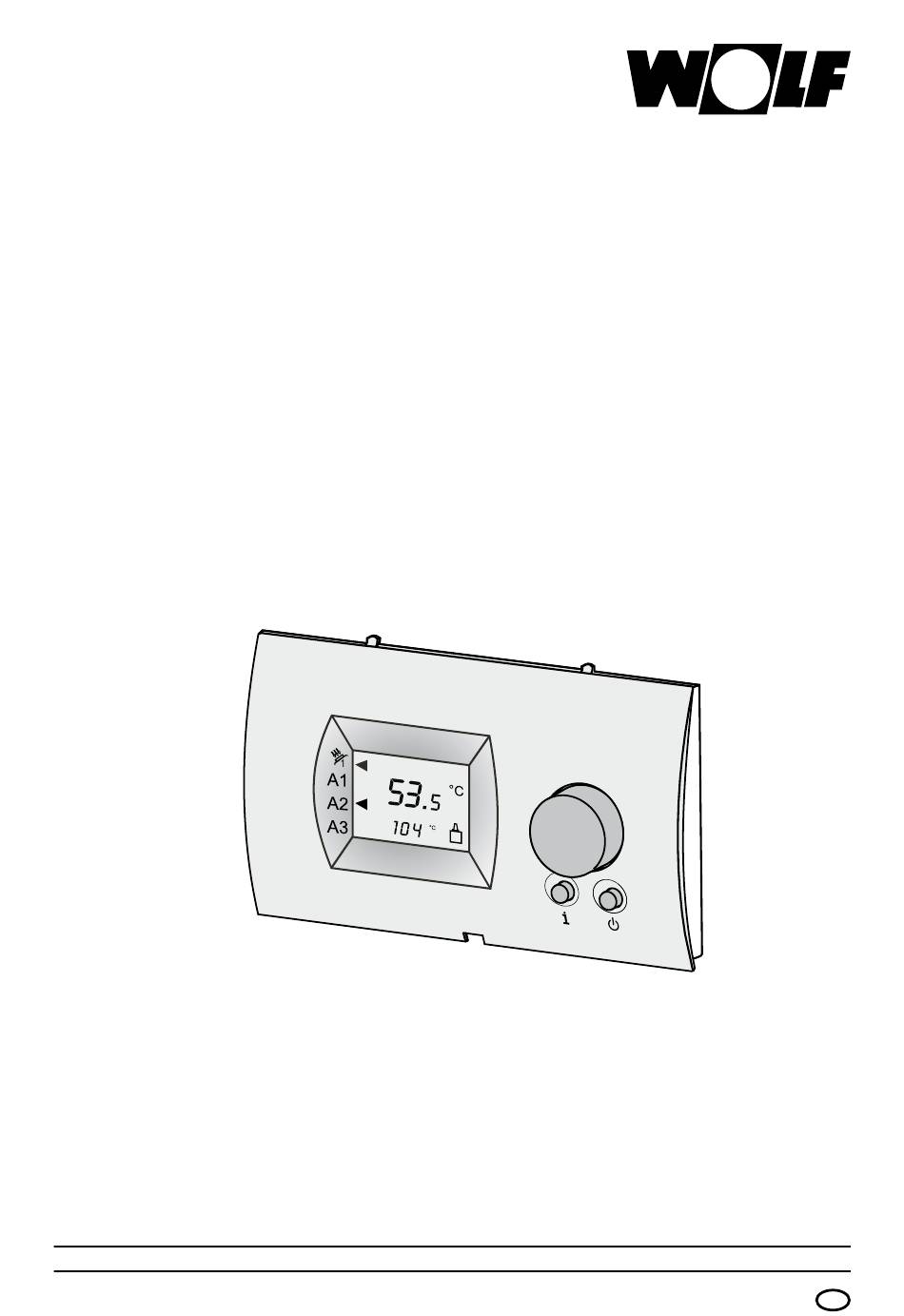

- Page 1 Installation and operating instructions Programming module BM-Solar Wolf GmbH · Postfach 1380 · D-84048 Mainburg · Tel. +49-8751/74-0 · Fax +49-8751/741600 · Internet: www.wolf-heiztechnik.de 3061916_0611 Subject to modifications 6.6701.615...
-
Page 2: Table Of Contents
Index Safety instructions / Standards..........3 Standards / Regulations ............4 Installation • Application range ............5 • Module installation ............5 • As a remote control ............5 • Wall mounting base ............5 • Remote control power supply ........6 Overview • Standard display ............7 • Status display ..............7 Display level • Information display (Info key) .........8 • Display values SM1 ............9 • Display values SM2 ............9 • Description of display values ......... 10-13 Parameter level •... -
Page 3: Safety Instructions / Standards
Safety instructions / Standards Safety instructions The following symbols are used in conjunction with these important instructions concerning personal safety as well as operational reliability. "Safety instructions" are instructions with which you must comply exactly, to prevent injury and material losses. Danger through 'live' electrical components. NB Switch OFF the ON / OFF switch before removing the casing. Never touch electrical components or contacts when the ON / OFF switch is in the ON position. This brings a risk of electrocution that may cause injury or death. The main supply terminals are 'live' even when the ON / OFF switch is in the OFF position. This indicates technical instructions that you must observe to prevent material losses and boiler malfunctions. -
Page 4: Standards / Regulations
- Never remove, bypass or disable safety and monitoring equipment. - Only operate the system in perfect technical condition. Immediately remove / remedy any faults and damage that may impact on safety. - Always ensure that cold water is mixed in with hot water, when the DHW temperature is set above 60 °C (risk of scalding). Maintenance / Repair - Regularly check the perfect function of all electrical equipment. - Only qualified personnel may remove faults or repair damage. - Only replace faulty components or equipment with original Wolf spare parts. Any damage or loss resulting from technical modifications to Wolf control units is excluded from our liability. Disposal and recycling Observe the following information regarding the disposal of faulty system components or the system at the end of its service life: Dispose of all components in accordance with applicable regulations, i.e. separate material groups correctly. The aim should be the maximum possible amount of basic materials recycled and the lowest possible environmental impact. -
Page 5: Installation
Installation Module installation The BM-Solar programming module can be integrated into the SM solar module or can be used as remote control in conjunction with a wall mounting base. When integrating the BM-Solar in the solar module, all settings are made at the solar module. The electrical connection must only be carried out by a qualified electrician. - Switch OFF the power at the solar module - Remove the facia from the solar module - Click the BM-Solar programming module into the solar module as shown in the diagram - Switch ON the power at the solar module Remote control Fitted to a wall mounting base (part no. 2744275), the BM-Solar programming unit can be used as a remote control (e.g. in the living room). -
Page 6: Remote Control Power Supply
Installation Electrical connection The electrical connection must only be carried out by a qualified Remote control electrician. Never route sensor leads alongside mains power cables. - Switch OFF the power at the solar module - Wire the wall mounting base with a two-core cable (minimum cross-section 0.5 mm²) in accordance with the diagram shown Green plug of the solar module eBus Terminal strip Wall mounting base - Click the BM-Solar programming module into the wall mounting base as shown in the diagram - Switch ON the power at the solar module 3061916_0611... -
Page 7: Overview
Overview Display Rotary selector with Status display pushbutton function Solar circuit pump Info ON / OFF pushbutton pushbutton Standard display Solar cylinder temperature, cylinder 1 BUS symbol Collector temperature, collector array 1 Status display, output A4 Status display, solar circuit pump 1 and outputs A1-A3 ▪ In the top line of the standard display, the current solar cylinder temperature is shown; the bottom line shows the current collector temperature. ▪ In systems with two cylinders, the solar cylinder temperature of cylinder 1 is shown. -
Page 8: Display Level
Display level Information display In addition to the values shown on the standard display, further values for the solar thermal system can be scanned at the BM-Solar. Pressing the Info key leads to the display level. The display value A01 (solar cylinder temperature, cylinder 1) is shown. Rotary selector with pushbutton function Press Info key Example: display value A 01 Pressing the Info key again or turning the rotary selector clockwise enables all additional display values to be scanned in sequence. If the final display value is reached and the selector further is turned further, the system exits the display level and returns to the standard display. The standard display returns automatically... -
Page 9: Display Values Sm1
Display level Subject to the solar module used, different display values are available. Display values used with Display Designation SM1 solar module Actual DHW temperature, solar cylinder (°C) A : 0 1 Max. DHW temperature, solar cylinder (°C) A : 0 2 Collector temperature (°C) A : 0 3 Maximum collector temperature (°C) A : 0 4 Return temperature (°C) A : 0 5 Solar circuit flow rate (l/min) -
Page 10: Description Of Display Values
Display level Description of the display values A : 0 1 SM1: The current temperature of the solar cylinder at the level of SM1: Actual the solar indirect coil is displayed. DHW temperature Solar cylinder SM2: The current temperature of solar cylinder 1 at the level of SM2: DHW the solar indirect coil is displayed. Actual temperature Solar cylinder 1 A : 0 2 SM1: Maximum SM1: The maximum DHW temperature over the course of 24 hours DHW temperature is displayed. Solar cylinder SM2: The maximum DHW temperature of cylinder 1 over the SM2: Maximum course of 24 hours is displayed. - Page 11 Display level A : 0 7 SM1: Not installed SM1: Not installed SM2: Input E3 SM2: The current value captured by the sensor connected to input E3 is displayed. Subject to the configuration set at the SM2, this may be the buffer temperature, the actual DHW temperature of solar cylinder 2, the collector temperature of collector array 2 or the bypass temperature.
- Page 12 SM2: This indicates whether solar heating of cylinder 1 has been completed successfully within the last 24 hours. This applies if, within 24 hours prior to 14:00 h, the set DHW temperature selected at the heating appliance was exceeded by solar heating. In that case, the set DHW temperature at the heating appliance will be set to the minimum cylinder temperature (cylinder reheating blocked). This function is only available if the solar module is operated as part of a Wolf control system (for a function description, see the SM solar module manual). A : 1 8 SM1: Not installed SM1: Not installed SM2: Solar heating status SM2: This indicates whether solar heating of cylinder 2 has been Cylinder 2 completed successfully within the last 24 hours. This applies if, within 24 hours prior to 14:00 h, the set DHW temperature selected at the heating appliance was exceeded by solar heating.
- Page 13 This value corresponds to the display value x 10. This value can be reset to 0 by pressing and holding down the rotary selector for at least 10 seconds. A : 21 SM1: Not installed SM1: Not installed SM2: Solar heating status SM2: This indicates whether solar heating of cylinder 3 has been Cylinder 3 completed successfully within the last 24 hours. This applies if, within 24 hours prior to 14:00 h, the set DHW temperature selected at the heating appliance was exceeded by solar heating. In this case, the set DHW temperature at the heating appliance will be set to the minimum cylinder temperature (cylinder reheating blocked). This function is only available if the solar module is operated as part of a Wolf control system (for a function description, see the SM solar module manual). 3061916_0611...
-
Page 14: Parameter Level
Parameter level Access to the At the parameter level, all values that can be modified can be parameter level checked and changed if required. The parameter level is activated by pressing the rotary selector once. Parameter P01 appears (start differential solar cylinder 1). Display (factory setting): Rotary selector with pushbutton function Example: parameter P 01 Turning the rotary selector clockwise scans all further available parameters in sequence. Changing parameters: ▪ Pressing the rotary selector again enables the currently displayed parameter. The display of the corresponding value flashes. ▪ Turning the rotary selector enables you to modify the value. ▪ Pressing the rotary selector again confirms the value. The value display then changes from flashing to static. -
Page 15: Sm1 Parameters
Parameter level Subject to the solar module used, different parameters are available. Parameters used with SM1 solar module: Parameter Parameter Setting range Factory Explanation min. max. BM-Solar setting Start differential solar cylinder 30 K SOL 01 P 01 Stop differential solar cylinder 20 K SOL 02 p 02... -
Page 16: Sm2 Parameters
Parameter level Parameters used with SM2 solar module: Parameter Parameter Setting range Factory Explanation min. max. BM-Solar setting Start differential solar cylinder 1 30 K SOL 01 P 01 Stop differential solar cylinder 1 20 K SOL 02 p 02 Collector cooling function 0 (OFF) 1 (ON) SOL 03 P 03 Critical collector temperature 90 °C 150 °C 110 °C... - Page 17 Parameter level Parameter Parameter Setting range Factory Explanation min. max. BM-Solar setting Start differential solar cylinder 3 30 K SOL 29 * p 29 * Stop differential solar cylinder 3 20 K SOL 30 * P 30 * Maximum temperature, solar SOL 31 * P 31 * 15 °C 90 °C 60 °C cylinder 3 Assignment, solar cylinder 3...
-
Page 18: System On / Off
System ON / OFF System ON / OFF The solar module can be switched ON and OFF with the ON / OFF pushbutton. To prevent the system being switched OFF accidentally, the pushbutton needs to be held down for at least 3 seconds to effect a shutdown. A brief activation of the pushbutton is sufficient to start the system again. -
Page 19: Troubleshooting
Faulty sensor or lead Check sensor and lead; SM2: Terminal E3, sensor on replace if required input E3 faulty FC74 DCF signal or reception No BUS connection; no Check eBUS interference DCF reception connection/DCF reception FC79 SM1: Terminal SFK, solar sensor Faulty sensor or lead Check sensor and lead; replace if required Collector faulty SM2: Terminal SFK1, solar sensor Collector array 1 faulty FC81 EEPROM fault Parameter values Reset to standard outside valid range values by briefly interrupting the power supply, and check values Note: Fault codes 71, 72, 79, 73, 64, 62 and 74 are reset automatically as soon as their cause has been removed. Fault codes 63 and 81 must be reset (acknowledged) explicitly by restarting the SM. Alternatively, FC63 can be reset via the BM-Solar (by holding down the rotary selector for at least 5 seconds). 3061916_0611... - Page 20 Wolf GmbH · Postfach 1380 · D-84048 Mainburg · Tel. +49-8751/74-0 · Fax +49-8751/741600 · Internet: www.wolf-heiztechnik.de...
