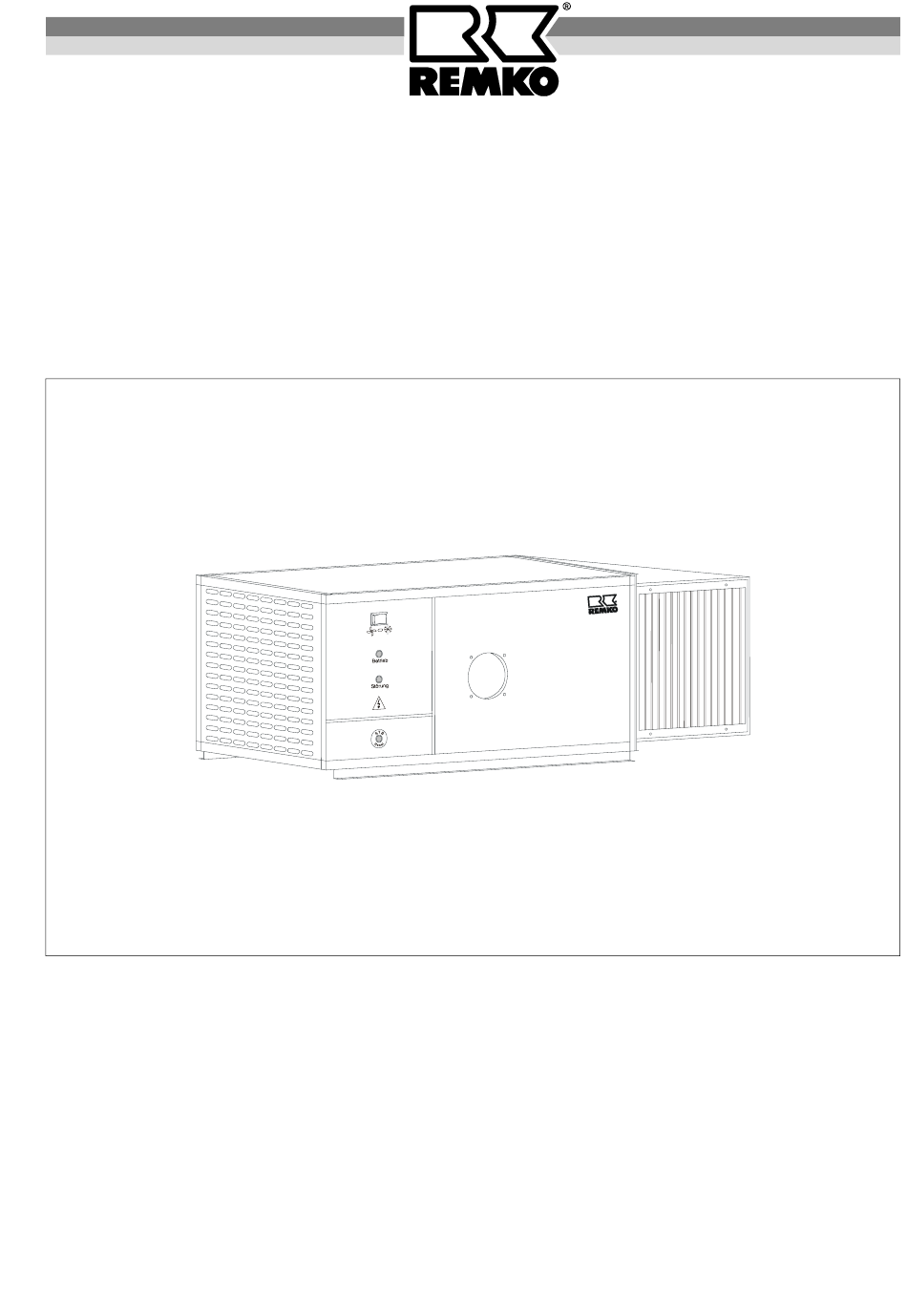

- Page 1 REMKO WKL 20 INOX Oil compact heating-system Operation Technology Spare Parts REMKO – powerful like a bear. Edition GB – P11...
-
Page 3: Table Of Contents
Our guarantee becomes null and void if the unit is used, set up or maintained improperly, or if modifications are made to the supplied unit without our prior consent. Subject to alterations! Stationary Warm Air Heating System REMKO WKL 20 INOX Contents Contents Page... -
Page 4: Safety Instructions
The units are to be attached with sturdy mounts REMKO automatic heaters supply heat or regulate the which are fixed on the unit. temperature of: The units may not be set up or operated in surround- Workshops ings susceptible to fire or explosions. -
Page 5: Prior To Setup
If it is necessary to replace the STB, only the original 3. The exhaust produced by the units is expelled by REMKO part may be used. means of the air suctioning system(s). Do not bend the capillary tubes near to solder points. - Page 6 Air Supply for Combustion An adequate supply of air for combustion must be en- The units must be set up and operated in such a sured by meeting the relevant building requirements. way that people are not exposed to exhaust or radi- ant heat and fires cannot occur.
-
Page 7: Setup And Assembly
Setup and Assembly Wall Assembly Unit Setup The wall where the unit is to be assembled may not be When setting up the units, the regional provisions and made of flammable materials. Its load-bearing capacity regulations must be observed. must be tested and, if necessary, reinforced. The units may only be operated with accessories that Consoles must be anchored firmly to the wall and the have either been approved by the manufacturer or sup-... - Page 8 Examples of Use Burner Installation The forced-air burner supplied by the manufacturer is Double-sided exhaust system / stainless-steel / attached to the front of the unit with a clamp flange. outside assembly. You must observe the following: Only forced-air burners with a automatic burner relay AS-ME-D that have a 5 sec.
-
Page 9: Initial Operation
Under certain 4. Pre-select desired room temperature circumstances, it is possible to measure the exhaust on the room thermostat. opening. Room thermostat as an REMKO ac- cessory. Make sure to maintain a safe distance to flamma- ble materials! Ventilation... -
Page 10: Maintenance And Service
7. Clean the combustion residue from the furnace through the burner opening 4. A special cleaning set for the REMKO industrial vac- uum cleaner can be purchased as an accessory. 8. Check the seals of the inspection cover 5 and the... -
Page 11: Troubleshooting
Troubleshooting The unit does not start Resetting the automatic burner relay Check the power supply. If the red control light (burner malfunction) is lit up, re- lease the relay by pressing the malfunction button on Check the operating and/or main switch. the automatic burner relay. -
Page 12: Technical Data
Technical Data WKL 20 INOX Rated heat power Q Rated heat output Q 16,7 Rated air output V 45 K / 1,2 kg/m³) m³/h 1050 Pessure p max. complete Fuel Heating oil EL Oil throughput m max. kg/h 1,52 Oil nozzle (Danfoss/Steinen) 0,45 / 60°S... -
Page 13: Wiring Diagram
Wiring Diagram Power supply: 230 V / 1~, N, PE Fan motor: 230 V / 1~, N, PE Burner motor: 230 V / 1~, N, PE Capacitor (Fan) An easily accessible emergency switch must be at- tached in the setup room, but not close to hazardous Control lamp, green (in operation) areas. -
Page 14: Exploded View
Exploded View We reserve the right to make modifications in dimensions and construction in the interests of technical progress. -
Page 15: Spare Part List
Spare Part List Description Ref.-No. Blow-out cone cpl. 289172 Blow-out grille 1108154 Safety temperature limiter (STB) 1101197 Temperature monitor (TW) 1103146 Combustion chamber, cpl. 1103158 Middle plate 1103151 Operating switch 1101188 Control lamp, green (in operation) 1105514 Control lamp, red (burner malfunction) 1105363 , control panel 1103147... -
Page 16: Oil Burner Assembly
Oil Burner Assembly The supplied burner flange 1 which is attached with 4 1. Hold the assembly base plate horizontally. screws is used to mount the oil burner. 2. Slide the right mount laterally into the suspension and hang the left side into the top of the lug. Setting ignition electrode and stabilising disk 1. -
Page 17: Service And Guarantee
For the guarantee to be valid, the customer must com- pletely fill out the “guarantee certificate” enclosed with all heating units and send it back to REMKO GmbH & Co. KG in a timely manner after purchasing of the unit and putting it into operation. -
Page 18: Maintenance Log
Maintenance Log Model: : ........ Model No.: : ........Burner : ........ Burner No.: : ........9 10 11 12 13 14 15 16 17 18 19 20 Clean unit -surface- Clean unit -interior- Clean fan Clean combustion chamber Clean heat exchanger Clean/replace waste gas suppressor Replace seals -inspection cover- Replace seals –burner-... - Page 20 REMKO GmbH & Co. KG Klima- und Wärmetechnik D-32791 Lage Im Seelenkamp 12 • D-32777 Lage PO Box 1827 • Phone +49 5232 606 - 0 +49 5232 606 260 E-Mail info@remko.de Internet www.remko.de...
